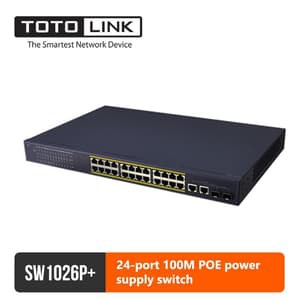

TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink

Merek: Totolink | Lihat selengkapnya produk Komputer & Aksesoris dari Totolink
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Network Online Official ShopLihat semua produk Komputer & Aksesoris oleh Network Online Official Shop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink

Power over Ethernet
PoE IEEE 802.3af-compliant Power over Ethernet
Parameter PoE Maximum PoE power output of each port is 15.4 W
Power Mode PoE through pin:1 2 4 5 +，3 6 7 8 -
Power Distance Up to 100 meters
Interface Performance
PoE Interface Port：RJ45
Port data rate：24×100Mbps+2×1000Mbps
Cable Type：Standard CAT5 UTP or higher
Transmission Distance：100 Meters
Optical Interface Optical Interface：SFP
Data rate：1.25Gbps
Lightwave：1310/1550nm
FiberType：Multi-Mode62.5/125µm and Single-Mode8.3/125µm
Transmission Distance：Multi-Mode 550m and Single-Mode10/40/80Km
Standard&Protocol IEEE 802.3 i 10 BASE-T;
IEEE 802.3 U 100 BASE-T;
Packet forwarding rate：1.2Mpps(9 ports)
IEEE 802.3 ab/z 1000 BASE-TX;
IEEE 802.3 x Flow Control;
IEEE 802.3 af/at Power over Ethernet
Performance Store and Forward
Bandwidth/Backplane：8.8G
Transmission Mode：Full duplex/Half duplex
Addressing：48-bit MAC address
MAC address entries:3K MAC
Network delay：For data transmission from 100Mbps to 100Mbps,the latency of 64 data frames is not more than 20 microseconds
MTBF：100,000 hours
Manage by WEB browser interface
LED Indicator Link/Act, PoE Status,System, Power

Gambar produk

TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink
TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink
Lihat lebih banyak informasi produk
