TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink

Detail TOTOLINK SW1026P Switch 10/100Mbps POE 24-Port + 2 Uplink

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

Power over Ethernet
PoE IEEE 802.3af-compliant Power over Ethernet
Parameter PoE Maximum PoE power output of each port is 15.4 W
Power Mode PoE through pin:1 2 4 5 +，3 6 7 8 -
Power Distance Up to 100 meters
Interface Performance
PoE Interface Port：RJ45
Port data rate：24×100Mbps+2×1000Mbps
Cable Type：Standard CAT5 UTP or higher
Transmission Distance：100 Meters
Optical Interface Optical Interface：SFP
Data rate：1.25Gbps
Lightwave：1310/1550nm
FiberType：Multi-Mode62.5/125µm and Single-Mode8.3/125µm
Transmission Distance：Multi-Mode 550m and Single-Mode10/40/80Km
Standard&Protocol IEEE 802.3 i 10 BASE-T;
IEEE 802.3 U 100 BASE-T;
Packet forwarding rate：1.2Mpps(9 ports)
IEEE 802.3 ab/z 1000 BASE-TX;
IEEE 802.3 x Flow Control;
IEEE 802.3 af/at Power over Ethernet
Performance Store and Forward
Bandwidth/Backplane：8.8G
Transmission Mode：Full duplex/Half duplex
Addressing：48-bit MAC address
MAC address entries:3K MAC
Network delay：For data transmission from 100Mbps to 100Mbps,the latency of 64 data frames is not more than 20 microseconds
MTBF：100,000 hours
Manage by WEB browser interface
LED Indicator Link/Act, PoE Status,System, Power

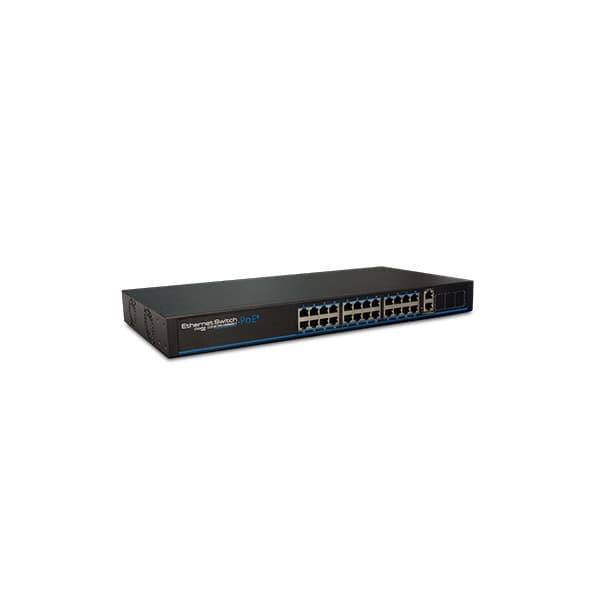

Gambar produk
