Totolink S505 5-Port 10/100Mbps Desktop Switch

Detail Totolink S505 5-Port 10/100Mbps Desktop Switch

Spec:

- 5 port RJ45 yang dinegosiasikan 10 / 100Mbps.
- Mendukung kontrol aliran IEEE 802.3x untuk mode Full Duplex dan backpressure untuk mode Half
Duplex.
- Desain plastik mini mendukung penempatan desktop atau pemasangan dinding.
- 1K entri alamat MAC tabel dan alamat otomatis belajar.
- Auto-MDI / MDIX menghilangkan kebutuhan akan kabel crossover.
- Skema switching Store dan Forward.
- Lakukan kecepatan kabel penuh tanpa henti.

Features:
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
Interfaces 5*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply 5V DC/0.6A
Dimensions(L x W x H) = 3.3 x 2.1 x 1.0in (84 x 54 x 25mm)
LED Indicators 1* Power, 5*LANs
MAC Address Learning Auto-learning, auto update
MAC Address Table 1K

Network Media
10BASE-T: UTP Cat 3 or above cable
100BASE-TX: UTP Cat 5, 5e or above cable

Backup Bandwidth 1Gbps
Transfer Method Store-and-Forward

Package included:
S505 Desktop Switch *1
Power Adapter
Ethernet Cable *1
Quick Installation Guide *1

Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Garansi 3 tahun!

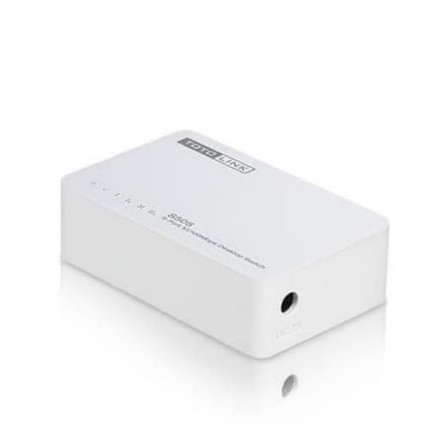

Gambar produk
