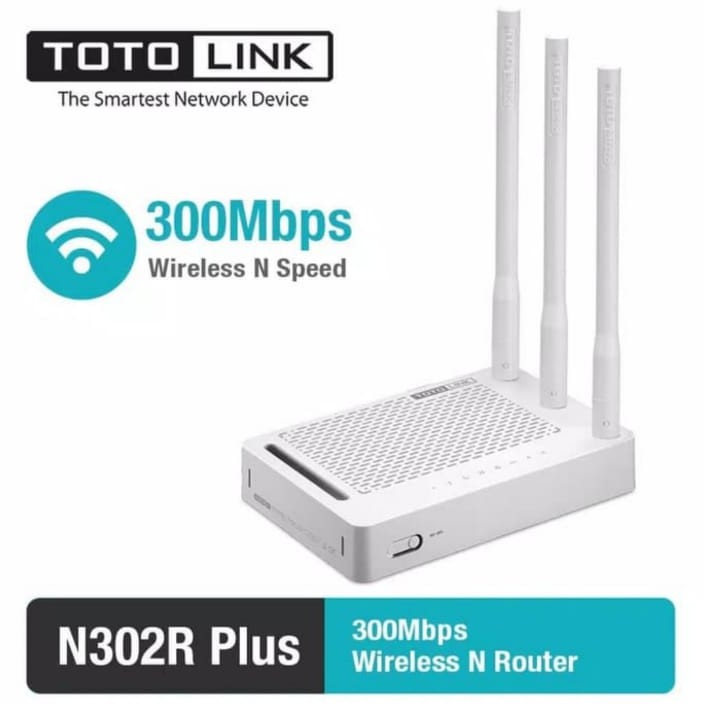

Totolink N302R Plus 300mbps Wireless and Router

Detail Totolink N302R Plus 300mbps Wireless and Router

Garansi resmi 3 tahun


N302R Plus
300Mbps Wireless N Router

- Kecepatan Nirkabel 300Mbps
- Performa Nirkabel Nirkabel
- Setup Mudah
- Nikmati IPTV Anda
- Kontrol Bandwidth Posisi dengan QoS
- Beberapa Jaringan Nirkabel untuk Kontrol Akses
- Keamanan Lanjutan
- Bimbingan orang tua

Hardware Features:

Interfaces
4 *10/100Mbps LAN Ports
1 *10/100Mbps WAN Port

Power Supply 9V DC/0.5A
Button 1 *RST/WPS Button
LED Indicators 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
Antenna 3 *5dBi fixed antennas

Dimensions (L x W x H) 5.7 x 3.8 x 1.0 in. (144.0 x 95.4.0 x 25.0 mm)

Wireless Features:
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency 2.4~2.4835GHz

Data Rate:
802.11n: Up to 300Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to11Mbps (dynamic)
EIRP < 20dBm

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity
270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER

Software Features
Operation Mode:
Wireless ISP Client Router
Wireless Client
Repeater(Range Extender)
Router
Bridge with AP
Client

Network VLAN, IPv6
WAN Type DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP
Wireless Functions Multiple SSID, MAC Authentication, Universal Repeater, WDS,WPS
Schedule Reboot Schedule, Wireless Schedule
Firewall MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
Management Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control

Environment:
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents:
N302R Plus Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
