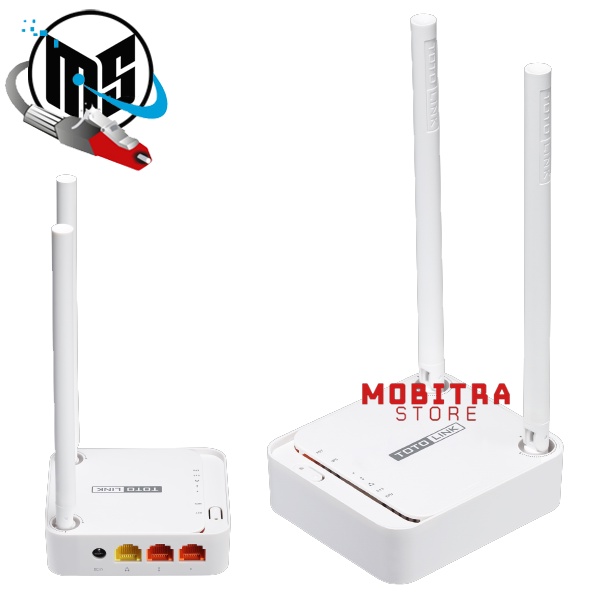

Totolink N200RE 300Mbps Mini Wireless N Router | N200 RE

Detail Totolink N200RE 300Mbps Mini Wireless N Router | N200 RE

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Hardware

Interface
- 2 * 10/100Mbps LAN Ports

- 1 * 10/100Mbps WAN Port

Power Supply - DC 9V/0.5A
Button - 1 * RST Button
- 1 * WPS Button

LED Indicator
- 1 * CPU,

- 1 * Wireless,

- 1 * WAN,

- 2 * LAN

Antenna - 2 * 5dBi Fixed Antennas
Dimensions (L x W x H) - 3.6 x 3.1 x 1.0 in. ( 91 x 80 x 25 mm)
Wireless

Standards
- IEEE 802.11n,

- IEEE 802.11g,

- IEEE 802.11b

RF Frequency
- 2.4~2.4835GHz

Data Rate
- 802. 11n: Up to 300Mbps

- 802.11g: Up to 54Mbps (dynamic)

- 802.11b: Up to11Mbps (dynamic)

EIRP
- < 20dBm

Wireless Security - 64/128-bit WEP, WPA/WPA2 and WPA-Mixed
Reception Sensitivity
- 270M: -61 dBm@10% PER

- 135M: -65 dBm@10% PER

- 54M: -68 dBm@10% PER

- 11M: -85 dBm@8% PER

- 6M: -88 dBm@10% PER

- 1M: -90 dBm@8% PER


Software

Operation Mode

- Gateway Mode

- Repeater Mode

- AP Mode

- WISP Mode

Network
- Static DHCP Setting,

- IPTV

WAN Type

- Static IP,

- DHCP,

- PPPoE/Russia PPPoE,

- PPTP/Russia PPTP,

- L2TP/Russia L2TP

Wireless Functions

- Multiple SSID,

- Access Control, WDS, WPS

Schedule
- Reboot Schedule

- Wireless Schedule

QoS
- QoS Setup,

- Connect Limit Control

Firewall

- MAC Filtering,

- IP/Port Filtering,

- URL Filtering,

- Virtual Server(Port Forwarding),

- DMZ

System

- Upgrade Firmware,

- Save/Reload Settings,

- Time Zone Settings,

- DDNS,

- Denial-of-Service,

- TR-069 Config,

- Password Settings,

- System Log, and more

Others

Package Contents
- N200RE Wireless Router *1

- Power Adapter *1

- Ethernet Cable *1

- Quick Installation Guide *1

Environment - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
