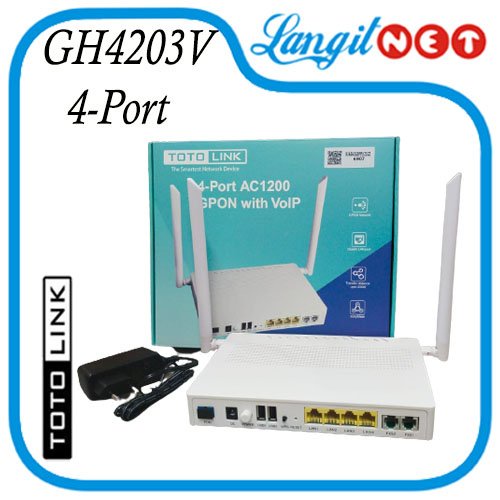

TOTOLINK GH4203V 4 Port AC1200 GPON with VoIP

Merek: Totolink | Lihat selengkapnya produk Komputer & Aksesoris dari Totolink
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > TOTOLINK GH4203V 4 Port AC1200 GPON with VoIP
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Langitnet NetworkLihat semua produk Komputer & Aksesoris oleh Langitnet Network
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail TOTOLINK GH4203V 4 Port AC1200 GPON with VoIP

POSTEL : 83636/SDPPI/2022

4-Port AC1200 GPON with VoIP
Model : GH4203V
Hardware :
GPON Standards
- IITU-T G.984.X
- ITU-T G.988(OMCI)
Interface :
- 1 x SC/UPC GPON Port
- 4 x 10/100/1000Mbps LAN Port
- 2 x FXS Port
- 2 x USB20. Port
Button :
-1 *Reset button
-1 *WPS button
Working wavelength : PON:TX1310nm,RX1490nm;
The light emitting power : 1 ~ 4dBm
The light receiving sensitivity : -27dBm
Power : DC12V 1.5A

Wireless :
Standards : IEEE802.3ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency : 2.4GHz,5GHz
Data Rate :
- 11n: up to 300Mbps
- 11ac:up to 867Mbps
EIRP : 20dBm
Reception Sensitivity :
- 5GHz
- 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm
- 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,
- 11n HT20: -72dBm, 11n HT40: -71dBm
- 2.4GHz
- 11g 54M: -77dBm
- 11n HT20: -74dBm, 11n HT40: -72dBm

Software :
WAN Type : Dynamic IP/Static IP/PPPoE
DHCP : DHCP Server, Client, DHCP Client List, Address Reservation
LAN : Supports the IPv4/v6 dual stack.
QOS :
- Supports three queue scheduling modes (PQ, WRR and PQ+WRR)
- Provides abundant QoS functions;
- Supports the ACL function
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
VOIP Features :
-Multiple voice codec
-Echo Cancelling, VAD, CNG
-Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
-MEGACO v2 (H.248)
Multicast :
-Supports IGMP v1/v2/v3.
-Supports filtering and forwarding of multicast MAC addresses.
USB :
-Support SMABA
-Support DLNA
Security :
-Supports the firewall.
-Supports MAC filtering.
-Supports filtering URL addresses.
Management :
-Supports TR-069.
-Supports management of the OMCI configuration and queries.
-Access Control
-Local Management

Other :
Package Contents :
-1 x GPON Router
-1 x Quick Installation Guide
-1 x Power Adapter
-1 x Ethernet Cable
Environment :
- Operating Temperature: 0~50 (32 ~122)
- Storage Temperature: -40~70 (-40 ~158)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

Gambar produk

TOTOLINK GH4203V 4 Port AC1200 GPON with VoIP
TOTOLINK GH4203V 4 Port AC1200 GPON with VoIP
