TOTOLINK CAP1200-POE Wireless Dual Band Celling Mount Access point

Detail TOTOLINK CAP1200-POE Wireless Dual Band Celling Mount Access point

-Menghadirkan kecepatan hingga 1200Mbps (5GHz 867Mbps + 2.4GHz 300Mbps).
-Sesuai dengan standar Wi-Fi 802.11ac.
-802.3af / sesuai PoE yang sesuai untuk penerapan sederhana dan biaya rendah.
-Menangani hingga 128 koneksi Wi-Fi secara bersamaan.
-Dua opsi, manajemen perangkat lokal dan kendali pusat AC jarak jauh, tersedia.
-Menyediakan WEP, WPA, dan WPA2 64/128-bit.
-Mendukung banyak SSID, WDS, Universal Repeater, dan Wireless Scheduler.

Interface 1 *1000Mbps PoE port (Auto MDI/MDIX)
Power Supply IEEE 802.3af/at compliant PoE
Button 1 *Reset button
LED Indicators 1 * SYSTEM LED (three colors)
Antenna 4 *Internal Antennas
Dimensions (D x H) 9.6 x 2.2 in. (245 x 55 mm)

Standards IEEE 802.11ac, IEEE 802.11a IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RF Frequency 2.4GHz/5GHz
Data Rate 5GHz: 866Mbps
2.4GHz: 300Mbps
EIRP 2.4GHz < 20dBm
5GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA and WPA2

Reception Sensitivity:
- 2.4G
11b:<-81dbm
11g：<-68dbm
11n: HT20 < -65dBm, HT40 < -62dBm
- 5G
11a: -68dBm
11ac: -51dBm
11n: HT20 < -65dBm, HT40 < -62dBm
Software Features

Operation Mode Bridge Mode
Repeater Mode

Network:
LAN Status
LAN Setting

Cloud AC Bind

Wireless:
Wireless Status
Basic Setting
Multiple APs
MAC Authentication
WDS Setting
Advanced Setting

Management:
System Log
Administrator Setup
Firmware Upgrade
System Time
Configuration backup/restore
Misc Setup

Environment:
Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents:
AC1200 Wireless Dual Band Ceiling Mount AP * 1
Quick Installation Guide *1

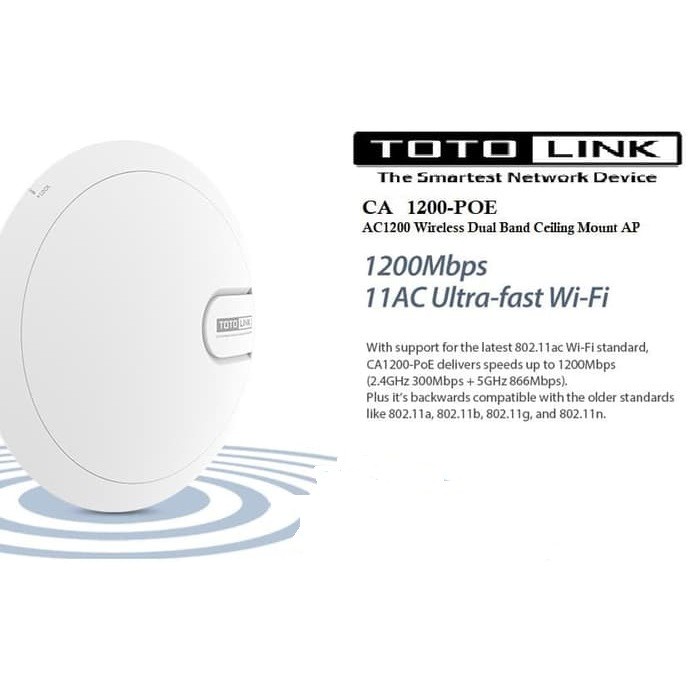

Gambar produk
