TOTOLINK CA1200-POE | AC1200 Wireless Dual Band Ceiling Mount AP

Detail TOTOLINK CA1200-POE | AC1200 Wireless Dual Band Ceiling Mount AP

Hardware Features
Interface 1 *1000Mbps PoE port (Auto MDI/MDIX)
Power Supply IEEE 802.3af/at compliant PoE
Button 1 *Reset button
LED Indicators 1 * SYSTEM LED (three colors)
Antenna 4 *Internal Antennas
Dimensions (D x H) 9.6 x 2.2 in. (245 x 55 mm)
Wireless Features
Standards IEEE 802.11ac, IEEE 802.11a IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RF Frequency 2.4GHz/5GHz
Data Rate 5GHz: 866Mbps
2.4GHz: 300Mbps
EIRP 2.4GHz < 20dBm
5GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA and WPA2
Reception Sensitivity
2.4G 11b:<-81dbm
11g：<-68dbm
11n: HT20 < -65dBm, HT40 < -62dBm
5G 11a: -68dBm
11ac: -51dBm
11n: HT20 < -65dBm, HT40 < -62dBm
Software Features
Operation Mode Bridge Mode
Repeater Mode
Network LAN Status
LAN Setting
Cloud AC Bind Cloud AC Bind
Wireless Wireless Status
Basic Setting
Multiple APs
MAC Authentication
WDS Setting
Advanced Setting
Management System Log
Administrator Setup
Firmware Upgrade
System Time
Configuration backup/restore
Misc Setup
Package Contents AC1200 Wireless Dual Band Ceiling Mount AP * 1
Quick Installation Guide *1
Environment Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

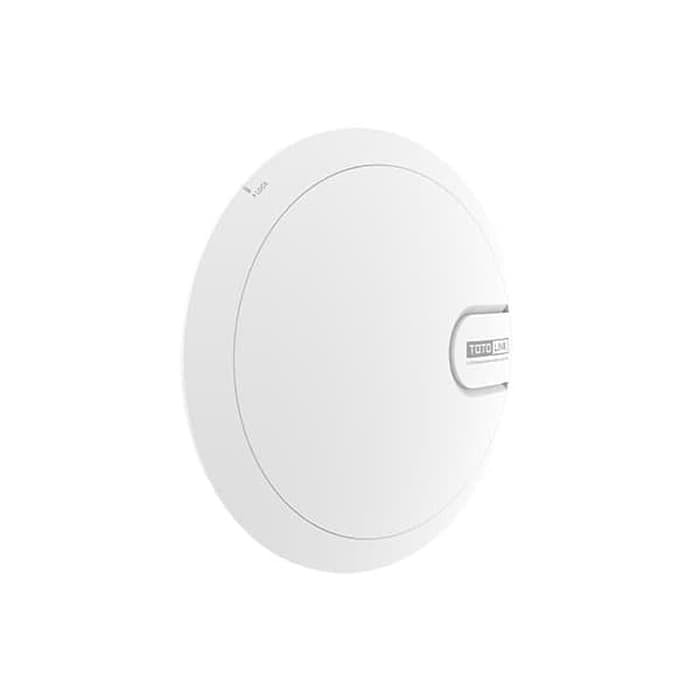

Gambar produk
