TOOLSET FIBER OPTIC FC 6S

Detail TOOLSET FIBER OPTIC FC 6S

VIDEO PRODUK : youtube.com/watch?v=DDmDUc0RFnc

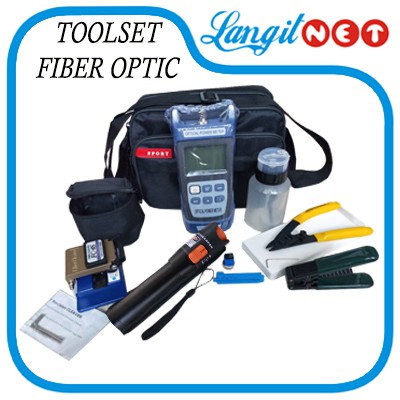

Package include:

1 x Carrying Bag of whole kits
1 x APM60T Optical Power Meter
1 x 5KM 5mW Visual Fault Locator(VFL)
1 x Fiber Cleaver FC-6S
1 x Bag for cleaver
1 X CFS-2 Fiber Optic Cable Stripper
1 x FTTH Drop Cable Stripper
1 x Alcohol bottle
1 x Fixed length rail
3 x Small Allen Wrench
Send SC transfer connector * 1
Send Ceramic core * 1

APM60T Optical Power Meter Features:

1.Self calibration 2.More than 48 hours continuous working time 3. Linear Display (mW) and Logarithmic display (dBm) show on the same screen 4.Support for FC/SC/ST interface and quick switch 5.Auto switch

APM60T Optical Power Meter Specifictions:

1.Model: APM60T 2.Measuring range: -70~+6dbm 3.Accuracy: ± 2% 4.Linear: ± 0.02dB 5.Display accuracy: + 6 ~ -60dBm (0.01dB) / Other (0.1dB) 6.Optical Connector: 2.5mm Universal Interface 7.Standard wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm 8.Detector type: InGaAs 9.Response Wavelength: 700 ~ 1700nm 10.AA battery *2 , If you connect a USB power source, you must use a rechargeable battery, otherwise it may cause burning or explosion. 11.Battery life:> 160H 12.Operating temperature: -10 ~+ 50 ℃ 13.Size: 105 * 52 * 34mm

Visual Fault Locator Specification:

1. Output wavelength:650nm 2. Output light power: 1mW 3. Optical connector: universal connector 4.Operating temperature:-10~+60℃ 5. Storage temperature: -20~+70℃ 6. Power supply: 2 x AA batteries(battery not included) 7. Housing material : Aluminum alloy 8. Applicable to light soldering: SM/MM 9. Product size : 26*175mm 10. Dynamic Distance : 1km

FC-6S Fiber Cleaver Specification:

1.Applicable bare wire diameter: 125μm 2.Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line 3.Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm) 4.Size: 63 * 76 * 63mm 5.Weight: 380g

Miller clamp CFS-2 Specification :

1. A 250 [mu] m coating for stripping 125 [mu] m fibers 2. The top 1.98mm opening can be used to peel the outer jacket of the pigtail 3. The V-shaped opening on the jaw blade and the opening of 140 m can be used for stripping the 250 m coating of the 125 m fiber 4. The jaws are factory calibrated, and no adjustment is necessary 5. Will not damage the fiber 6. All cutting sections have precision mechanical tolerances to ensure a clean, smooth operation 7. According to ergonomic design of the handle, grip comfort 8. When not in use, the knife lock is closed

Wire Stripper Specification

1. Scope: 3.1 x 2.0 mm drop cable 2. Fiber diameter: 125μm 3. Tight cladding diameter: 250μm 4. Fiber optic cable cores 1-2 5. Shaver gluten can Material: plastic & metal core stiffener 6. Operating temperature: -20 ~ + 45

Wire Stripper Features

1. Also applies to 2mm, 3mm indoor cable sheath stripping. 2. Adjustable blade depth to ensure that does not hurt the fiber. 3. Lateral two straight blade vertical a circular blade. 4. Transversely cut, also cut lengthwise slide 5. Lig

Gambar produk
