Detail Tool 220v REX C-100 DIGITAL PID TEMPERATURE CONTROLLER C100 C 100 control
Selamat Datang di HANSARANG.ID hanya dapat rex c100 saja, tanpa thermocouple ********* ouputnya RELAY ****** REX C100 TEMPERATURE CONTROLLER (REX-C100 FK02-M*EN) adalah modul controller/thermostat digital untuk mengendalikan ON/OFF nya pendingin ruangan (AC), pemanas (Heater), mesin penetas telur dan alat pendingin/pemanas lainnya. -- Probe Sensor Thermocouple yang compatible (K,J,S,E,R,B,N,T,PT100) **Spesifikasi: Model: REX-C100 Temperature Controller Kit Measuring accuracy: 0.5% FS Cold-end compensation tolerance: ~2C (can be modified by software in 0~50C) Resolution: 14 bit Sampling cycle: 0.5 Sec Power supply: 220V AC Indicator Process value (PV), Setting value (SV) Output, alarm and self-tuning: LED PIN control: Self-tuning (including ON/OFF, step-type PID and continuous PID) Relay output: contact capacity 250V AC 3A (resistive load) Alarm function output: 1 way Contact capacity of output: 250V AC 3A (resistive load) Setting value (SV): identical to measuring range (PV) Integral time (I) and Derivative time (D) : 0 ~ 3600 sec (No integral action when set to 0) Heat-reset proportional cycle: 1 ~ 100 sec Detective temp range: 0 to 400C Power consumption: 10 VA Thermocouple type: K,J,S,E,R,B,N,T,PT100 Size: 48x48x110mm Probe Sensor Suhu Thermocouple Type K, sebagai sensor untuk mendeteksi suhu 0-400C dan banyak dipakai pada thermostat, thermometer, sensor dan berbagai pengendali suhu lainnya. **Spesifikasi: Model: Thermocouple Type K Temperature Range: 0-400C (32-752F). Thread Diameter: M6 Total Length: 0.5M Connector: Spade Type Internal Insulation: Fibreglass External Shielding: Stainless Steel Braiding **Kelengkapan: 1pcs REX C100 Controller 1lbr User Manual

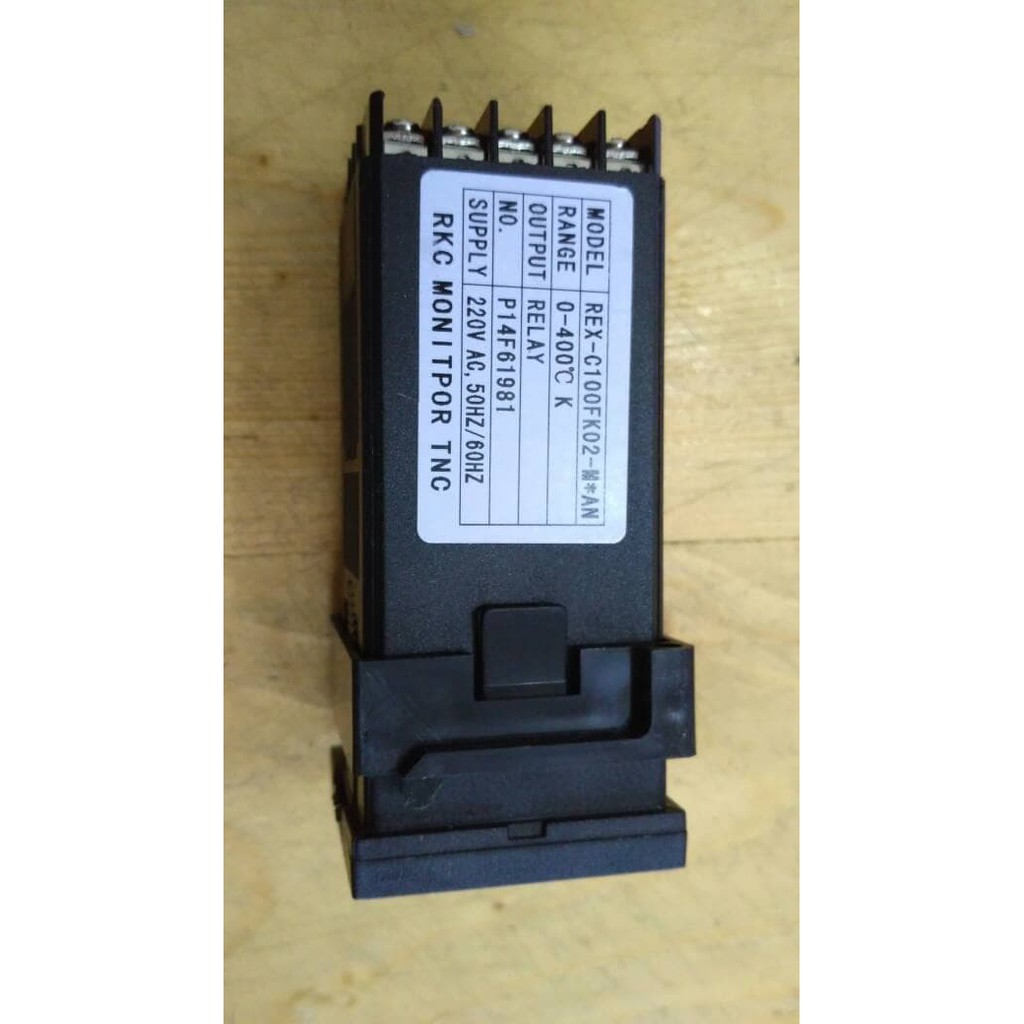

Gambar produk
Tool 220v REX C-100 DIGITAL PID TEMPERATURE CONTROLLER C100 C 100 control
