Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock

Elektronik > Elektronik Lainnya > Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:BEST A&YLihat semua produk Elektronik oleh BEST A&Y
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock

Harga per biji

Tekan 1x on, tekan 1x off ( tidak terkunci )

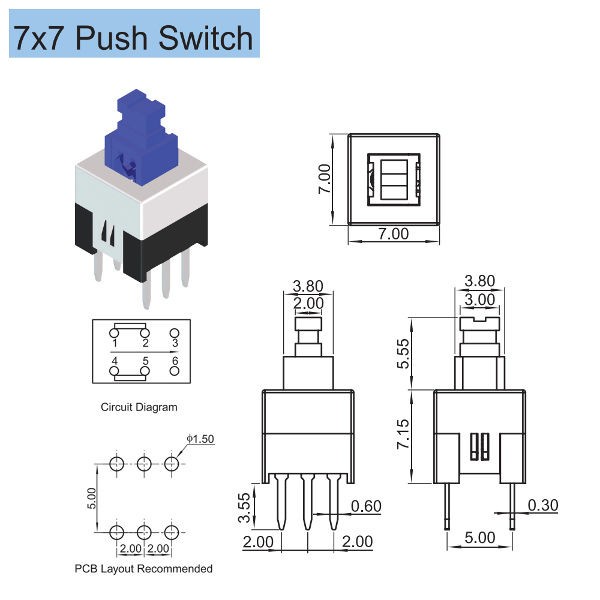

* Spesifikasi :
1. Product Name : Micro Switch ON-OFF
2. PIN: 6Pin
3. Version: self-locking / no lock
4. Switch Size: 7X7mm
5. Operating Temperature Range：-40°C-70°C
6. Rated Load：DC12V 0.1A
7. Contact Resistance: ≤200MΩ
8. Withstand Voltage: AC250V(50Hz）/min
9. Pressure Resistance：250±50g
10. Isolated Electronics: ≥100MΩ
11. Service Life: 10000 times

Gambar produk

Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Tombol Self Lock Saklar Switch Push Button On Off 7 x 7 Mm 6 Pin Kaki Self Locking No Lock
Lihat lebih banyak informasi produk
