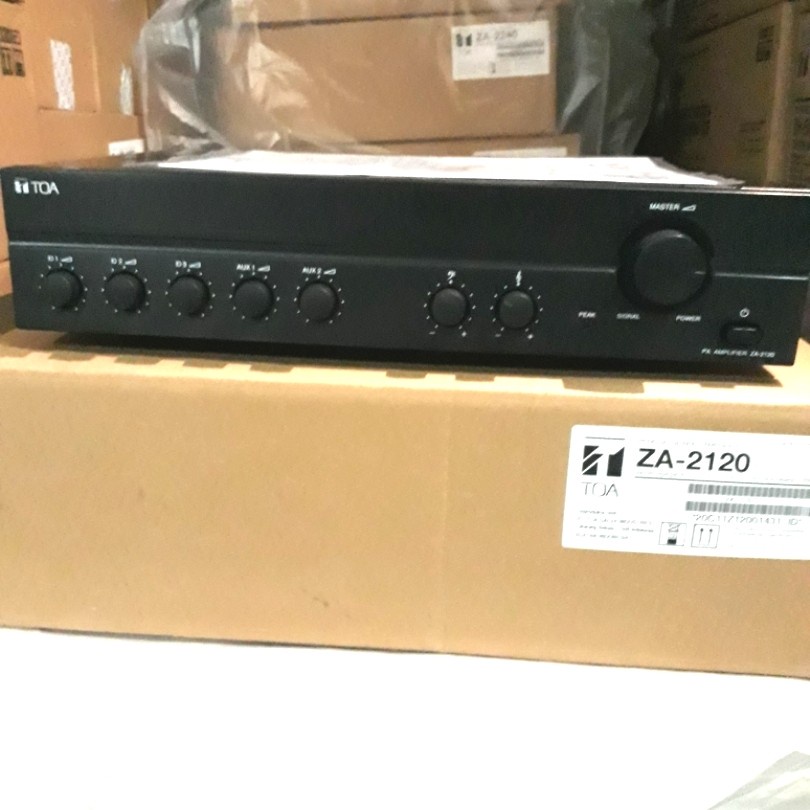

TOA ZA 2120 original (120 - 180 watt) AMPLIFIER ZA2120

Detail TOA ZA 2120 original (120 - 180 watt) AMPLIFIER ZA2120

The ZA-2120 is a high cost-performance power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.



Power Source 220 - 240 V AC, or 24 V DC

Rated Output 120 W

Power Consumption 124 W (AC operation EN60065),

8 A (DC operation at rated output)

Frequency Response 50 - 20,000 Hz (3 dB)

Distortion Less Than 1% at 1 kHz, 1/3 rated power

Input MIC 1 - 3: -60 dB* (1.0 mV), 600 , balanced, phone jack

AUX 1,2: -20 dB* (100 mV), 10 k, unbalanced, RCA pin jack

Output Speaker out: Balanced (floating)

High impedance: 83 (100 V), 42 (70 V)

Low impedance: 4 (22 V)

Rec out: 0 dB* (1.0 V), 600 , unbalanced, RCA pin jack

Phantom Power DC +21 V (MIC 1)

S/N Ratio More Than 60 dB

Tone Control Bass: 10 dB at 100 Hz

Treble: 10 dB at 10 kHz

Muting MIC 1: Mutes other input signals by 0 - 30 dB attenuation

Indicator Power LED, signal LED, peak LED

Finish Panel: ABS resin, black

Case: Steel plate, black

Dimensions 420 (W) 101 (H) 360 (D) mm (16.5" 4.0" 14.2")

Weight 10.8 kg

Produk ini sudah bergaransi resmi dari TOA GALVA selama 1 tahun,kami pun akan menyertakan keterangan tk offline kami dalam produk yang anda beli untuk memudahkan anda dalam proses purna jual
selamat berbelanja...

Gambar produk
