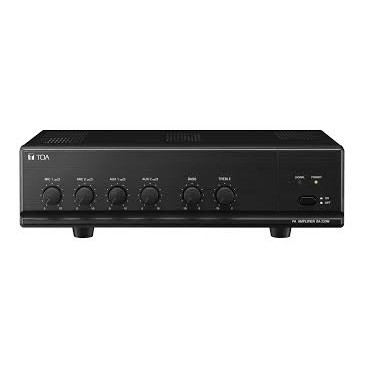

TOA Mixer Amplifier 30 Watt ZA 230W

Merek: TOA | Lihat selengkapnya produk Audio dari TOA
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > TOA Mixer Amplifier 30 Watt ZA 230W
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail TOA Mixer Amplifier 30 Watt ZA 230W

Power Source 240 V AC, 50 Hz
Rated Output 30 W
Power Consumption 34 W (AC operation at EN60065)
Frequency Response 50 Hz - 20 kHz
Distortion 1 % or less at 1 kHz, 1/3 rated power
Input MIC 1: -60 dB* (1.0 mV), 600 , Unbalanced, Equivalent to 5-pin DIN Type
MIC 2: -60 dB* (1.0 mV), 600 , Unbalanced, Equivalent to phone jack Type
AUX 1, 2: -20 dB* (100 mV), 10 k, unbalanced, RCA pin jack
Output Speaker out: Floating balanced
High impedance: 330 (100 V)
Low impedance: 4 (11 V)
S/N Ratio 60 dB or more (MIC 1, 2)
70 dB or more (AUX 1, 2)
Tone Control Bass: -10 dB at 100 Hz
Treble: -10 dB at 10 kHz
Muting MIC 1 overrides other Mic input and AUX inputs with 0 - 30 dB attenuation,
attenuation by switch
Indicator Power LED, Signal LED
Finish Panel: ABS resin, black Hair Line
Case: Steel plate, black
Dimensions 350 (W) 105 (H) 240 (D) mm (13.78" 4.13" 9.45")
Weight 3.5 kg (7.72 lb)
