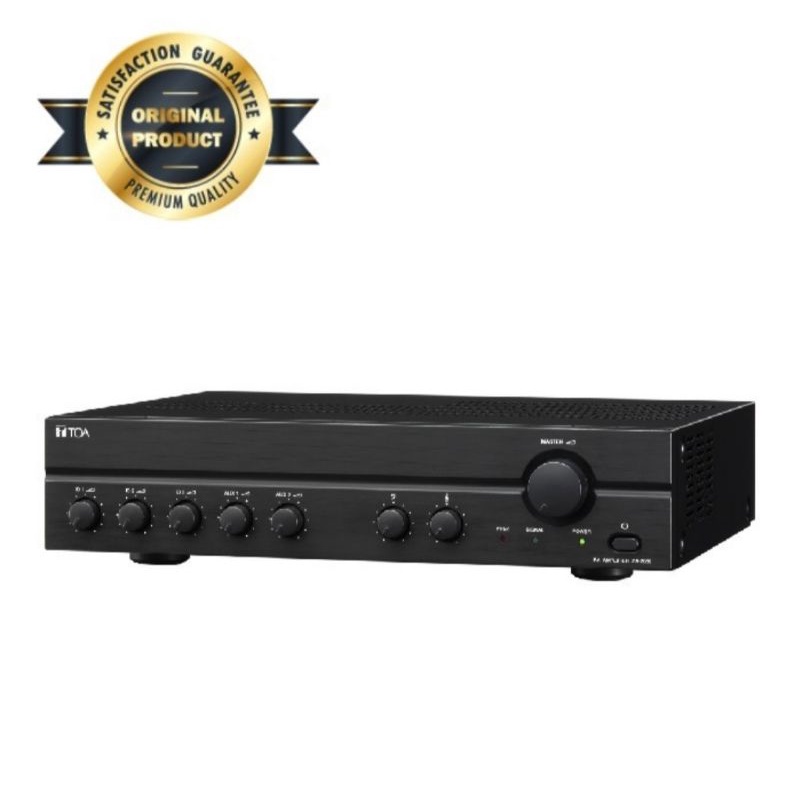

TOA Mixer Amplifier 30 Watt ZA 2030

Merek: TOA | Lihat selengkapnya produk Audio dari TOA
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > TOA Mixer Amplifier 30 Watt ZA 2030
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail TOA Mixer Amplifier 30 Watt ZA 2030

SPESIFIKASI:
Power Source 220 - 240 V AC, 24 V DC
Rated Output 30 W
Power Consumption 34 W ( EN60065) , 2 A ( DC operation at rated output)
Frequency Response 50 - 20, 000 Hz ( 3 dB)
Distortion 1% or less at 1 kHz, 1/ 3 rated power
Input MIC 1 - 3: -60 dB* , 600 , balanced, equivalent to XLR-3-31 type
AUX 1, 2: -20 dB* , 10 k , unbalanced, RCA pin jack
Mute: Contact screw terminal ( for MIC 1)
Output Speaker out: Balanced ( floating) , M3.5 screw terminal,
distance between barriers: 8.3 mm ( 0.33 " )
High impedance: 330 ( 100 V) , 170 ( 70 V)
Low impedance: 4 ( 11 V)
Rec out: 0 dB* , 600 , unbalanced, RCA pin jack
Phantom Power DC + 21 V ( MIC 1)
S/ N Ratio 60 dB or more
Tone Control Bass: 10 dB at 100 Hz
Treble: 10 dB at 10 kHz
Muting MIC 1 overrides other
