Detail TM70B PON Power meter + VFL + Optical Power Meter Optic Fiber Test

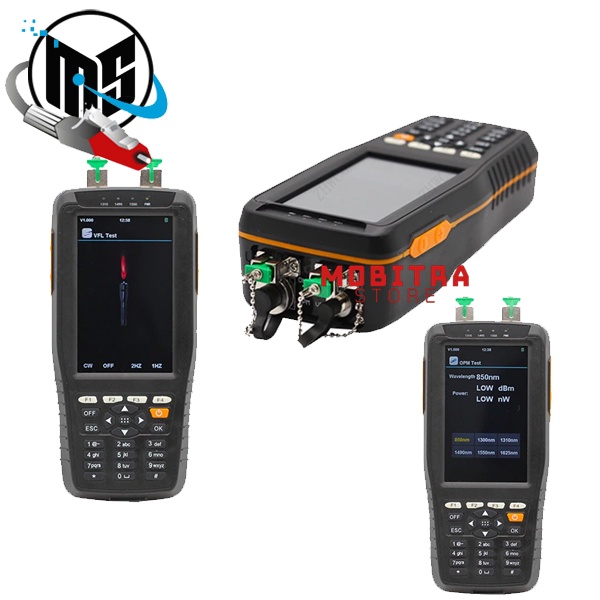

TM70B PON Power meter + 1MW VFL + Optical Power Meter Optic Fiber Test Tools"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"
Smallest, Lightest and Fastest
Simultaneously verifies the power levels of all wavelengths of PON (1310nm, 1490 nm and 1550 nm)
Pass/fail analysis helps user quickly interpret results and ensures consistent PON network turn-up
Dust and shock proof design
Auto shut off function
Reliable basic functions for the most economic test
Dimension: 16.5X10X5mm
8,10pcs measurement items can be saved in PON power meter or computer for data review.
Standard wavelengths
1310 (upstream)
1490 (downstream)
1550 (downstream)
Pass zone(nm)
1260~1360
1470~1505
1535~1570
Isolation @1310nm(dB)
+15 ~ -35 cw
+8 ~ - 30 bw
Isolation @1490nm(dB)
+10 ~ - 50
+10 ~ - 50
Isolation @1550nm(dB)
+25 ~ - 45
+25 ~ - 45
Accuracy
Uncertainty(dB)
±0.5
Polarization Dependent Loss (dB)
<±0.25
Linearity(dB)
±0.1
Through Insertion Loss(dB)
<1.5
Resolution
0.01dB
Unit
dBm/xW
