Detail TM1637 Module 4 Bits Digital Tube LED Display With Clock Display for Arduino
Hi #RekanEasyWare ...EasyWare Part#: EP001733

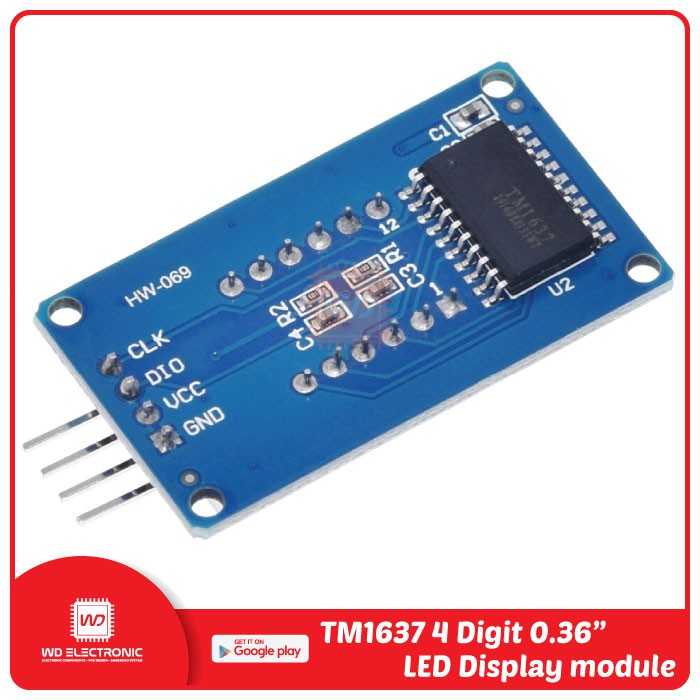

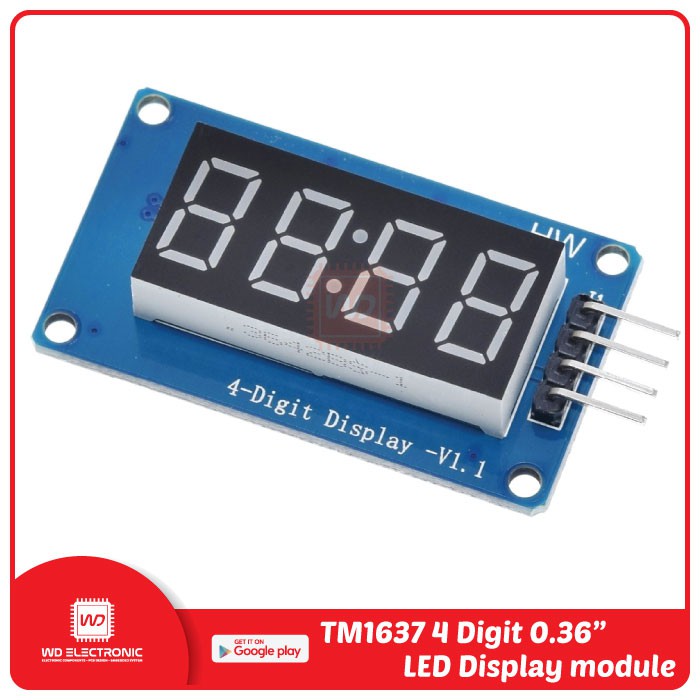

The module is a 12 foot with a clock point four common anode tube (0.36 in.) display module for driver TM1637; only two signal lines can make the MCU control 4 bits 8 digital tube.
FITUR DAN SPESIFIKASI :
- Supply voltage: 3.3V--5v DC
- Module current: 30--80MA (when 5V supply power)

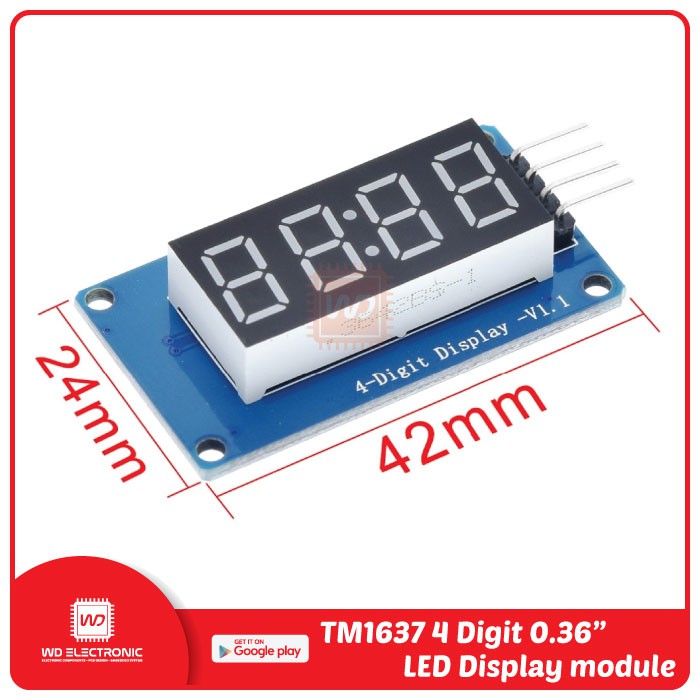

- Module size: Approx. 42 x 24 x 11mm / 1.65 x 0.94 x 0.43 inch (not include pin), 48 x 24 x 11mm /1.88 x 0.94 x 0.43 inch
- Control port: 4 common anode score points with 0.36 inches LED, red highlights
- Location hole: 4pcs M3 screw location hole, hole diameter: 2.2mm, the positioning of the module is easy to install, to achieve inter- module combination
KELENGKAPAN :
- 1pcs TM1637 0.36" 4-Digit Tube LED Segment Display Module Red Common Anode
