Detail TLP281 4 CHANNEL OPTOISOLATOR MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP001739

FITUR DAN SPESIFIKASI :
* Use of low level control high level
* Such as the use of single chip microcomputer 3V or 5V voltage 9V or 12V voltage control
* HVCC maximum not more than 24V
* Outlet OUT1 / OUT2 / OUT3 / OUT4 output current is equal to the largest HVCC / 5.1K, maximum absorption current 500mA
* Input: IN1 / IN2 / IN3 / IN4, SCM or for Arduino IO port
* GND with single-chip microcomputer or for Arduino board GND connection
* IN1 / IN2 / IN3 / IN4 respectively control the OUT1 / OUT2 / OUT3 / OUT4
* Output: OUT1 / OUT2 / OUT3 / OUT4
* Output: HVCC: Connection is control of high voltage anode
* HGND connection is control of high voltage anode

KELENGKAPAN :
* 1pcs TLP281 4-CHANNEL OPTOCOUPLER MODULE

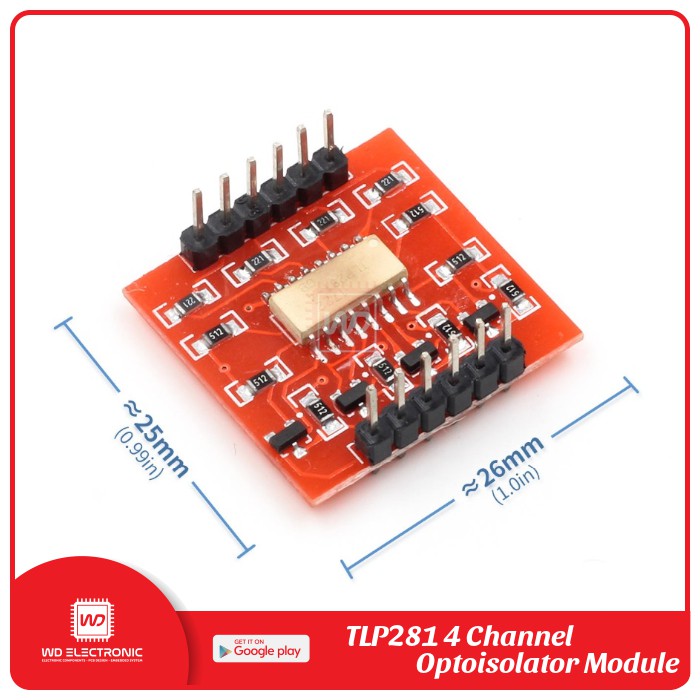

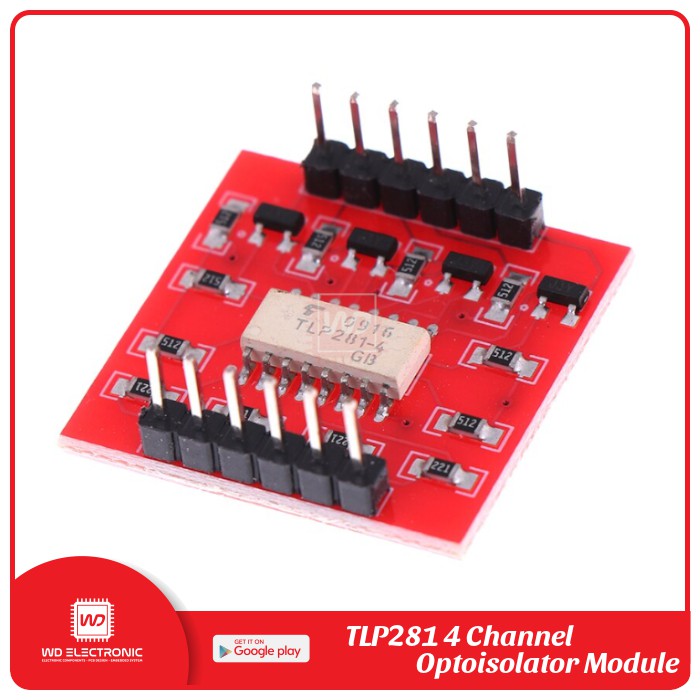

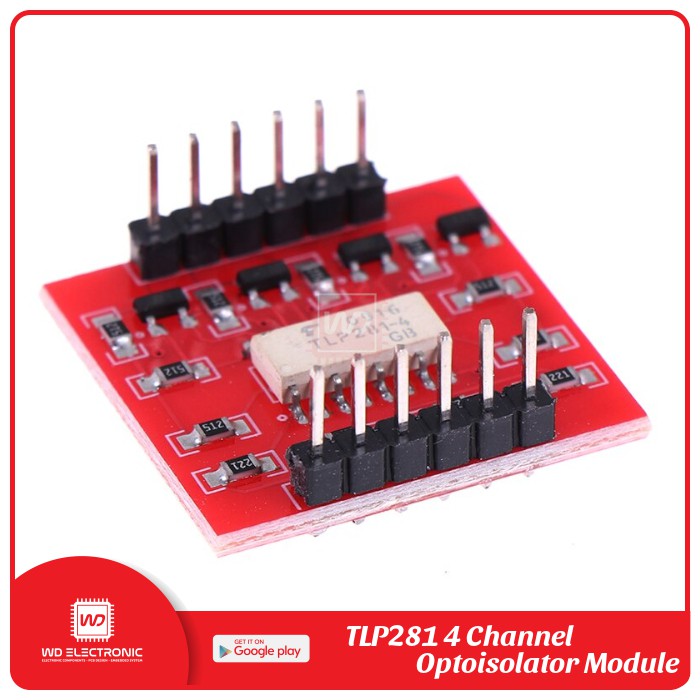

Gambar produk
