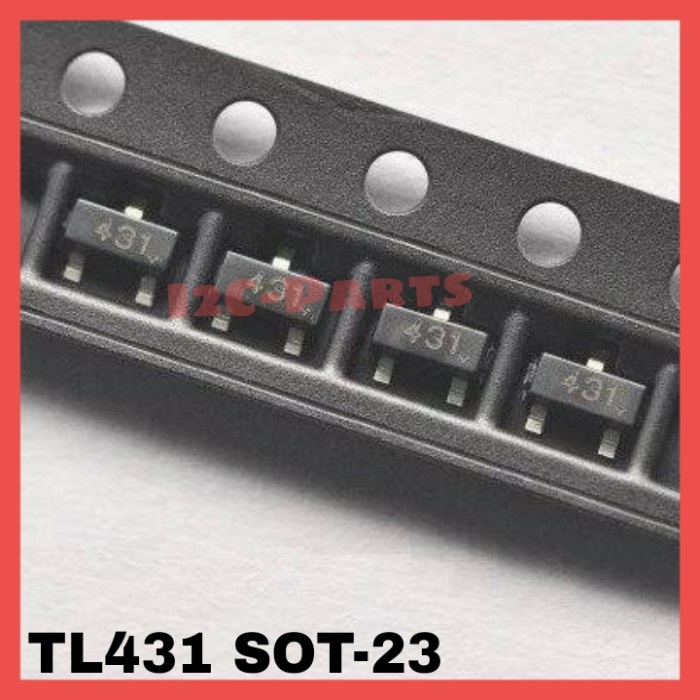

Detail TL431 SOT-23 Programmable Shunt Adjustable Regulator TL 431 TL431A SMD
TL431 SOT-23 Programmable Shunt Adjustable Regulator TL 431 TL431A SMDFeatures
Reference Voltage Tolerance at 25°C
1~ 2% (Standard Grade)
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to 125°C
• Typical Temperature Drift (TL43xB)
– 6 mV (C Temp)
– 14 mV (I Temp, Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
2 Applications
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator with Integrated Reference
