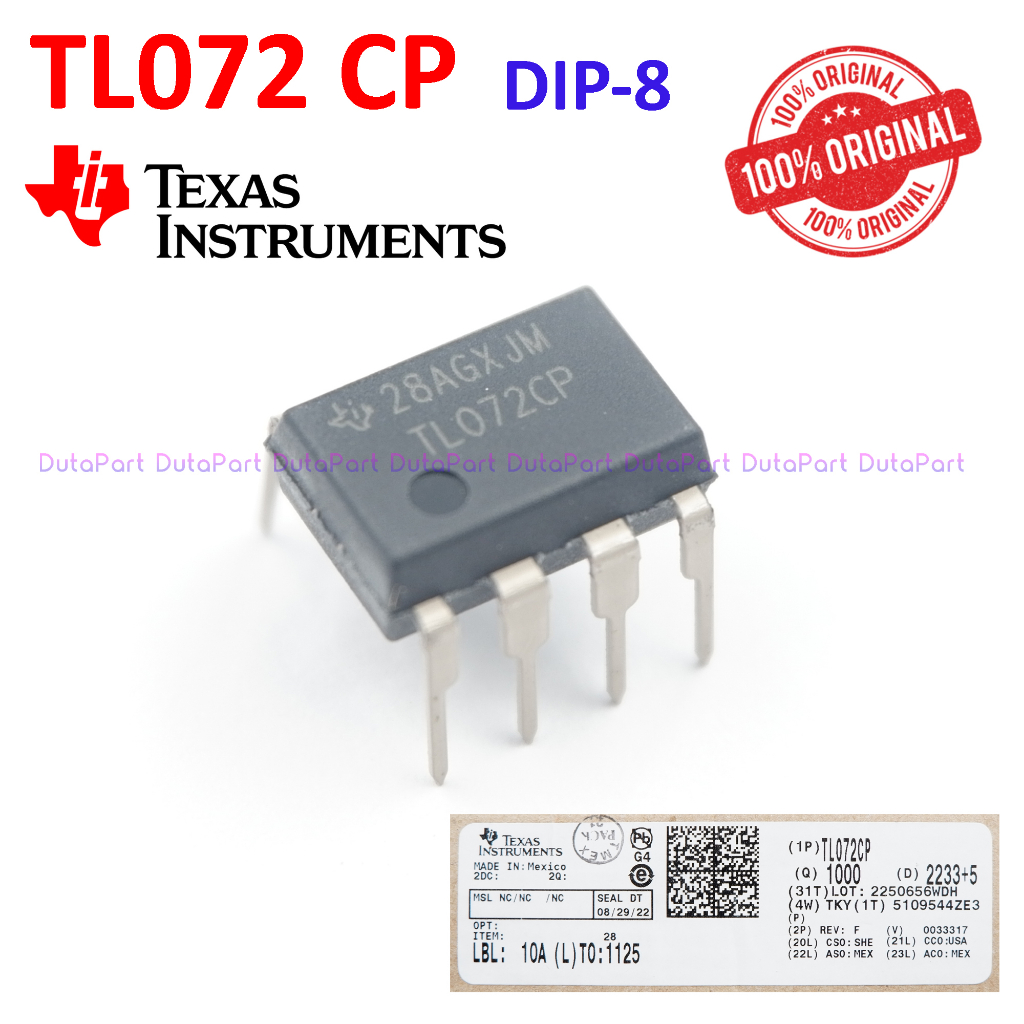

TL072 TL072CP ORIGINAL TEXAS INSTRUMENTS TL 072 CP Op Amps JFET DIP-8

Detail TL072 TL072CP ORIGINAL TEXAS INSTRUMENTS TL 072 CP Op Amps JFET DIP-8

TL072 TL072CP ORIGINAL TEXAS INSTRUMENTS TL 072 CP Op Amps JFET DIP-8

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

Barang sama/sesuai dengan foto diatas (Difoto oleh team toko kami).

ORIGINAL TEXAS INSTRUMENTS - MADE IN MEXICO

Spesifikasi :
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: Through Hole
Package / Case: PDIP-8
Number of Channels: 2 Channel
Supply Voltage - Max: 30 V
GBP - Gain Bandwidth Product: 3 MHz
Output Current per Channel: 10 mA
SR - Slew Rate: 13 V/us
Vos - Input Offset Voltage: 10 mV
Supply Voltage - Min: 7 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 200 pA
Operating Supply Current: 1.4 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 100 dB
en - Input Voltage Noise Density: 18 nV/sqrt Hz
Series: TL072
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 4.57 mm
In - Input Noise Current Density: 0.01 pA/sqrt Hz
Input Type: Rail-to-Rail
Length: 9.81 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3.5 V
Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers

Untuk pembelian grosir atau info seputar hal teknis dan lainnya, Hubungi kami via Chat
