TL-LINK TL-SF1008P: 8-port 10/100M Desktop PoE Switch sf1008p tplink sf1008

Detail TL-LINK TL-SF1008P: 8-port 10/100M Desktop PoE Switch sf1008p tplink sf1008

Dengan empat port PoE, transfer data dan daya pada satu kabel saja
Bekerja dengan IEEE 802.3af memenuhi persyaratan PD, memperluas jaringan rumah dan kantor
Tidak memerlukan konfigurasi dan instalasi.

SPESIFIKASI:
Interface 8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Consumption Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1008P, Power Adapter, User Guide
Consumption 2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

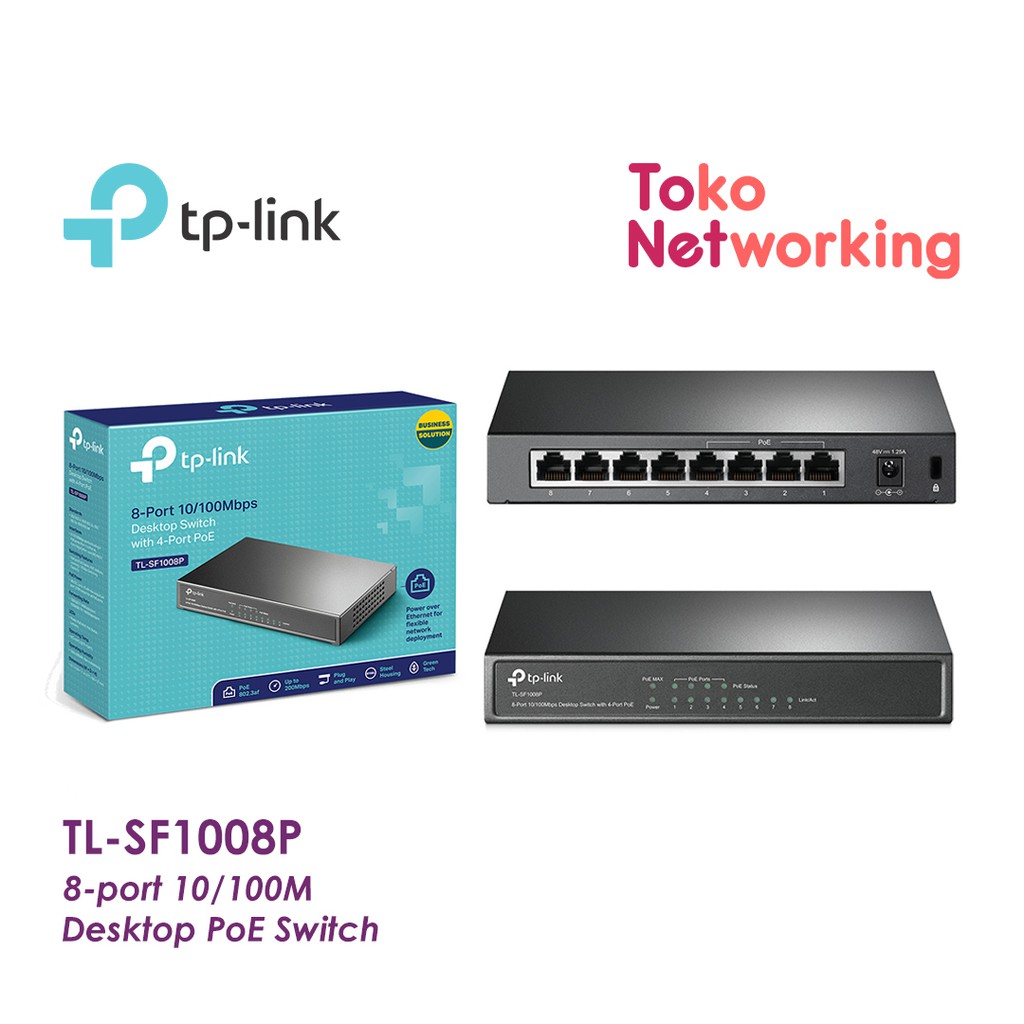

Gambar produk
