Tipe UT202A+ / UT-202A+ Tang Ampere / Clamp Meter AC UNI-T

Detail Tipe UT202A+ / UT-202A+ Tang Ampere / Clamp Meter AC UNI-T

Tang Ampere / Clamp Meter AC UNI-T Tipe UT202A+ / UT-202A+

Catatan : Tang ampere khusus arus AC,, tidak bisa untuk DC

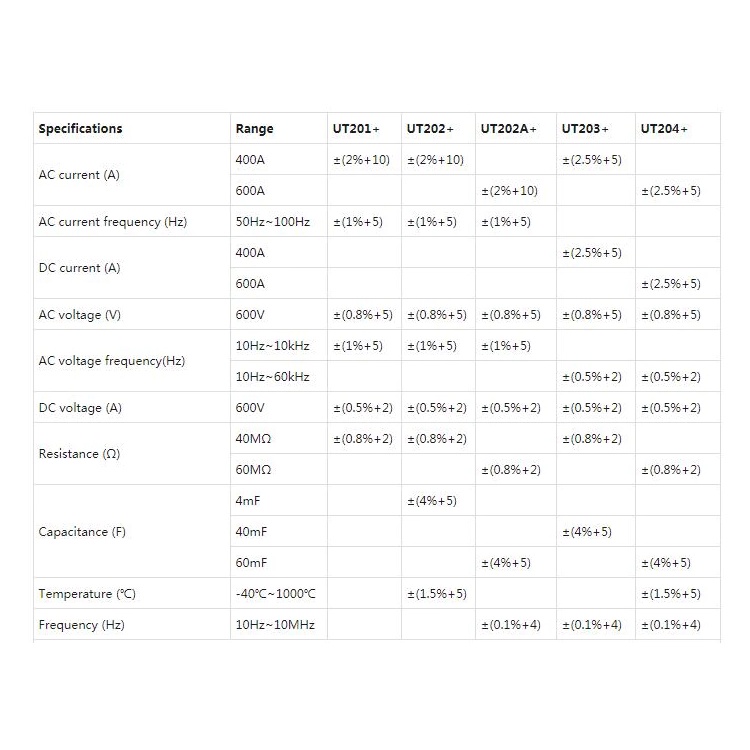

Specification:
AC current (A) : 600A ±(2%+10)
AC current frequency (Hz) : 50Hz~100Hz ±(1%+5)
AC voltage (V) : 600V ±(0.8%+5)
AC voltage frequency(Hz) : 10Hz~10kHz ±(1%+5)
DC voltage (A) : 600V ±(0.5%+2)
Resistance (Ω) : 60MΩ ±(0.8%+2)
Capacitance (F) : 60mF ±(4%+5)
Frequency (Hz) : 10Hz~10MHz ±(0.1%+4)

Features:
Display count : 6000
Auto range : 　√
Jaw opening : 28mm
True RMS : 　√
NCV : √
Continuity test : √
Diode : 　 √
MAX/MIN :　 √
Data hold :　 √
Low battery indication : √
Auto power off :　√
Live wire test : √
Relative mode : √

General Characterisitics :
Power : 1.5V battery (R03) x 2
Display : 37mm x 25mm
Product color : Red and grey
Product size 215mm x 63mm x 36mm

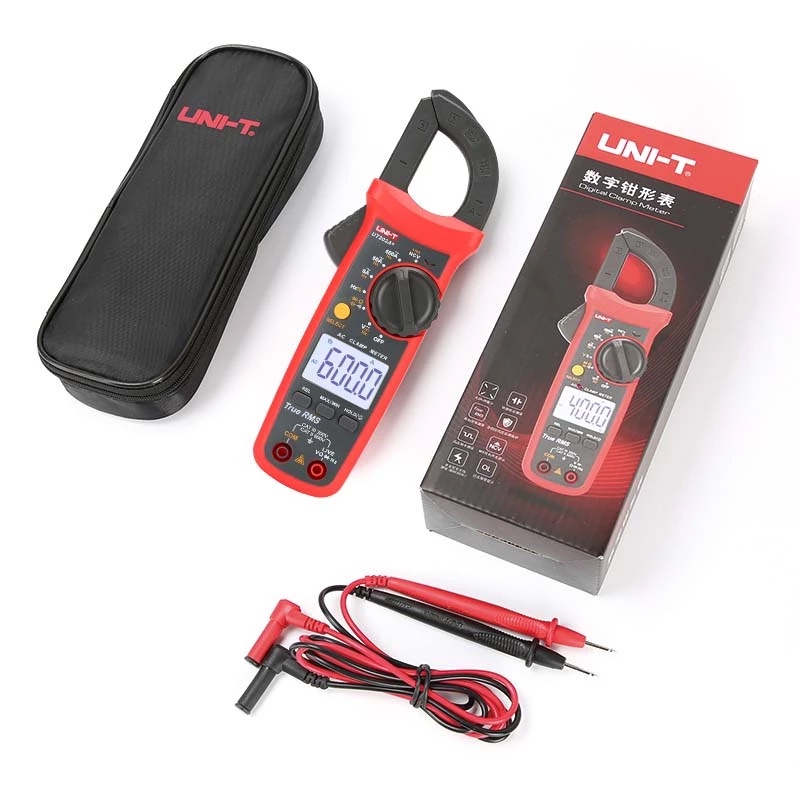

Gambar produk
