TIP41C TIP41 ORIGINAL STMicroelectronics ST NPN Transistor TIP 41
Deskripsi singkat
Elektronik > Elektronik Lainnya > TIP41C TIP41 ORIGINAL STMicroelectronics ST NPN Transistor TIP 41
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail TIP41C TIP41 ORIGINAL STMicroelectronics ST NPN Transistor TIP 41
TIP41C TIP41 ORIGINAL STMicroelectronics ST NPN Transistor TIP 41*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

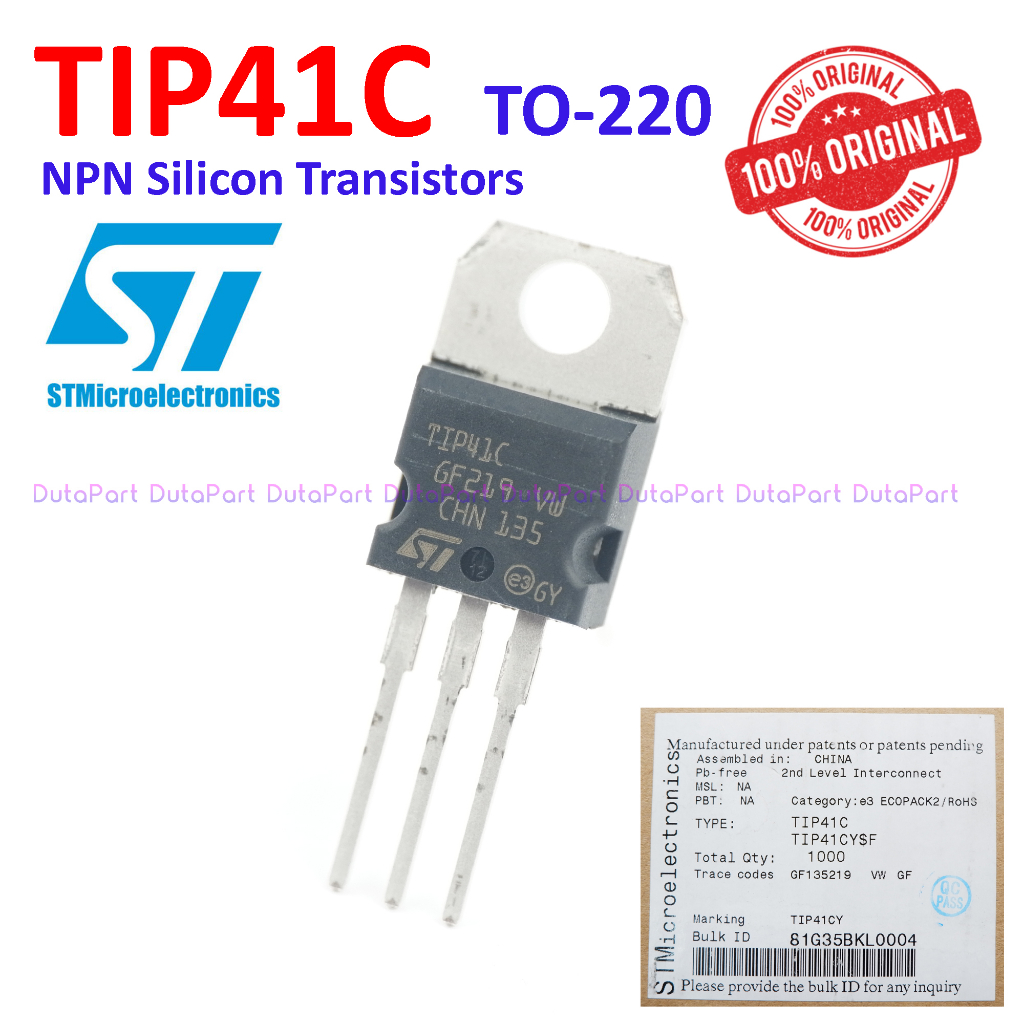

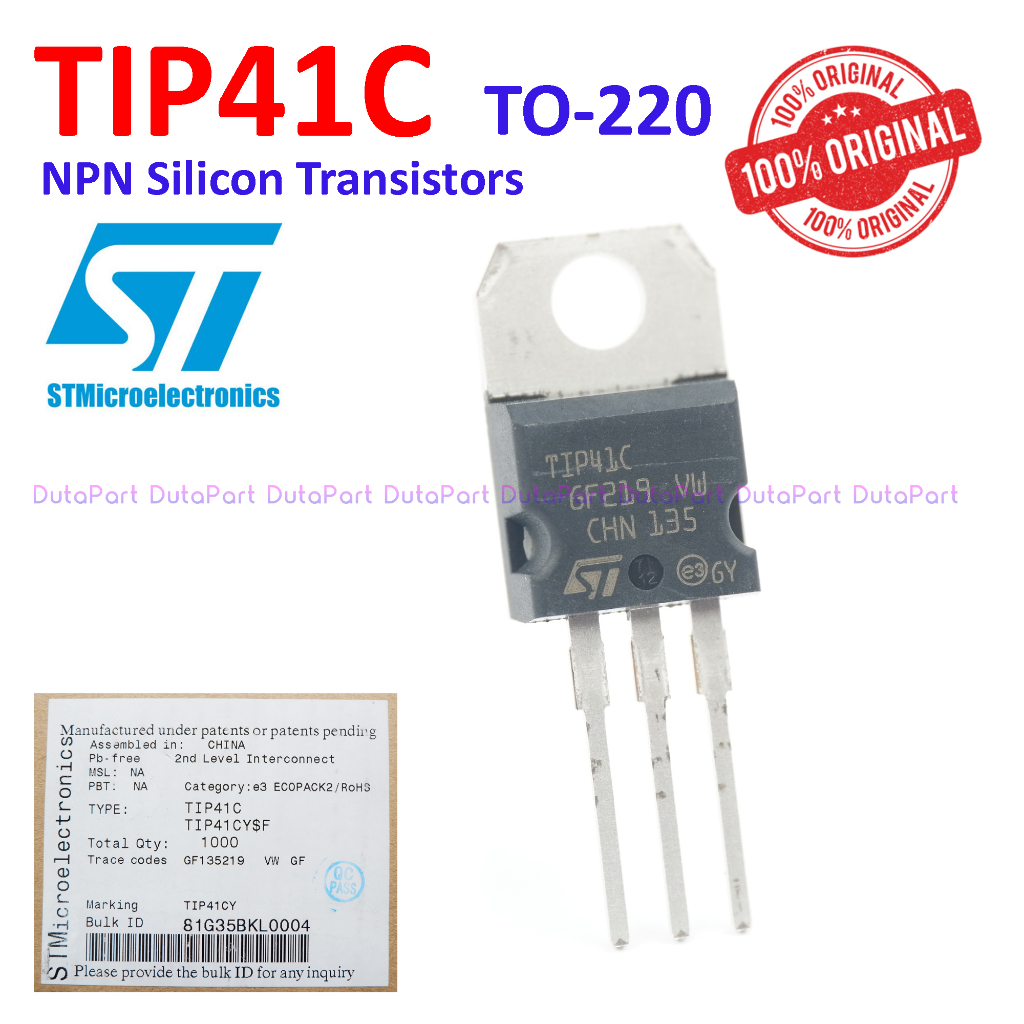

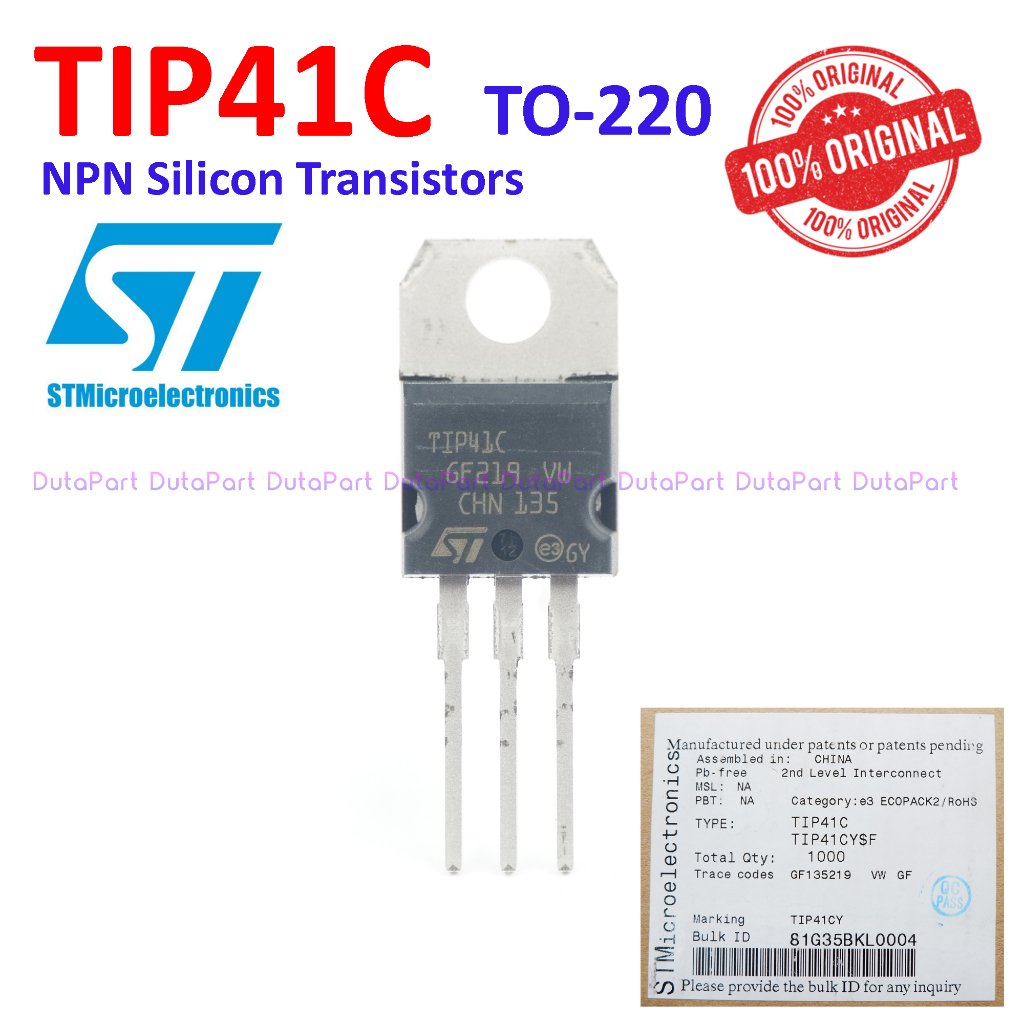

Barang sama/sesuai dengan foto diatas (Difoto oleh team toko kami).
ORIGINAL STMicroelectronics
Manufacturer: STMicroelectronics
Product Category: Bipolar Transistors - BJT
RoHS: Details
Mounting Style: Through Hole
Package/Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 100 V
Collector- Base Voltage VCBO: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.5 V
Maximum DC Collector Current: 6 A
Pd - Power Dissipation: 65 W
Gain Bandwidth Product fT: -
Minimum Operating Temperature: -
Maximum Operating Temperature: + 150 C
Series: TIP41C
Packaging: Tube
Brand: STMicroelectronics
Continuous Collector Current: 6 A
DC Collector/Base Gain hFE Min: 15
DC Current Gain hFE Max: 75
Height: 9.15 mm
Length: 10.4 mm
Product Type: BJTs - Bipolar Transistors
Untuk pembelian grosir atau info seputar hal teknis dan lainnya, Hubungi kami via Chat
