Timer Theben SUL181D ORIGINAL 100%

Detail Timer Theben SUL181D ORIGINAL 100%

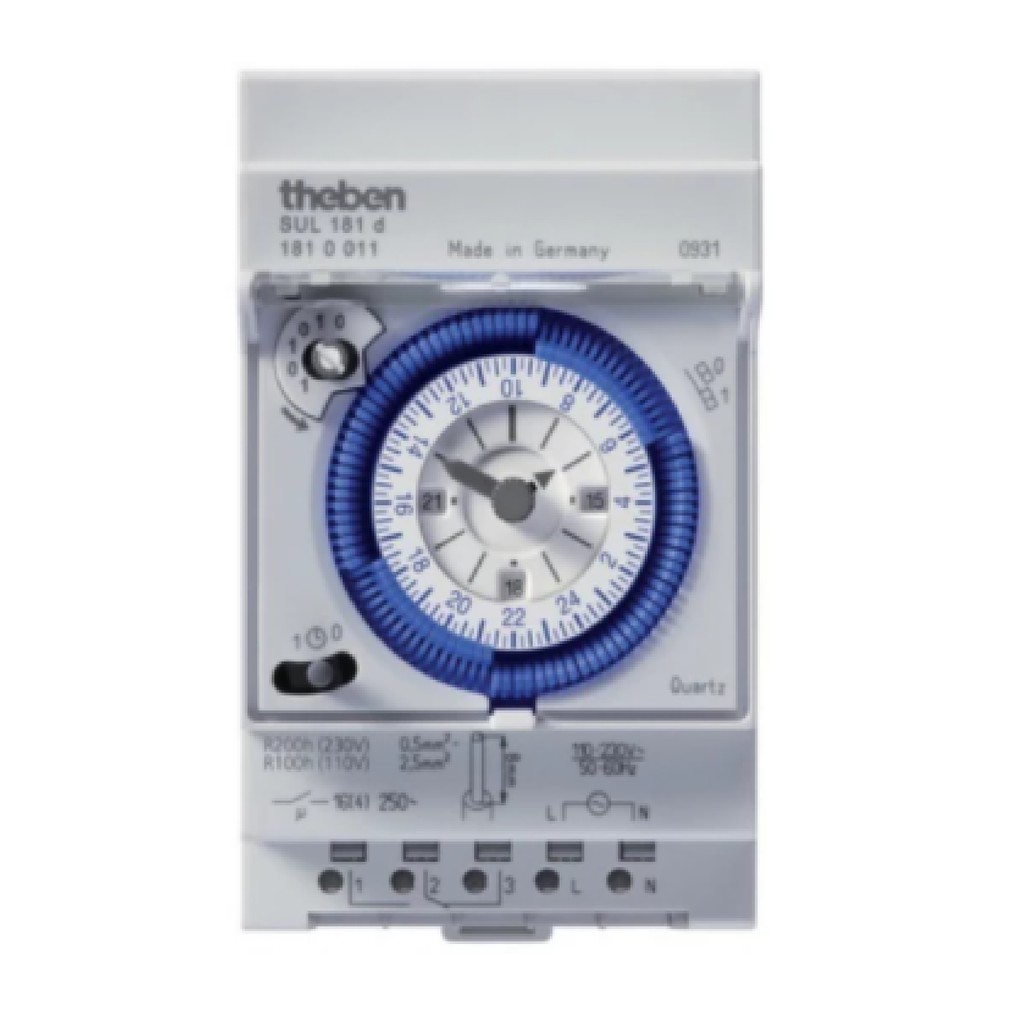

Timer Theben SUL 181 d
Segel Dus
Original

Analogue time switch
1 channel
Daily program
With power reserve (NiMH rechargeable battery)
96 switching segments
Quartz controlled
Shortest switching time: 15 minutes
Clock hands for time display and in addition 12/24 hour recognition

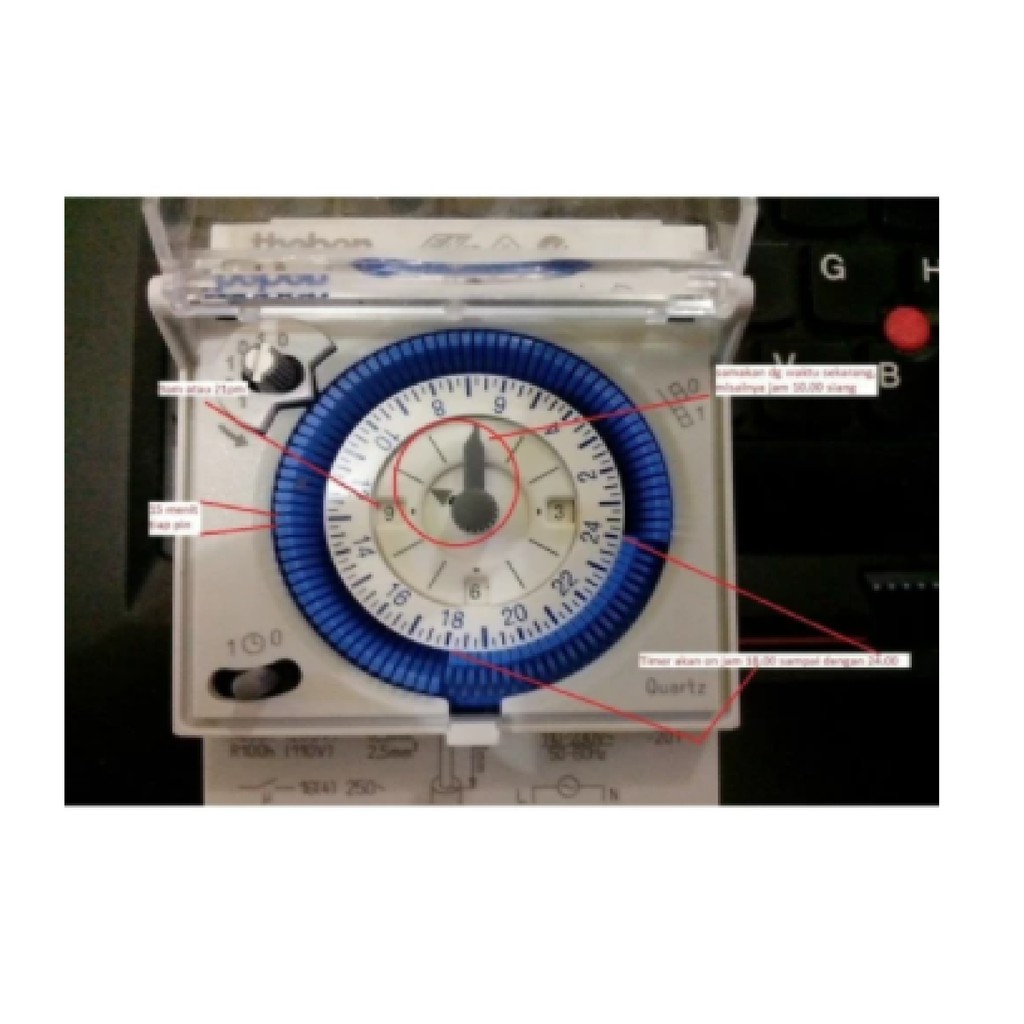

Simple summer/winter time correction
Time can be changed clockwise or anti-clockwise
DuoFix spring terminals
For 2 conductors each
Wire or strand (with or without wire end sleeve)
Wire diameter: 0.5 - 2.5 mm2
Button for releasing plug-in connection
Switching preselection
Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF
Switching status display

Operating voltage : 110~230 V
ACFrequency : 50 60 Hz
Number of channels : 1
Width : 3 modules
Installation type : DIN rail
Type of connection : DuoFix spring terminals
Drive : Quartz-controlled stepper motor
Program : Daily program
Power reserve : 200 hours approx. 100 hours at 110 V
Switching capacity at 250 V AC, cos = 116 A
Switching capacity at 250 V AC, cos = 0,64A
Incandescent/halogen lamp load1100 W
Shortest switching times15 min
Programmable every15 min
Time accuracy at 25 C 1 s/day (quartz)
Type of : Changeover
Switching output : Potential-free and phase-independent
Number of switching segments : 96
Stand-by consumption~0,5 W
Capacity loss max.1,3 W
Test approval : VDE
Housing and insulation material : High-temperature resistant, self-extinguishing thermoplastic
Type of protection : IP 20
Protection classII according to EN 60 730-1
Ambient temperature-20 C ... +55 C
