[tiantianbaofu] Heat Resistant High Temperature High insulation electronics Polyimide Tape 33m Boutique

Detail [tiantianbaofu] Heat Resistant High Temperature High insulation electronics Polyimide Tape 33m Boutique

Description:

100% Brand New and High Quality

Gold finger tape is made of polyimide film coated with high-temperature resistant silicone. The color is brown (amber). Gold finger tape has good adhesiveness, good applicability, high temperature resistance, solvent resistance, no tin penetration, no Residues, products with excellent electrical properties

High insulation, high temperature, low temperature, acid and alkali, low electrolysis, good mechanical properties, abrasion resistance, tear resistance;
Special adhesive treatment, strong adhesion, torn off after the masking surface without leaving a residue.

Mainly used for painting, baking, sealing, footwear, packaging, construction and decoration industries;

Widely used as high-temperature insulation windings in transformers, motors, coils, capacitors and variable frequency power supplies in the electronics industry;

Applicable to printed circuit board (PCB), SMT tin furnace, wave shield during protection process gold finger;

High-grade electrical insulation protection and lithium battery positive and negative fixed role;

Suitable for welding protection;

Material: Polyimide
Color: Metallic Brown

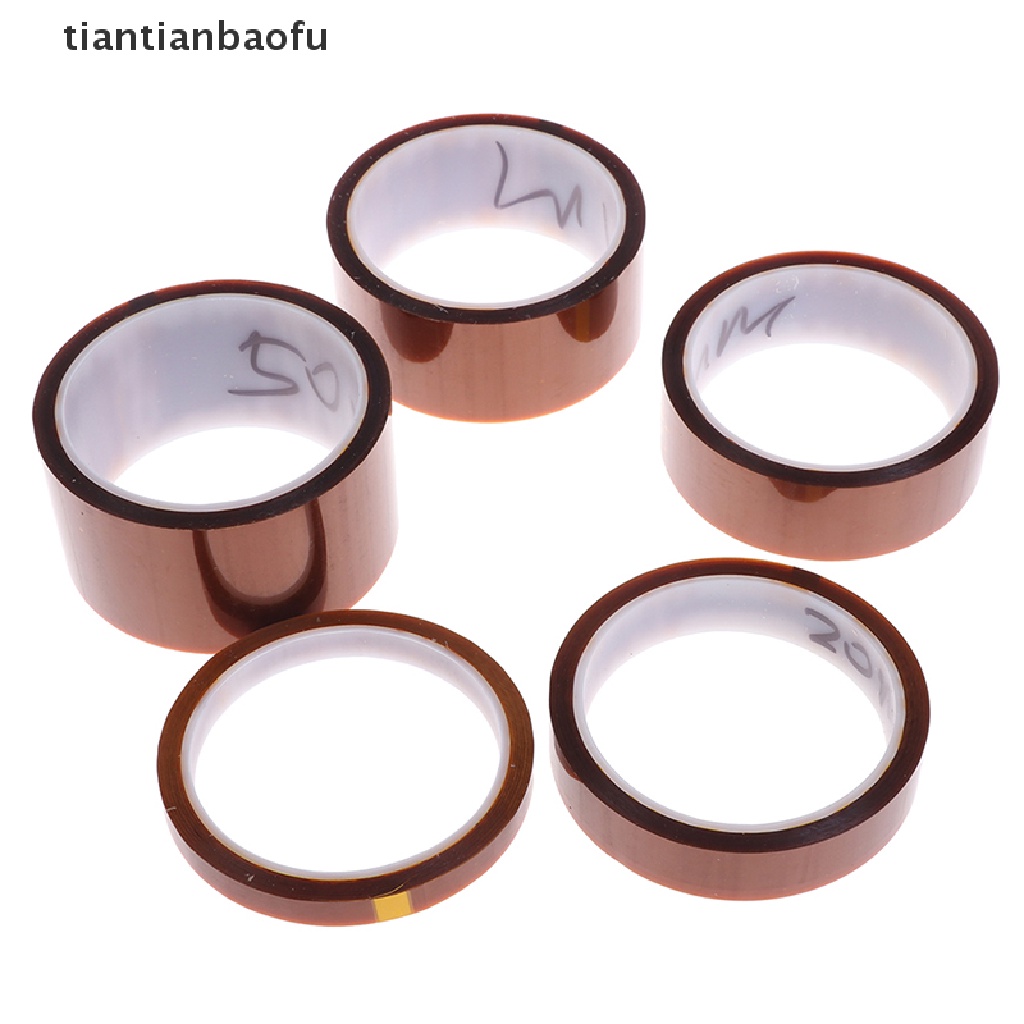

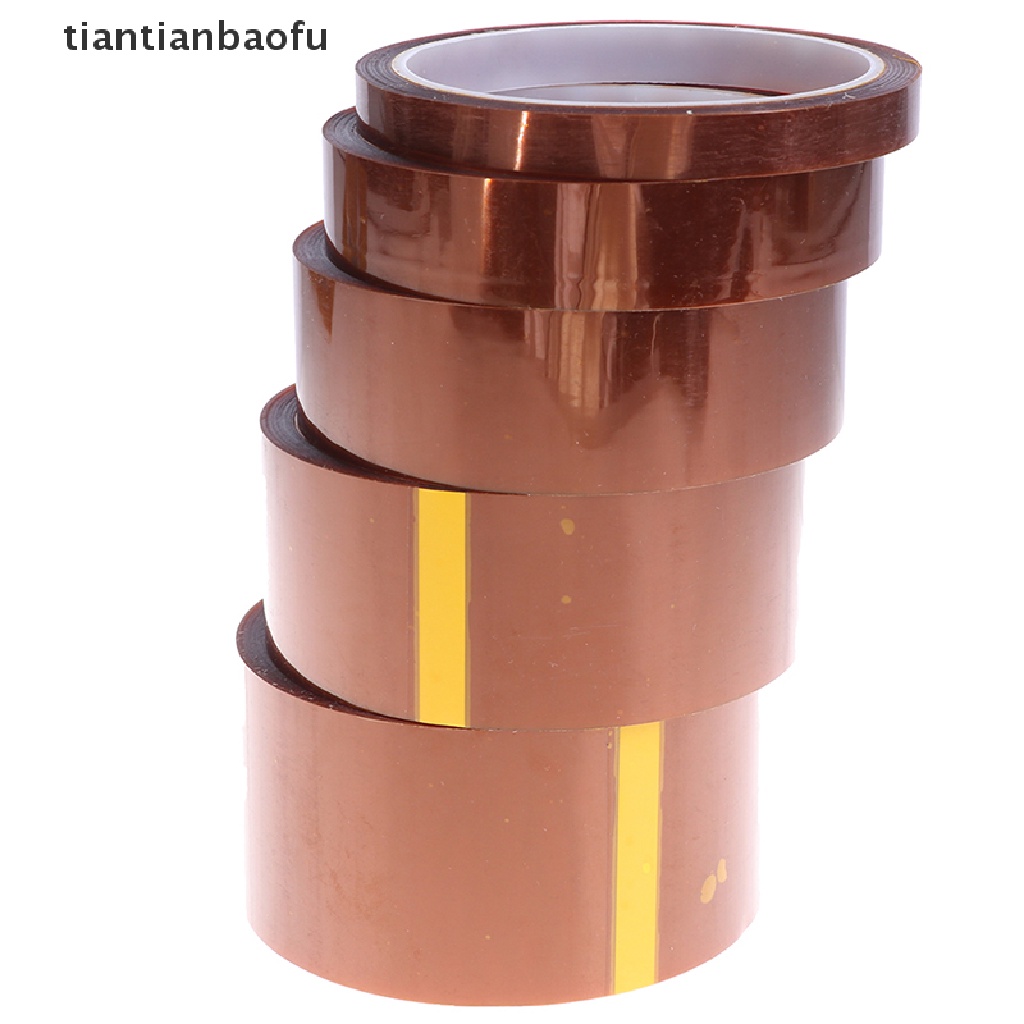

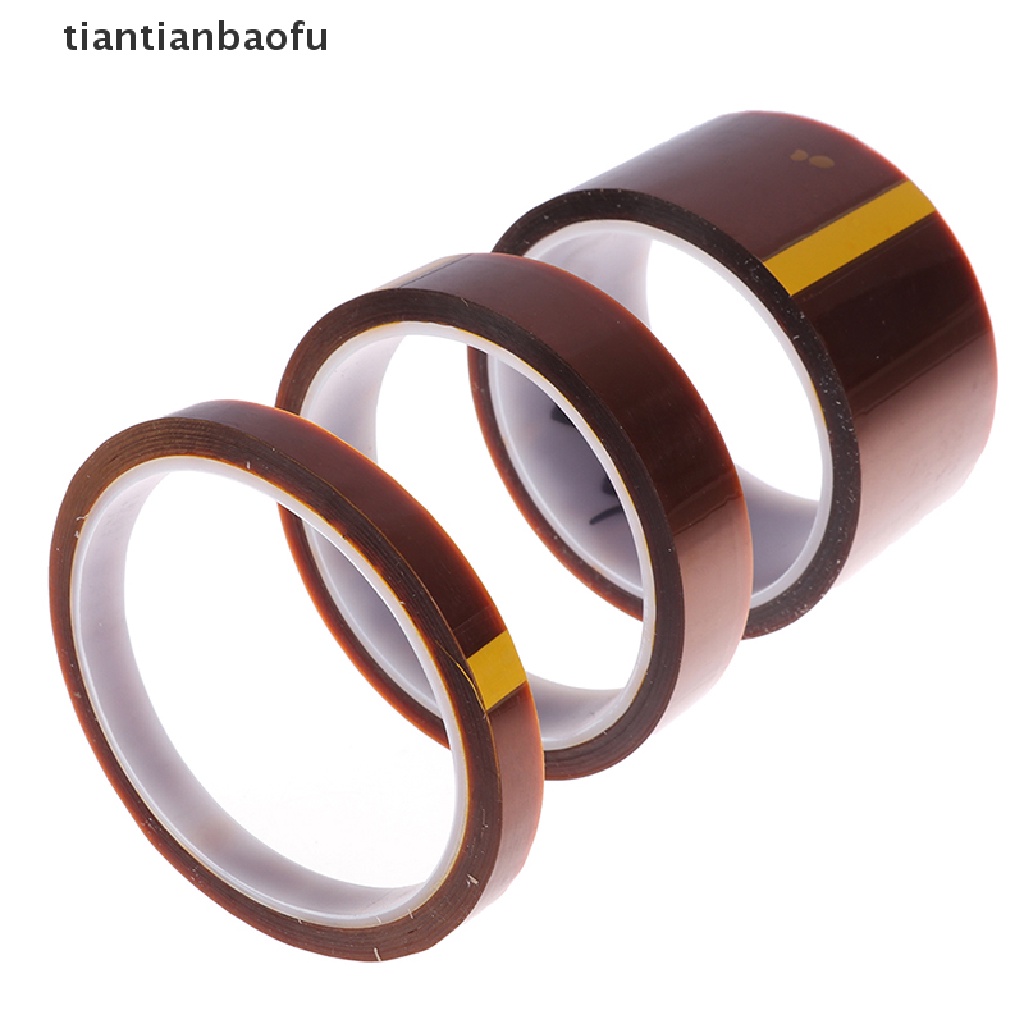

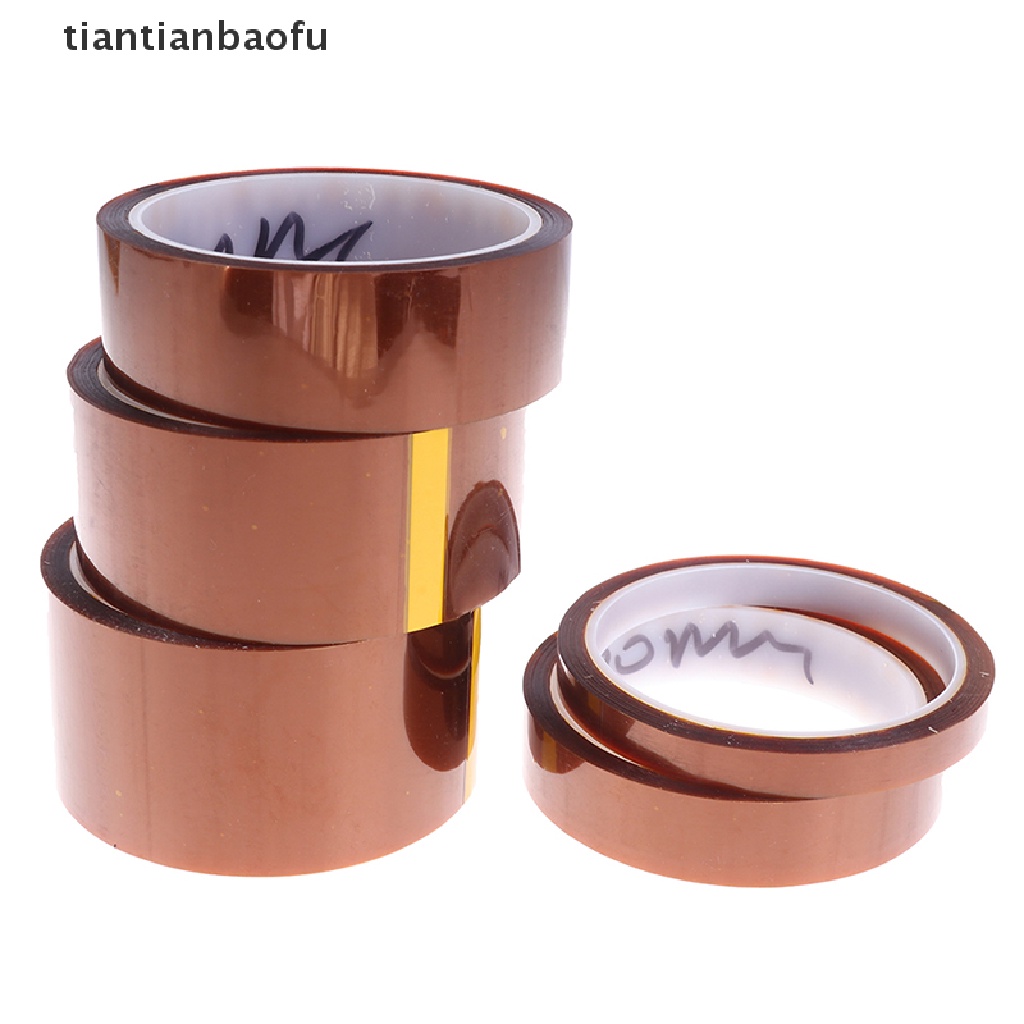

Width: approx.10/20/30/40/50mm （According to your purchase selection）
Length: approx. 33m
Thickness: 0.055mm
Elongation: 50%
Tensile force: ≥42N/25mm
Peeling force: ≥26N/25mm
Initial adhesion: 24#
Sticky force: 48H
Long-term temperature:200 °C degrees
Short-term temperature: 220 °C degrees.

Quantity:
1x Roll of Tape Adhesive High Temperature Heat Resistant Polyimide（10/20/30/40/50mm According to your purchase selection）

Notice:
Please allow 1-2cm error due to manual measurement.
Pls make sure you do not mind before you bid.
The colors may have different as the difference display,pls understand.
