Thin Client WiFi Box Aviatech AV-PC600W PC Station

Detail Thin Client WiFi Box Aviatech AV-PC600W PC Station

AVIATECH AV-PC600W PC Station
adalah pengganti CPU Komputer
- Menghemat biaya pembelian 80% dari perangkat lunak dan perangkat keras.
- Mudah diatur, bebas untuk memperbarui perangkat lunak apapun.
- tidak ada suara, perlindungan lingkungan, menghemat 98% listrik, ruang kecil.
AVIATECH AV-PC600W with Windows CE 6.0 embedded, 128MB RAM, it connect with host PC via RDP 6.0 protocol.
Wifi Specifications
RF Frequency : 2412-2472 MHz
RF MAx Power : 10 dbm
max range : 100 m
Introduction
1. Connection to Host PC--Unlimited distance via 100 Mb/s switched Ethernet connection
2. Video Resolution--64 Hz refresh rate) and 12800(60Hz) .All feature up to 24-bit ture color support
3. Audio--16-bit stereo output via speaker port ,Microphone Input
4. USB Port--3 USB 2.0 ports--instead of the PS2 interface,can connect to the keyboard,mouse,USB Flash memory
5. Internal HW--All solid-state design, no moving parts, no fans,Windows CE intergrated RDP protocols
6. Reliability (MTBF)-- >100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40C)
7. Power Supply--Input-- 100-250VAC, 50-60Hz, Output--5VDC,2A, Nominal consumption: 5W
10. Front LED Indicators--Power--connection to power supply, LAN: connection to network, Ready-- connection to host PC
Data sheet
1. Operating System: Windows CE 6.0
2. CPU: Onboard CPU ARM11 CLG7700 800MHz
3. RAM: Onboard 128MB
4. Flash: Onboard 128MB
5. Display support Max 128K colors; Widescreen 1440*900 support,24bit true color support
6. Power Input: 1Hz; Output: 5V/2A
7. Management Remote management, configuration;
8. Wake terminal remotely(Wake-on-LAN)
9. Onboard LAN 10/100 MB/s
10. Operating range 3k meters
11. Ports: 1 RJ-45 LAN port; 3 USB 2.0 ports; 1 DC in port; 2 Audio jacks: Speaker-out and mic-in;
12. Server OS support Win 2/XP/Vista/Win 7 professional version

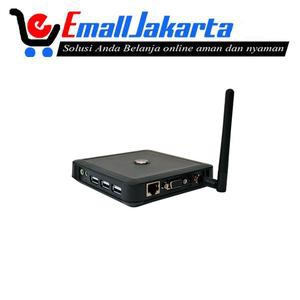

Gambar produk
