Thermostat XH-W1401 intelligent digital display (2030)

Detail Thermostat XH-W1401 intelligent digital display (2030)

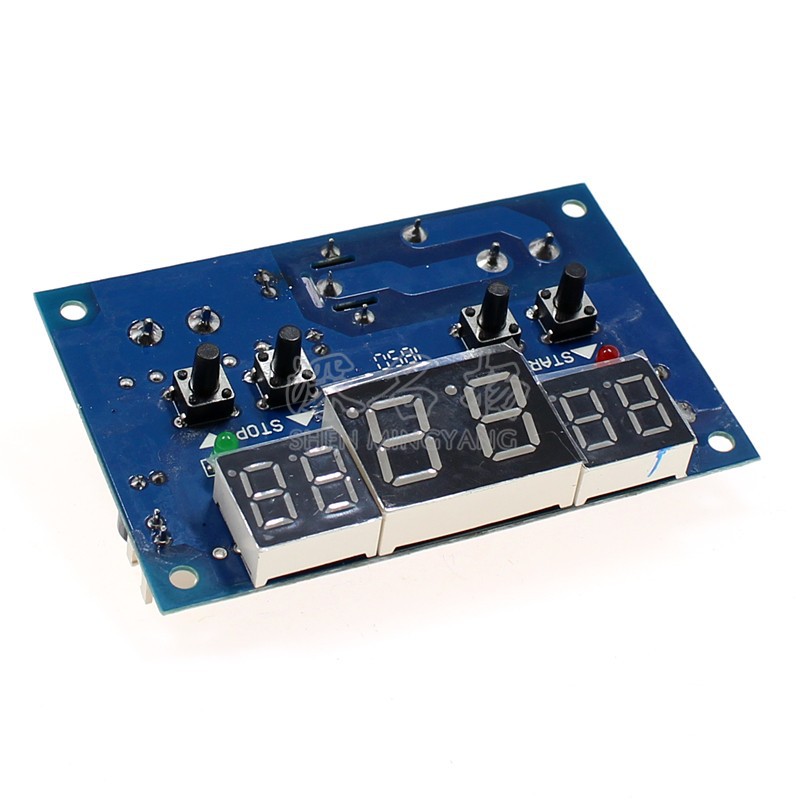

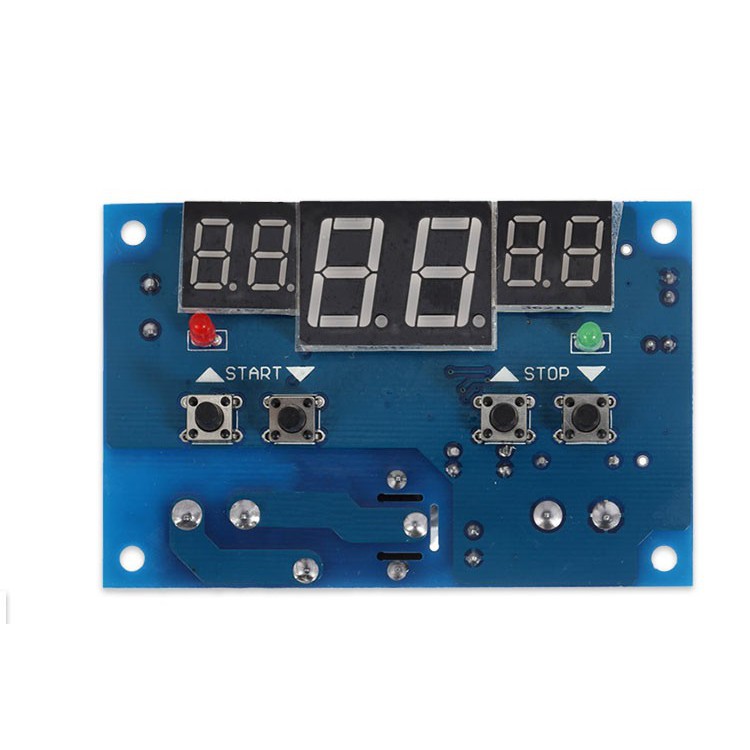

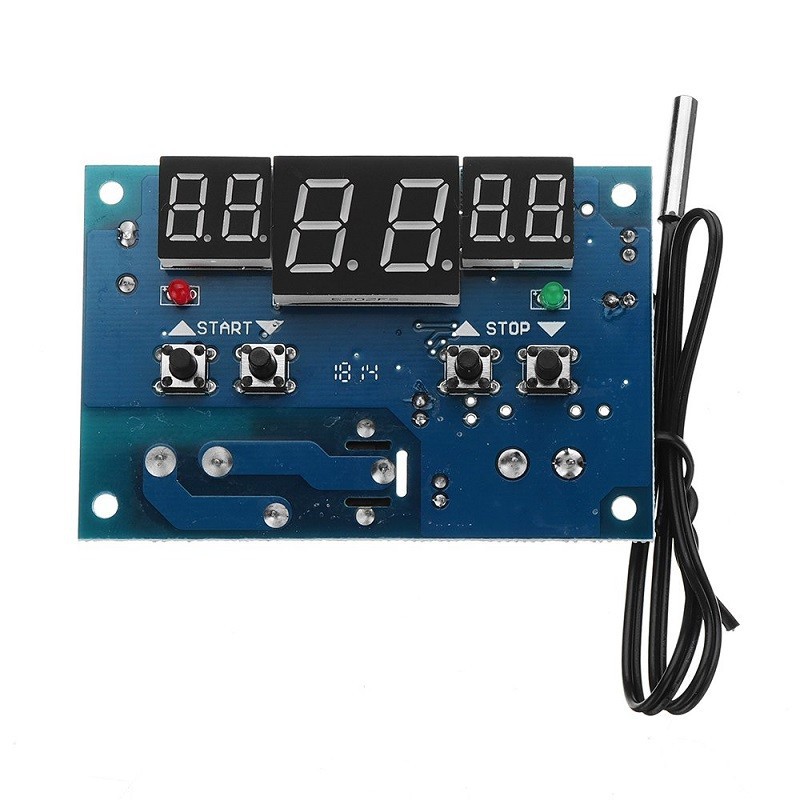

XH-W1401 Intelligent Digital Thermostat Three Window Synchronization Temperature Controller Module Board
Feature:
1. Imported High Speed Single Chip Microcomputer.
2. Three Windows (Start-Real-Time-Stop).
3. Automatic judgment of heating and cooling according to set temperature.
4. Random setting range is -9℃~99℃.
5. Suitable for all kinds of space temperature control, water temperature control, thermal insulation box, etc.

Specification:
Temperature measurement range: -9~99℃
Temperature measurement accuracy: 1℃
Control accuracy: 1℃
Setting range: -9~99℃
Refresh rate: 0.5s
Input power supply: DC 9-15V
Temperature Requirements: -10℃~60℃
Humidity: 20%~85%
Measurement input: NTC (3950-10K 1%) waterproof sensor
Output: Relay Output, Capacity: 220V10A/12V10A

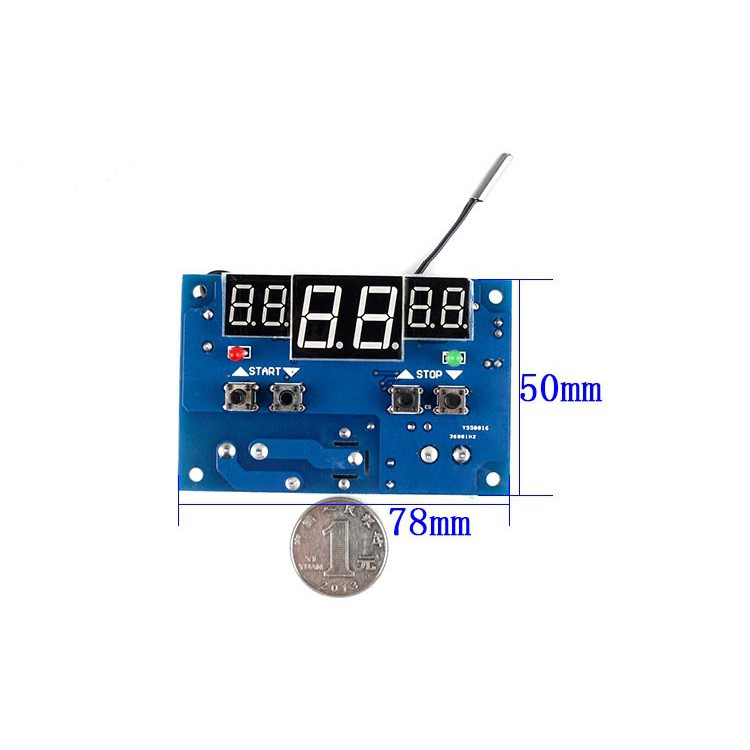

Size: 75*50*22mm/2.95*1.96*0.86''

Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
