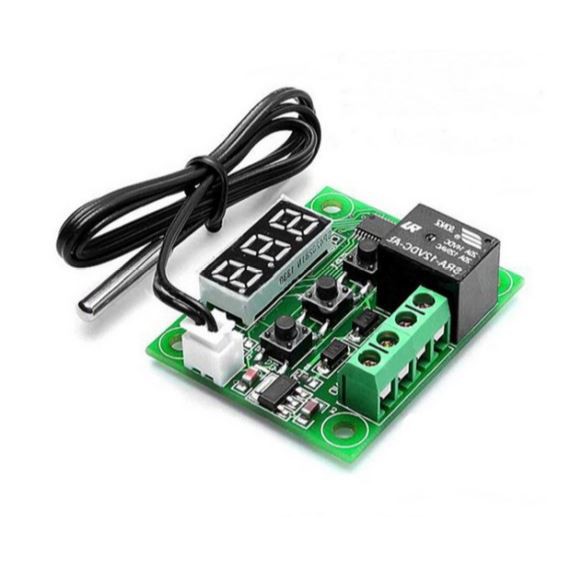

Thermostat W1209 DC 12V

Detail Thermostat W1209 DC 12V

Description:
100% brand new and high quality
Temperature control range: -50 ~ 110 C
Resolution: -9.9 to 99.9 is 0.1 C , 1 C temperature ranges other
Measurement Accuracy: 0.1 C
Control accuracy: 0.1 C
Hysteresis accuracy: 0.1 C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%

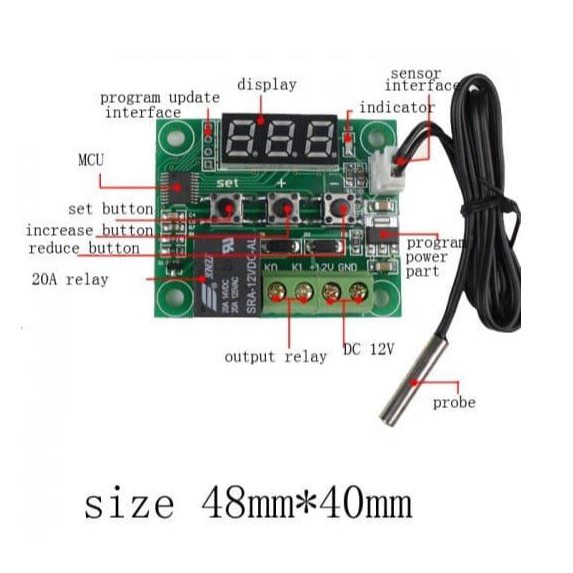

Size: 48 (L) * 40 (W) * 14 (D) mm

Power consumption: Static current:
Parameter Function:
Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8
Long press SET or 10 seconds of no key activity confirmed their return to the controller

Code..Code Description................Range.....Factory Setting

.P0.....Cooling /Heating...................... C/H ............... C ....
.P1.....Hysteresis setting.................. 0.5-15 ............ 2 ....
.P2.....Highest setting upper limit..... 110 ........... 110 ...
.P3.....Lowest setting upper limit...... -50 ............. -50 ...
.P4.....Temperature correction......... -7-7 ............... 0 ....
.P5.....Delay start time................ 0-10 Minutes ...... 0 ....
.P6.....High temperature alarm....... 0-110 .......... OFF ...
