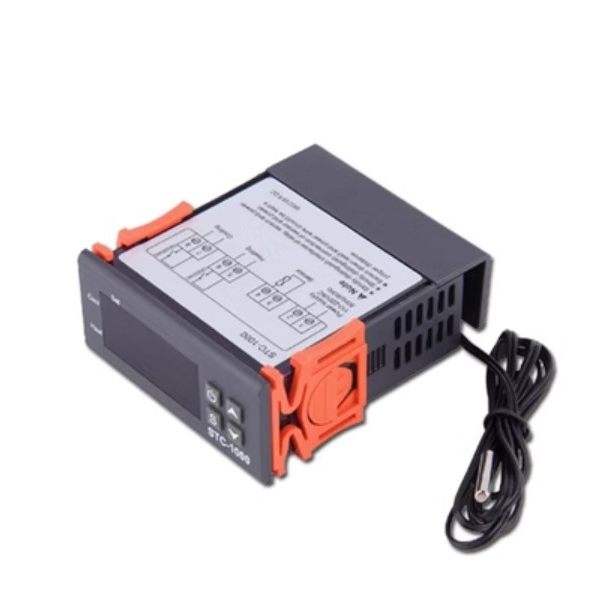

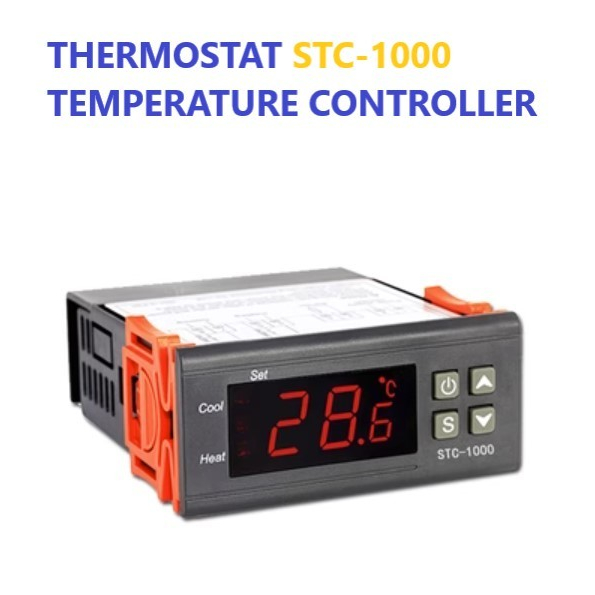

Thermostat STC-1000 Temperature Controller Switch (1000)

Detail Thermostat STC-1000 Temperature Controller Switch (1000)

Thermostat STC-1000 Temperature Controller Switch (1000)


Power supply: 110-220VAC ± 10%, 50/60Hz (or DC12V / DC24V)
● Temperature measurement and control range: -50℃～+110℃
● Resolution: 0.1
● Accuracy: ±1℃
● Relay output contact capacity: Heating: 10A/240VAC, refrigeration: 10A/240VCA
● Sensor type h: imported NTC sensor, cable length 1 meter
● Shell material: gray ABS flame retardant plastic case

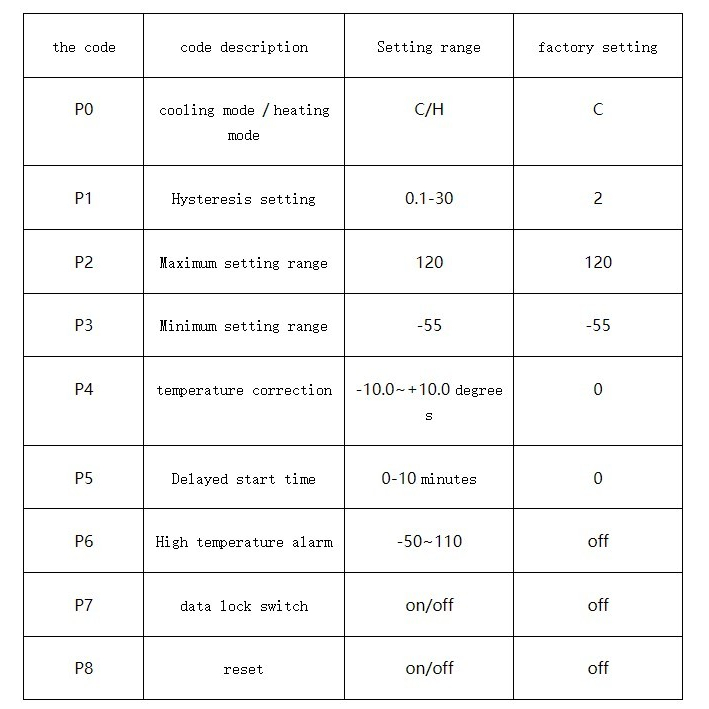

Long press Set for 5 seconds to enter the internal parameter setting, press up and down to switch P0...P8 and press Rst to confirm and return

P0 cooling, heating mode
Please set it to C when the high temperature starts in cooling mode

Low temperature startup is heating mode, please set it to H

P1 hysteresis setting
In the heating mode ( H ): measured value ≤ set value - when the hysteresis starts, the output heats up to the set value and stops

In cooling mode ( C ): When the measured value ≥ set value + hysteresis, start output cooling until the set value stops

P2 maximum setting range: the maximum value does not exceed this value when setting the temperature

P3 minimum setting range: the minimum value is not lower than this value when setting the temperature

P4 temperature correction
When there is a deviation between the measured temperature and the standard temperature, this function can be used to correct, the corrected temperature = the temperature before correction + the corrected value

P5 delay start time unit: minute
When controlling the refrigeration of the compressor equipment, the delay time can be set according to the needs. When the controller outputs, the equipment will not start immediately, and it needs to run after the set delay time.

P6 high temperature alarm
When the measured value is greater than this value, the screen will display --- and beep alarm, and at the same time, the output will be forcibly disconnected

Tipe yang ready : 220V AC

Gambar produk
