Detail THERMOSTAT REX C100 TEMPERATURE THERMOCOUPLE C-100 C 100 control

Sama spt foto (3 item)



********

REX C100 TEMPERATURE CONTROLLER adalah modul controller/thermostat yang menggunakan probe sensor K Type thermocouple.

Controller ini memiliki kemampuan pengukuran / pengaturan suhu sampai maksimal 400C.

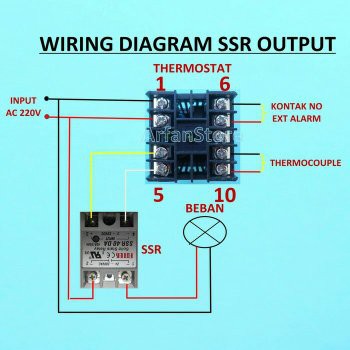

Didalam paket ini tersedia juga Solid State Relay (SSR) 40Amp sebagai pengganti relay mekanikal, dimana SSR berfungsi sama seperti relay yaitu untuk mengatur load / heater.



Controller ini dan SSRnya dapat bekerja dengan rentang tegangan 220VAC, sehingga anda tidak memerlukan power supply / adaptor tambahan lagi.



Spesifikasi:

REX-C100 Temperature Controller Kit

Measuring accuracy: 0.5%FS

Cold-end compensation tolerance: ~2C(can be modified by software in 0~50C)

Resolution: 14 bit

Sampling cycle: 0.5 Sec

power supply: AC100 to 240V

Process value (PV), Setting value (SV)

Output, alarm and self-tuning can be indicated by: LED

PIN control (including ON/OFF, step-type PID and continuous PID)

Self-tuning control

SSR OUTPUT

Alarm function output: 1 way

Setting value (SV): identical to measuring range (PV)

Proportional band (P): 0 ~ full range (ON/OFF control when set to 0)

Integral time (I) and Derivative time (D) : 0 ~ 3600 sec (No integral action when set to 0)

Heat-reset proportional cycle: 1 ~ 100 sec

Detective temperature range0 to 400C

Power Consumption: 10 VA



K Thermocouple Probe Cable

Length: 1m

Sensor diameter: 4.5mm

Temperature range: 0-400C

Internal Insulation: Fiberglass

External Shielding: Insulated Shielding



Max.40A SSR

Output Voltage Range: Standard Type

Output Current: 40A

Input Voltage: DC 3-32V

Output Voltage: 24-380VAC



Kelengkapan:

1pcs REX C100 Controller

1pcs K Type Thermocouple Probe

1pcs SSR 40A
