Thermostat PID REX-C100 Digital Controller + Thermocouple SSR Output

Alat yang berfungsi untuk mengontrol atau mengatur suhu sampai dengan 400 derajat celcius. Banyak digunakan sebagai pemanas, pendingin, penetas telur dan sebagainya.

Spesifikasi:
- Measuring accuracy: 0.5%FS
- Cold-end compensation tolerance: 2 (can be modified by software in 0~50 )
- Resolution: 14 bit
- Sampling cycle: 0.5 Sec
- Power : AC 220V 50/60HZ
- Process value (PV),Setting value (SV)
- Output, alarm and self-tuning can be indicated by:LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output: contact capacity 250V AC 3A (resistive load)
- Alarm function output: 2 way
- Proportional band (P): 0~full range (ON/OFF control when set to 0)
- Detective temperature range: 0 to 400
- Insulation resistance: >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Insulation resistance : Power Consumption < 10 VA
- Service environment: 0~50
- environment with no corrosive gas 30~85% RH
- Dimensions: 48 x 48 x 110 (mm) 0.2mm
- K Thermocouple Probe Cable Length: 1M
- Sensor diameter:4.5mm
- Temperature rang :0-400
- Internal Insulation: Fiberglass
- External Shielding: Insulated Shielding

Catatan:
- Output SSR
- Pastikan koneksi terminal belakang sesuai dengan wiring di samping
- Input dan Output harus sesuai dengan spesifikasi
- Untuk range suhu yang lebih tinggi bisa diganti thermocouple yang lain yang support.
- Produk sudah di test sebelum dikirim dan berfungsi normal

Paket:
1 buah REX-C100 Digital Controller
1 buah K Thermocouple Probe Sensor
1 buah manual book

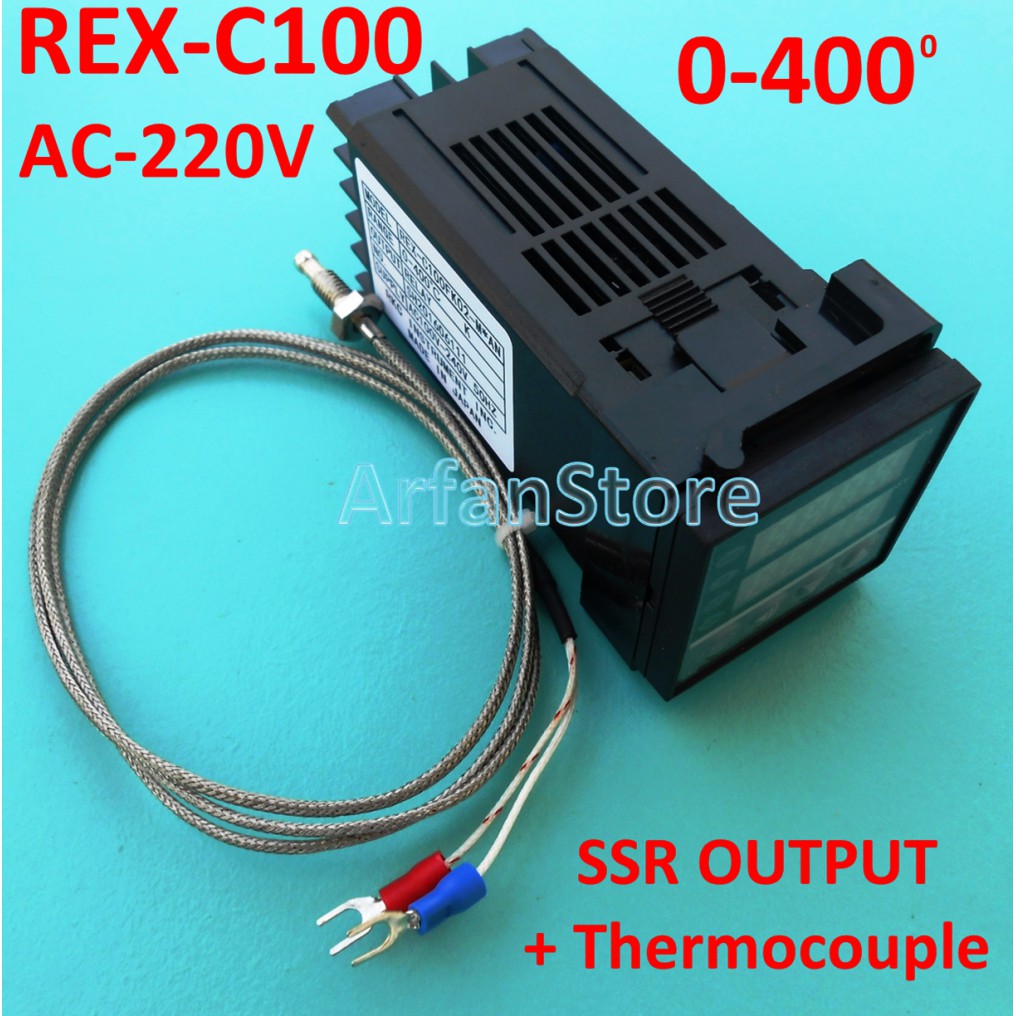

Gambar produk
