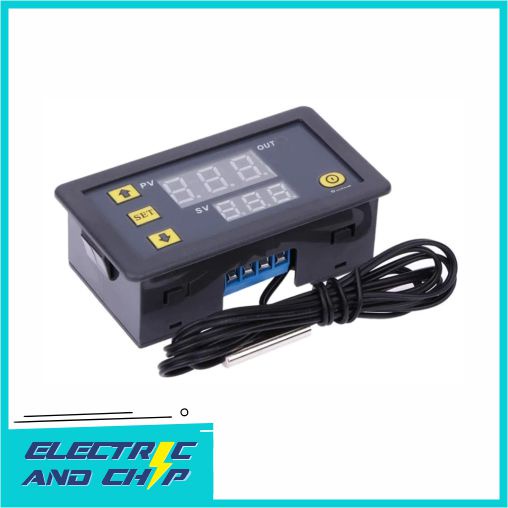

Thermostat Digital Temperature Control Termostat Controller

Detail Thermostat Digital Temperature Control Termostat Controller

Description:
-Mini temperature controller.
-With clear LED display for better readability.
-Wide temperature measuring range.
-Heating or cooling control.
-All parameters setting can be saved after short circuit.
-Relay output.
-High Control precision 0.1 centigrade
-Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial
equipment and other temperature-controlled system.

Specifications:

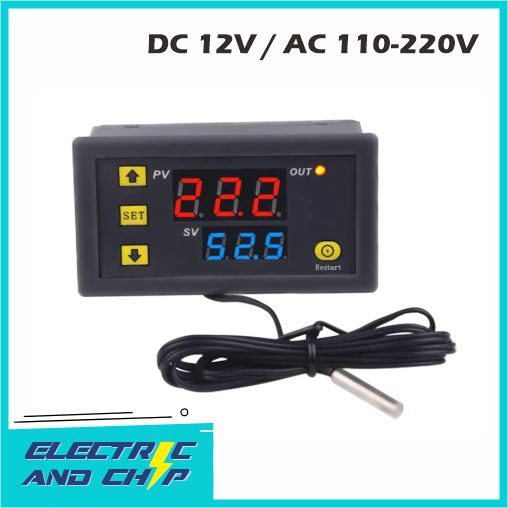

-Power Supply:12V DC/24V DC/110V-220V AC
-Temperature Control Range:-55°-120°
-Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
-Color of Displaying: red/blue
-Measurement accuracy: ±0.1°C
-Control accuracy: 0.1°C
-Sensor: NTC10K Waterproof sensor
-Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
-Environmental requirements: -10-60°C , humidity 20%-85%RH

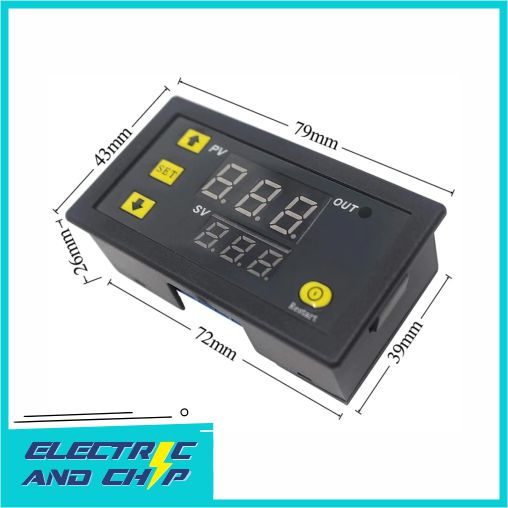

-Dimension:79mm *43mm*26mm
-Cutting Size:73mm*39mm
-Sensor wire: 1 meter

How to use:
Press the SET key once, the display temperature flashes, and press "+","-" to SET the required temperature (press "+" or "-" to quickly rise and fall).The thermostat output is 20A relay, to meet a variety of high power load, connected to the control circuit, you can supply power for the thermostat, at this time the display screen for the environment temperature.

Code Table:
P0 : Heating/Cooling
P1 : Return Difference
P2 : Setting limits to the maximum
P3 : Setting limits to the minimum
P4 : Temp. Correction
P5 : Delay Start
P6 : Alarm Temp
P7 : Data locked
P8 : Restore factory settings
