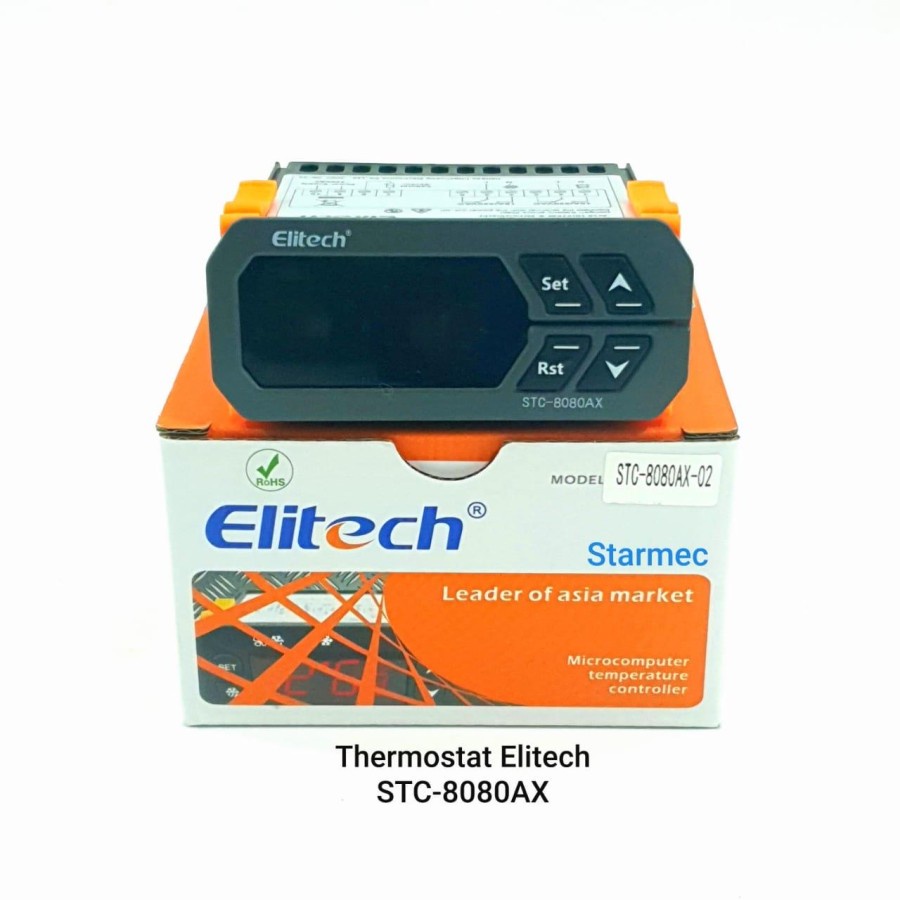

Thermostat Digital ELITECH STC-8080AX

Detail Thermostat Digital ELITECH STC-8080AX

71mm x 29mm hole installlation
Product size: 80.5mmx34.9mmx65.8mm
220vac + 10% / - 15% power supply, 50 / 60hz
Power consumption: < 3w
Temperature measuring range: - 50°C ~ + 99.°C
Temperature control range: ~ 40°C ~ + 50.°C
Resolution: 1°C
Accuracy: + 1.°C when temperature - 40°C ~ + 50.°C, + 2°C at others
10a / 277vac can drive single phase compressor relay capacity of compressor
Relay capacity of defroster: 10a / 277vac
1 minute relay time sensor error
Type sensor: Ntc sensor
Ipx4 front panel safe level:
Operating temperature: 0°C ~ 60.°C
Temperature storage: - 30°C ~ + 75.°C
Relative humidity: 20% ~ 85% (no condensate)
