Thermostat Digital DC 12V Switch Pengatur Temperatur DC 12V Mini Termostat

Detail Thermostat Digital DC 12V Switch Pengatur Temperatur DC 12V Mini Termostat

Features:
1. 100% complete machine patch, wave soldering, stable performance, good consistency
2. embedded central processor chip (MCU), smarter, lower power consumption
3. power off setting automatic memory (MCU built-in EEPROM storage unit)
4. control accuracy of 0.1 degrees Celsius
5. Settings from the backlash of 0.1, can control the decimal (0.1-15.0)
setting

Specification:
Size: 48.5*40*15mm
PCB Color: green
Light color: red, blue
Temperature control range: -50 ~ 110 ℃
Resolution: -9.9 to 99.9 is 0.1℃ , Other: 1℃
Measurement Accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1 ℃
Refresh rate: 0.5 S
Probe Length: 50cm
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
Power consumption: Static current:<=35MA, Attract current:<=65MA

Package Includes:
1 x DC 12V Digital Thermostat

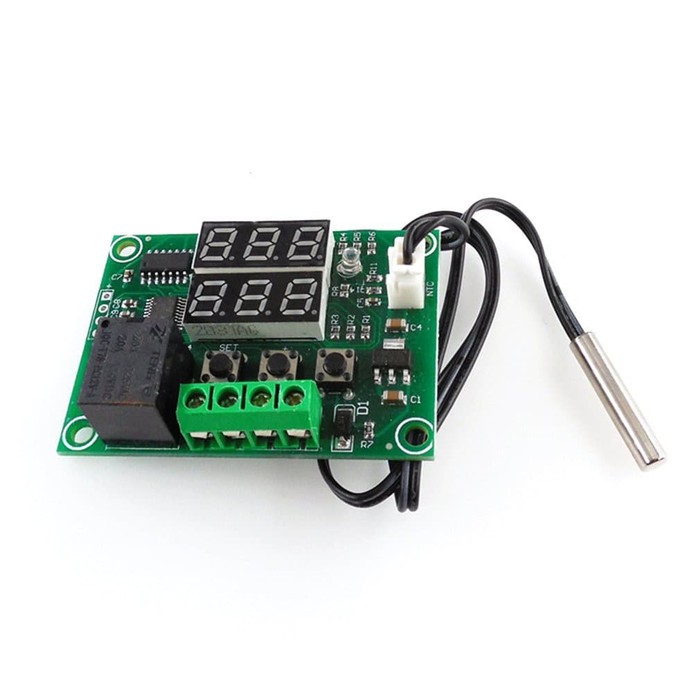

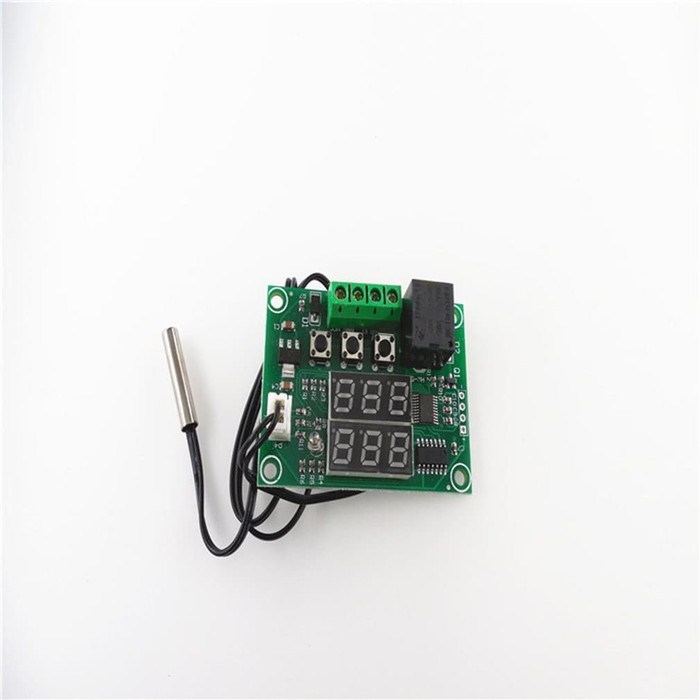

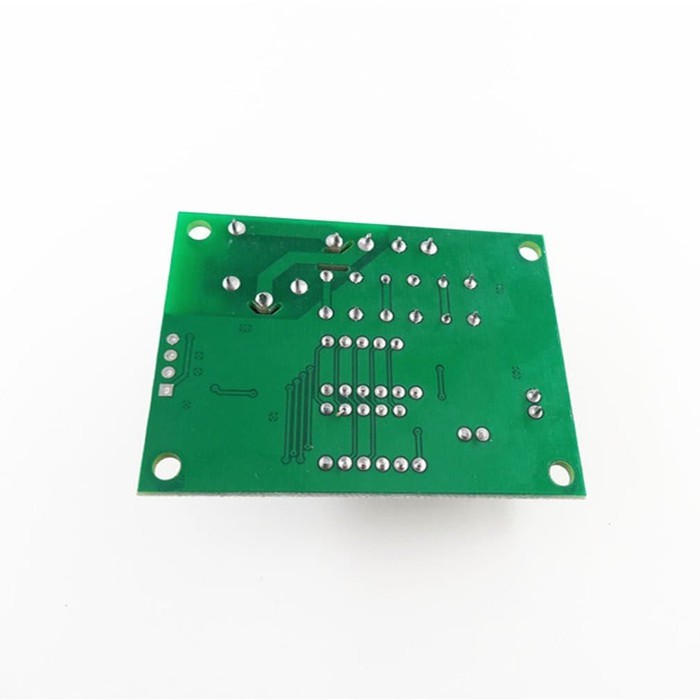

Gambar produk
