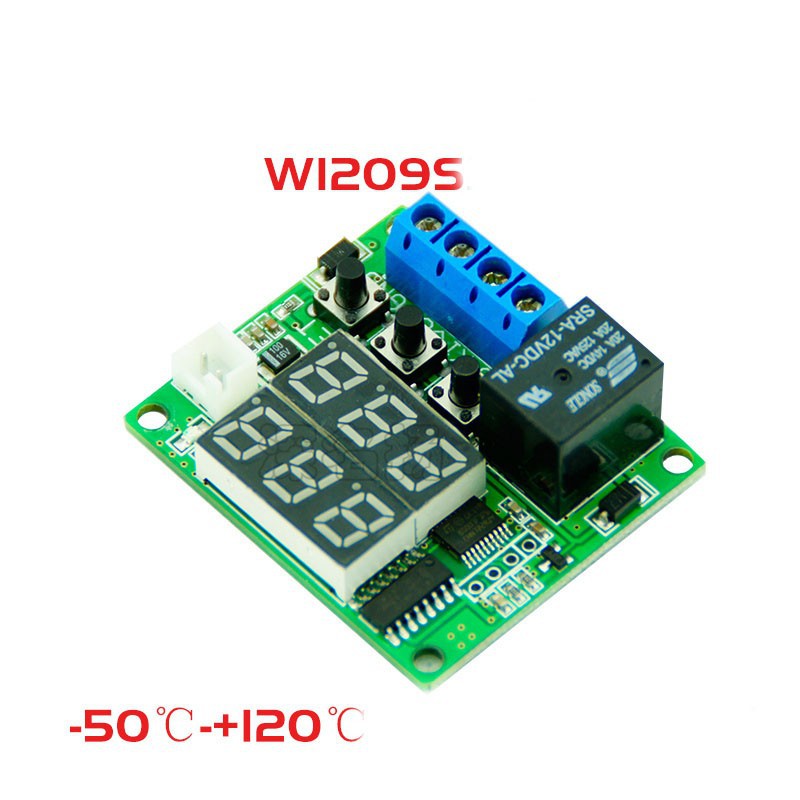

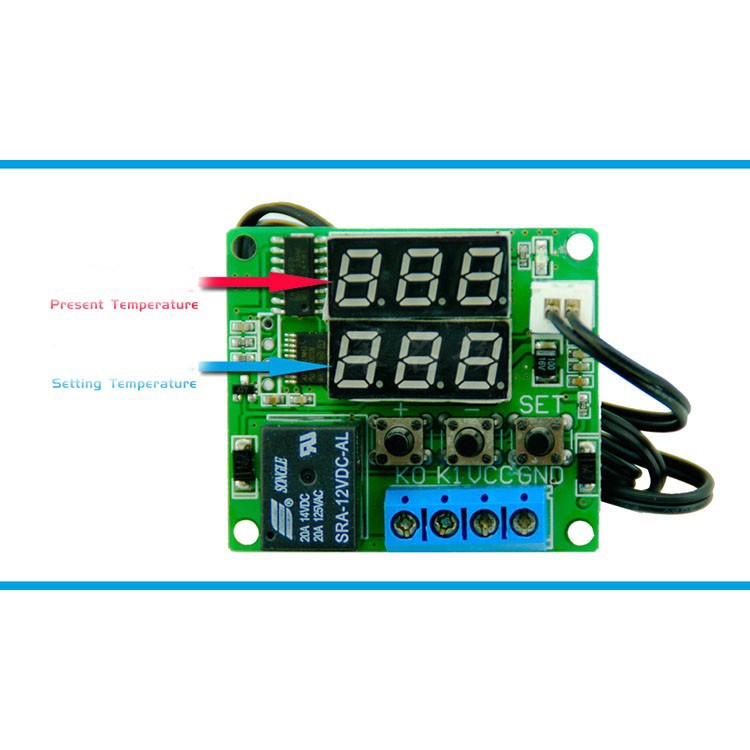

Thermostat controller W1209S digital dual display (2072)
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Electrical Tester & Multimeter > Thermostat controller W1209S digital dual display (2072)
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Thermostat controller W1209S digital dual display (2072)
Thermostat controller W1209S digital dual display (2072)Technical Parameters
Temperature control range: -50~110℃
Resolution: 0.1℃ at -9.9~99.9, other temperature range 1℃
Temperature measurement accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Backlash accuracy: 0.1 ℃
Refresh rate: 0.5 S
Input power: DC 12V

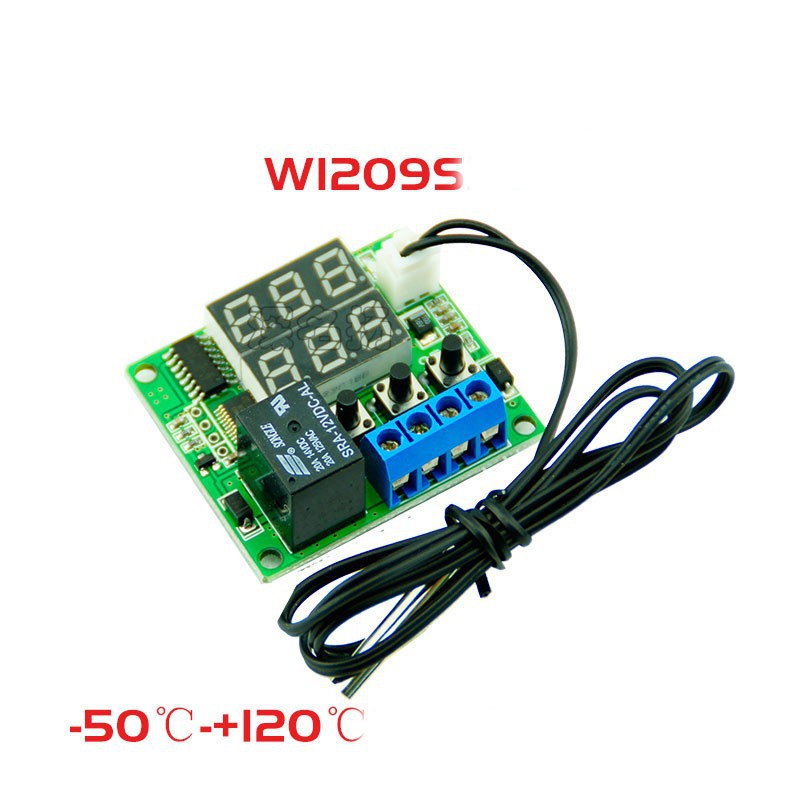

Measurement input: NTC (10K 0.5%) waterproof sensor
Output: 1 relay output, capacity=20A 125VAC, 20A 14VDC
Environmental requirements: -10~60℃, humidity 20%-85%

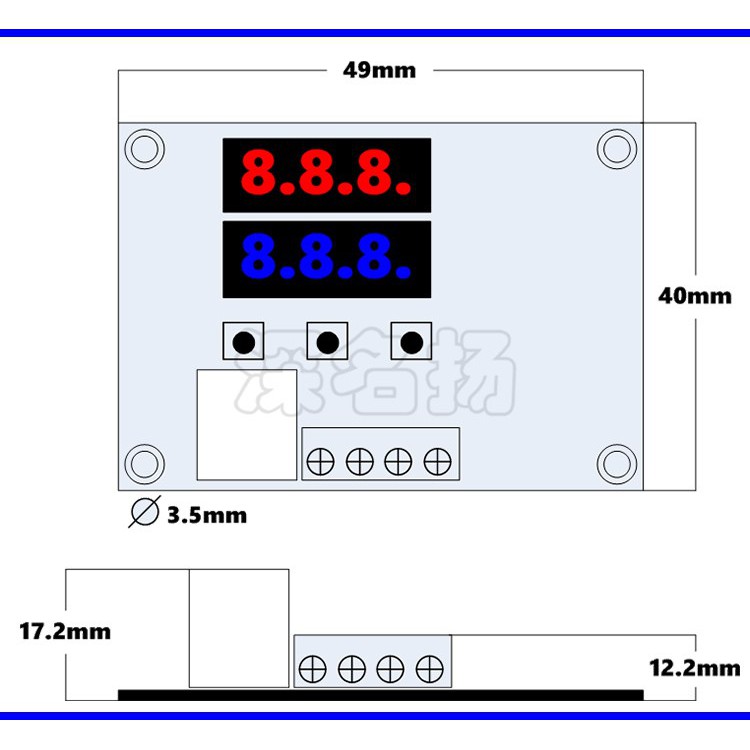

Specification size: 48.5*40mm
Power consumption of the whole machine: quiescent current: ≤10MA pull-in current: ≤65MA
