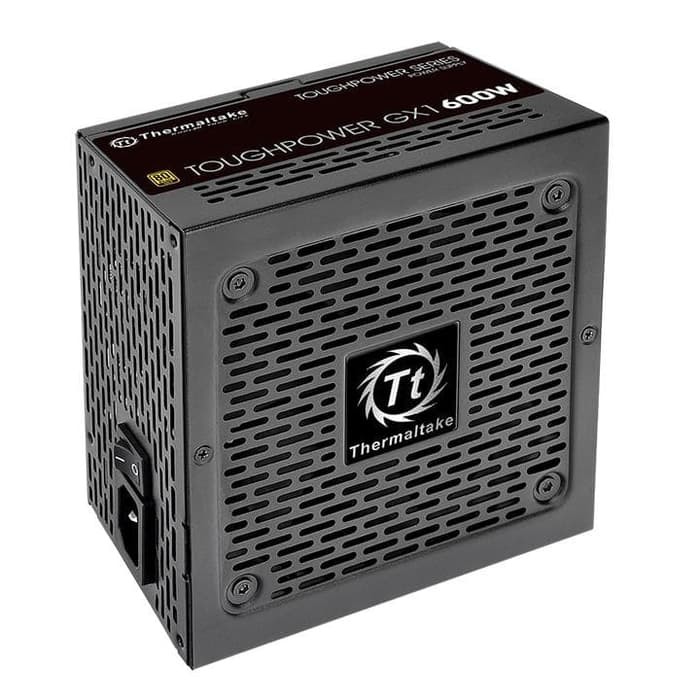

Thermaltake Toughpower GX1 600W Gold

Detail Thermaltake Toughpower GX1 600W Gold

Type : ATX 12V v2.4 and EPS v2.92
Max. Output Capacity : 600W
Peak Output Capacity : 720W
Coldplate Material : Black
Dimension （ W / H / D ） : 150mm(W) x 86mm(H) x 140mm(D)
PFC （Power Factor Correction） : Active PFC
Power Good Signal : 100-500 msec
Hold Up Time : > 12msec at 80% of full load
Input current : 9A max.
Input Frequency Range : 47Hz - 63Hz
Input Voltage : 100V – 240V~
Operating Temperature : 0°C to + 40°C
Operating Humidity : 20% to 90%, non-condensing
Storage Temperature : -20°C to + 70°C
Storage Humidity : 5% to 95%, non-condensing
Cooling System : 12cm fluid dynamic bearing fan
Efficiency : Meet 80 PLUS®Gold at 115Vac input.
MTBF : 100,000 hrs minimum
Safety Approval : CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark
PCI-E 6+2pin : 2


Thermaltake Toughpower GX1 600W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic Bearing Fan, <±3% tight voltage regulation, Japanese 105°C/221°F main capacitors and premium components. Its near silent operation, trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Low Ripple Noise
The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
