THERMALTAKE TOUGHPOWER GRAND RGB 750W GOLD RGB SYNC EDITION

Detail THERMALTAKE TOUGHPOWER GRAND RGB 750W GOLD RGB SYNC EDITION

Model
Brand Thermaltake
Model PS-TPG-0750FPCGUS-S
Series Toughpower Grand RGB SYNC Gold

Details
Type Intel ATX 12V 2.4 & EPS 12V 2.92
Maximum Power 750W
Fans 1 x Patented 256 color Riing 14 (140mm) RGB SYNC fan
Fan LED RGB
PFC Active
Main Connector 24Pin
+12V Rails Single
PCI-Express Connector 4 x 6+2-Pin
SATA Power Connector 9
SLI SLI Ready
CrossFire CrossFire Ready
Modular Full Modular
Efficiency > 90%
Energy-Efficient 80 PLUS GOLD Certified
Over Voltage Protection Yes
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10A

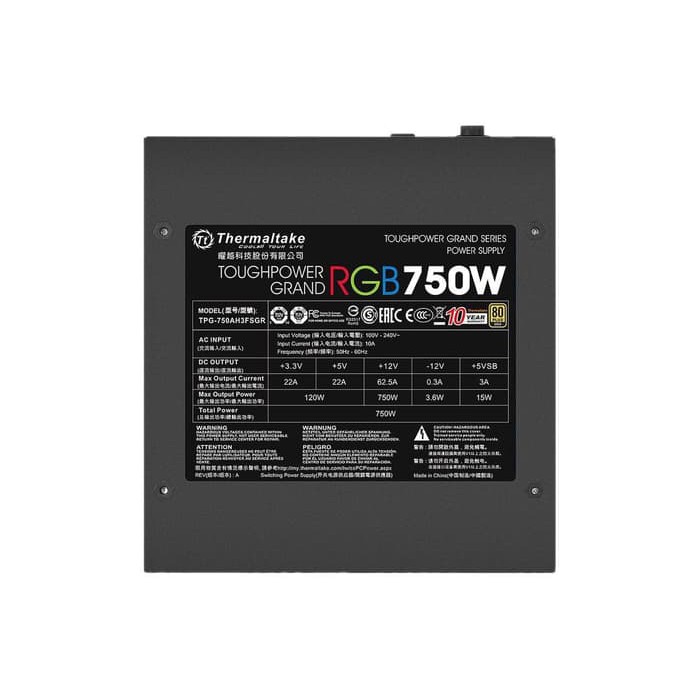

Output +3.3V@22A, +5V@22A, +12V@62.5A, -12V@0.3A, +5VSB@3A
MTBF 120,000 Hours
Approvals CE/ cTUVus/ TÜV SÜD/ FCC/ CCC/ BSMI/ EAC
Dimensions 3.39" x 5.91" x 6.30"

Features

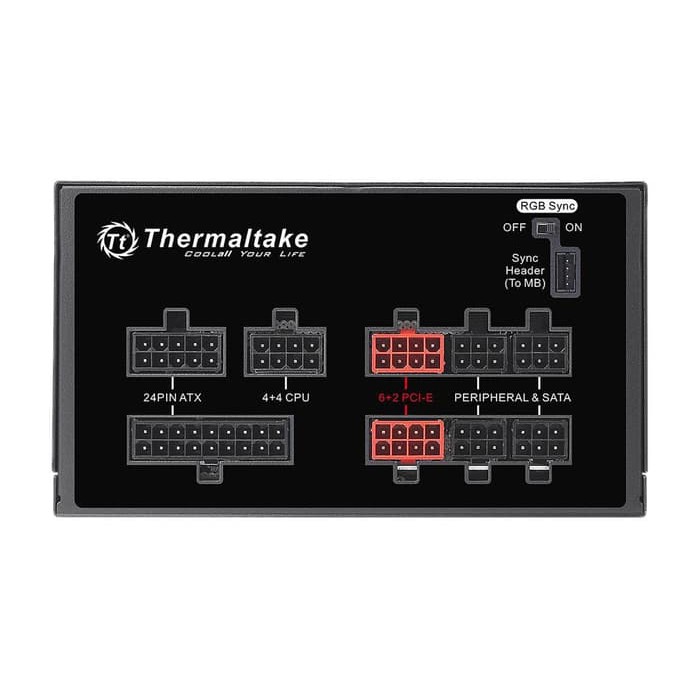

Connectors
1 x 24-pin ATX
1 x 4+4pin EPS
4 x 6+2 PCI-E
9 x SATA
4 x Peripheral
1 x Floppy
1 x RGB SYNC Cable

Features
- Compliance with Intel ATX 12V 2.4 & EPS 12V 2.92 standards
- 80 PLUS GOLD certified - 90% efficiency under typical load
- Single +12V rail Design offers 62.5A of power and includes (4x) PCI-E 6+2 power connectors
- Patented 256 color Riing 14 (140mm) RGB SYNC fan (ASYS, Gigabyte, MSI, ASRock, Biostar)
- Smart Zero Fan: Minimizes undesired noise with 0dB options available
- Full modular design with low profile black flat cables
- 100% 105°C / 221°F High quality Japanese capacitors.
- Intel Skylake’s C6/C7 states & ErP ready
- Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power.
