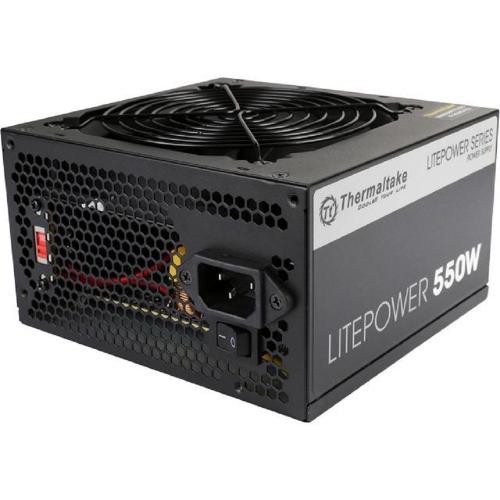

Thermaltake Lite Power 550W Power Supply

Detail Thermaltake Lite Power 550W Power Supply

Thermaltake Lite Power 550W Power Supply
- Active PFC to improve energy efficiency and provide reliable power.
- Ultra Quiet 120mm Fan
- Extra Long EPS/ATX 12V 4+4 pin CPU cable
- Black coating design, the suitable power supply for your stylish black coating chassis.
- Industrial Grade Protection Design : Over Voltage/Over Power/ Short Circuit Protection

P/N : LTP-0550P-2
Type : ATX 12V 2.3
Max. Output Capacity : 550W
Color : Black
Dimension : 150mm x 86mm x 141mm
PFC （Power Factor Correction）: W/Active PFC
Power Good Signal : “Power Good” signal rise time is within 1ms.
Hold Up Time : 16msec (minimum) at 80% of Max. load at 115/230 Vac input.
Input current : 230Vac/7Amax
Input Frequency Range : 60Hz / 50Hz
Input Voltage : Only 230V
Operating Temperature : 5°C to +40°C
Operating Humidity : To 85% relative humidity
Storage Temperature : -40°C to +35°C
Storage Humidity : To 95% relative humidity
Cooling System : 120mm Fan: 1600-1900 RPM
Efficiency : 70% typical at nominal line, maximum load.
MTBF : 100,000 hrs minimum
Safety Approval : CE, TUV SUD, CB, EAC and RCM certified.

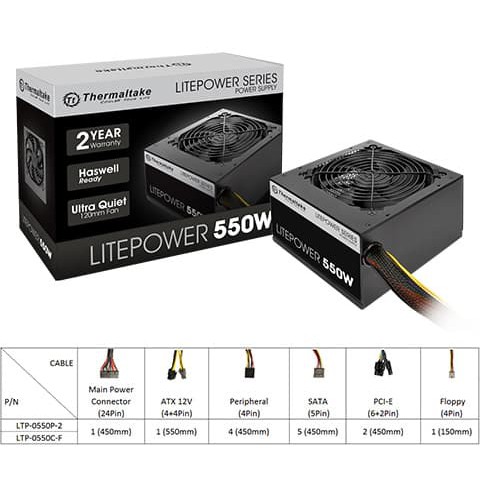

PCI-E 6+2pin : 6+2pin PCI-E Connector x 2

Main Power Connector (24Pin) x1
EPS/ATX 12V Connector 8(4+4)Pin x1
PCI-E (6+2Pin) x2
SATA x5
Peripheral (4Pin) x4
FDD (4Pin) x1
