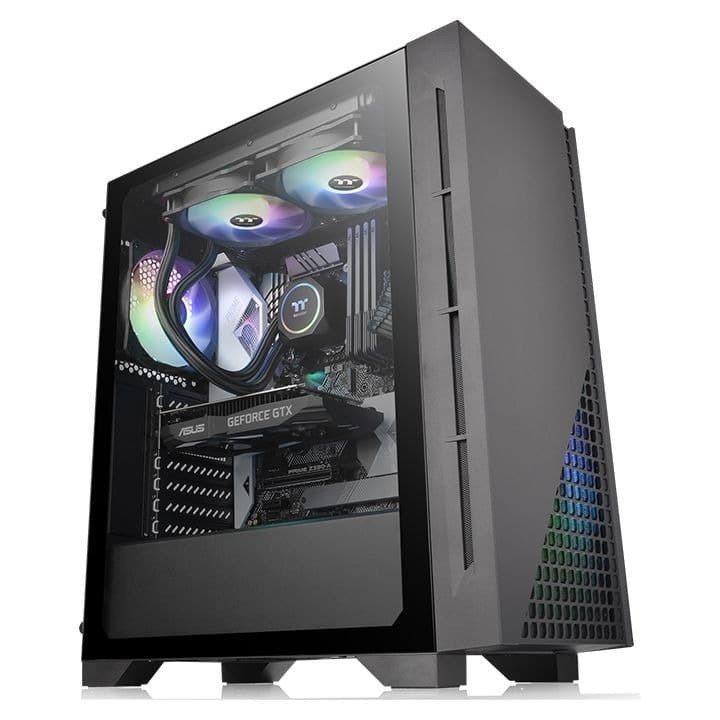

P/N CA-1R8-00M1WN-00 SERIES H Series MODEL H330 TG CASE TYPE Middle tower DIMENSION (H X W X D) 419 x 210 x 480 mm (16.5 x 8.27 x 18.9 inch)

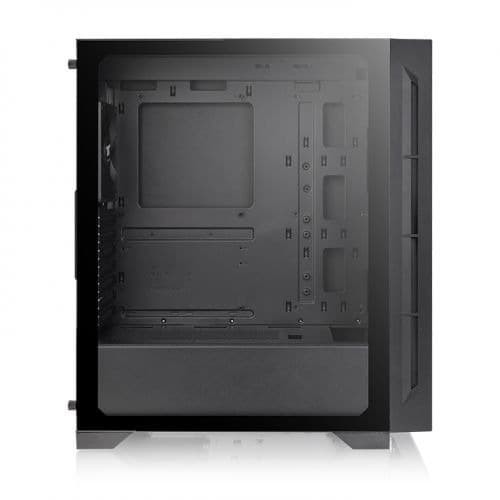

NET WEIGHT 6.12 kg / 13.49 lb SIDE PANEL 4mm Tempered Glass x1(Left) COLOR Exterior & Interior : Black MATERIAL SPCC COOLING SYSTEM Rear (exhaust) : 1 x 120 x 120 x 25 mm fan (1000rpm, 16 dBA) DRIVE BAYS -ACCESSIBLE -HIDDEN

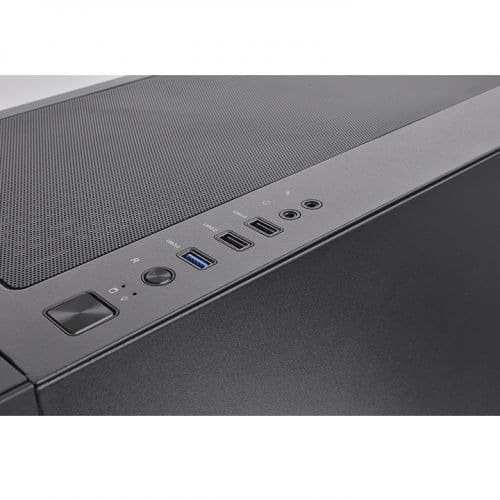

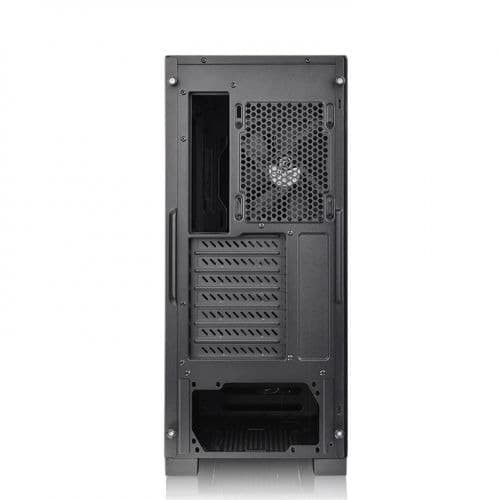

2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket) EXPANSION SLOTS 7 MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) I/O PORT 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, PSU Standard PS2 PSU (optional) FAN SUPPORT Front: 3 x 120mm or 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm 2 x 200mm or 1 x 200mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Rear: 1 x 120mm, RADIATOR SUPPORT Front: 1 x 360mm or 1 x 240mm or 1 x 120mm 1x 280mm or 1 x 140mm Top: 1 x 240mm or 1 x 120mm Rear: 1 x 120mm CLEARANCE CPU cooler height limitation: 150mm PSU length limitation: 160mm(With HDD Rack) 200mm(Without HDD Rack) VGA length limitation: 300mm RAM height limitation: 60mm(With radiator series)
