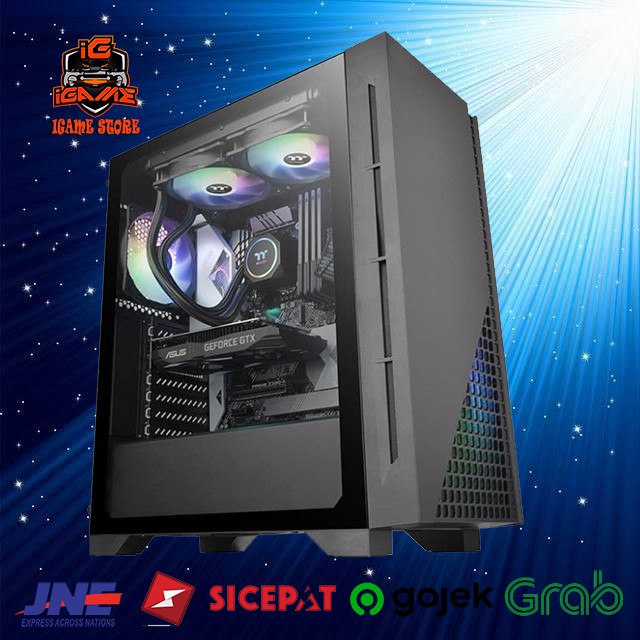

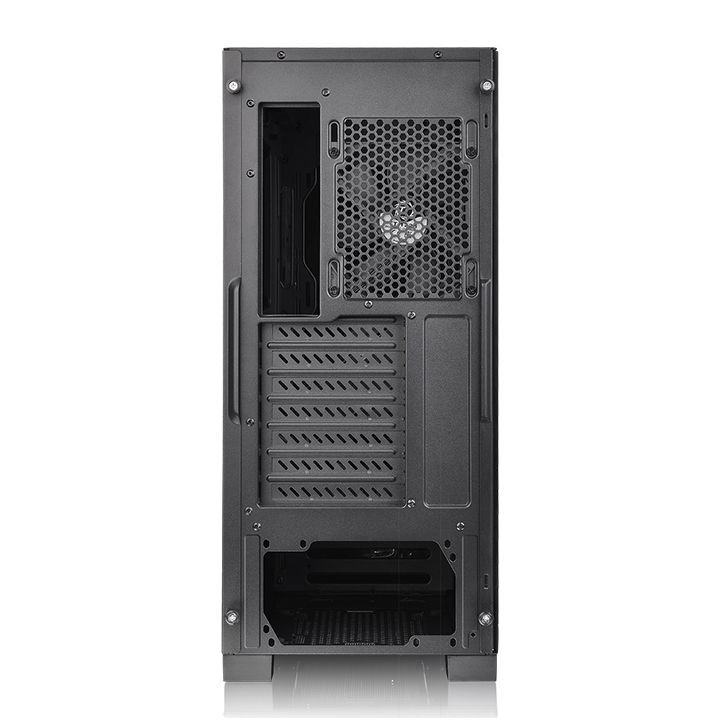

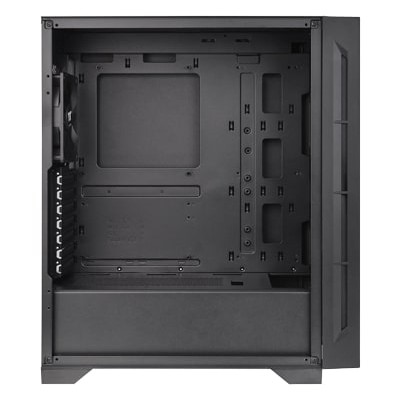

Thermaltake H330 Tempered Glass Mid Tower Chassis [1FAN INCLUDED] MANTUL AGAN

Detail Thermaltake H330 Tempered Glass Mid Tower Chassis [1FAN INCLUDED] MANTUL AGAN

P/N
CA-1R8-00M1WN-00
SERIES
H Series
MODEL
H330 TG
CASE TYPE
Middle tower
DIMENSION (H X W X D)
419 x 210 x 480 mm
(16.5 x 8.27 x 18.9 inch)

NET WEIGHT
6.12 kg / 13.49 lb

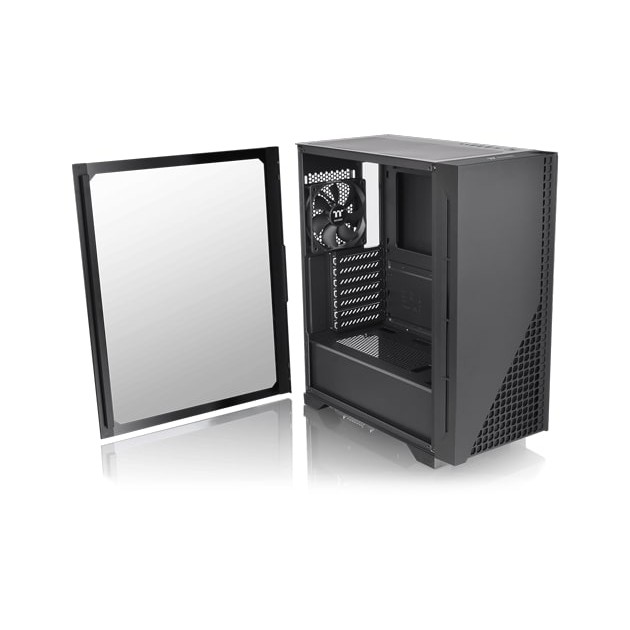

SIDE PANEL
4mm Tempered Glass x1(Left)
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust) :
1 x 120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN

2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
2 x 200mm or 1 x 200mm
Top:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Rear:
1 x 120mm,
RADIATOR SUPPORT
Front: 1 x 360mm or 1 x 240mm or 1 x 120mm
1x 280mm or 1 x 140mm
Top: 1 x 240mm or 1 x 120mm
Rear: 1 x 120mm
CLEARANCE
CPU cooler height limitation: 150mm
PSU length limitation: 160mm(With HDD Rack)
　　　　　　　　　 200mm(Without HDD Rack)
VGA length limitation: 300mm
RAM height limitation: 60mm(With radiator series)

DI ANJURKAN MENGGUNAKAN PACKING KAYU , JIKA TIDAK MENAMBAHKAN PACKING KAYU JIKA ADA KERUSAKAAN BUKAN TANGGUNG JAWAB KAMI ..

LINK PACKING KAYU :
https://shopee.co.id/product/196160561/5262384451/

Gambar produk
