Thermaltake Core P5 - ATX Wall-Mount Chassis

Detail Thermaltake Core P5 - ATX Wall-Mount Chassis

Case Type : Mid Tower
Dimension (H x W x D) : 608 x 333 x 570 mm(23.9 x 13.1 x 22.4 inch)
Net Weight : 18.45 kg
Color : Black
Material : SGCC
Drive Bays :
Accessible 1 x 3.5’’ or 2.5’’ (HDD tray)
Hidden 3 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion Slots : 8
Motherboards : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port : USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU : Standard PS2 PSU (optional)
Fan Support : Left Side: 4 x 120mm, 3 x 140mm
Radiator Support Left Side: 1 x 480mm, 1 x 420mm
Clearance :
CPU cooler height limitation:
180mm
VGA length limitation:
280mm (With Reservoir)
570mm (Without Reservoir)
PSU length limitation:
200mm


Thermaltake Core P5 Tempered Glass Edition ATX Wall-Mount Chassis

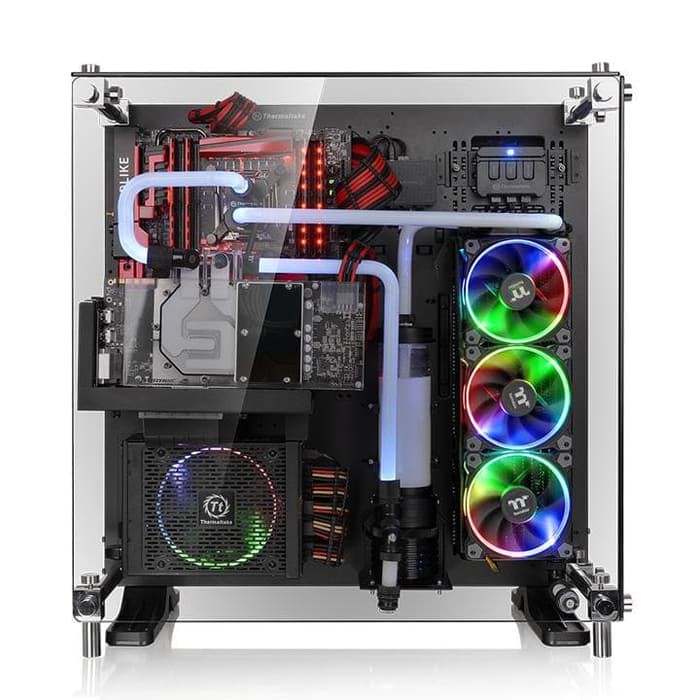

Indulge your system presentation with the new Core P5 Tempered Glass Edition open frame chassis by Thermaltake. The new Core P5 comes with three tempered glass panels plus stainless steel panel secure mechanism and fully modular design that allows flexibility for 3-way placement layouts (Wall mount, Horizontal and Vertical), dual GPU layout locations: Horizontal and Vertical and placement locations for liquid cooling components. Uncover greatness with the Core P5’s panoramic viewing angle with its full tempered glass window to protect and present.
*A standard riser cable is included.


Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
