Detail Thermal HT 02 imager camera infrared industri pabrik tambang batubara laboratorium

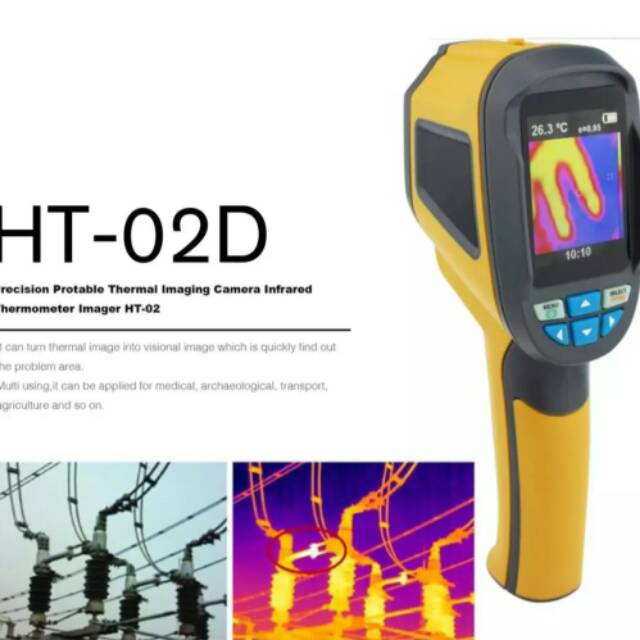

HT-02 Handheld IR Thermal Imaging Camera 60x60 Infrared Image Resolution 3600 Pixel

Handheld thermal imaging camera is widely used in the medical, archaeological, transport, agriculture and so on. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.

Features:

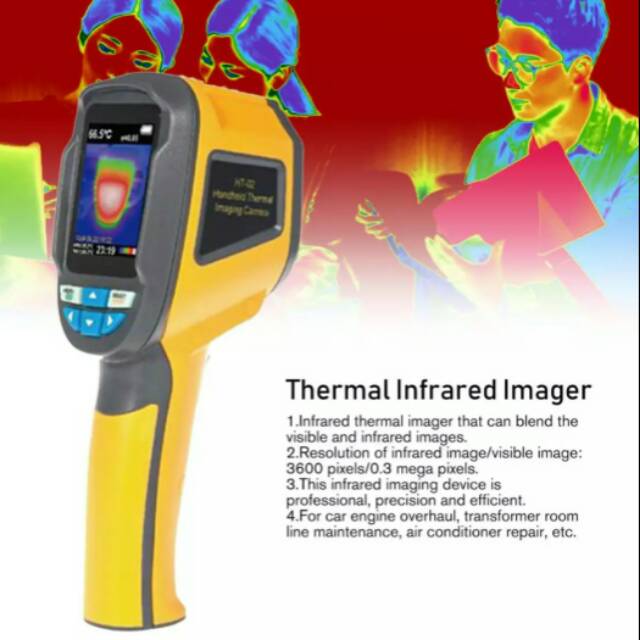

Infrared thermal imager that can blend the visible and infrared images.
Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
This infrared imaging device is professional, precision and efficient.
For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specifications:
Display: 2.4 inch wide viewing angle high-resolution color screen
Resolution: 60 * 60
Resolution of visible image: 0.3 mega pixels.
Total Pixel: 3600
Field angle / Shortest focal distance: 20× 20/0.5m
Thermal Sensitivity: 0.15 degrees
Measuring Mode: Thermopile
Range of Temperature measurement: -20 degrees to 300 degrees (-4 Fahrenheit to 572 Fahrenheit)
Measuring Accuracy: ±2% or ±2 degrees (±4Fahrenheit )
Wave length Range: 8-14um
Emissivity: 0.1-1.0 Adjustable
Image capturing Frequency: 6HZ
Focus distance: Fixed focal distance
Color Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
Memory card:  Mini SD card(4G)
File Format: bmp
Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down
Battery Type: 4 * No5 AA batteries (Not Included)
Battery Life: 6 Hours
Auto Power-off Time: 12 Minutes
Authentication: CE(EN61326-1:2006)
Operating Temperature: -5 degrees to 40 degrees (23 Fahrenheit  to 104 Fahrenheit )
Storage Temperature: -20 degrees to 50 degrees (-4 Fahrenheit to 122 Fahrenheit )
Relative Humidity: 10%RH to 80%RH
