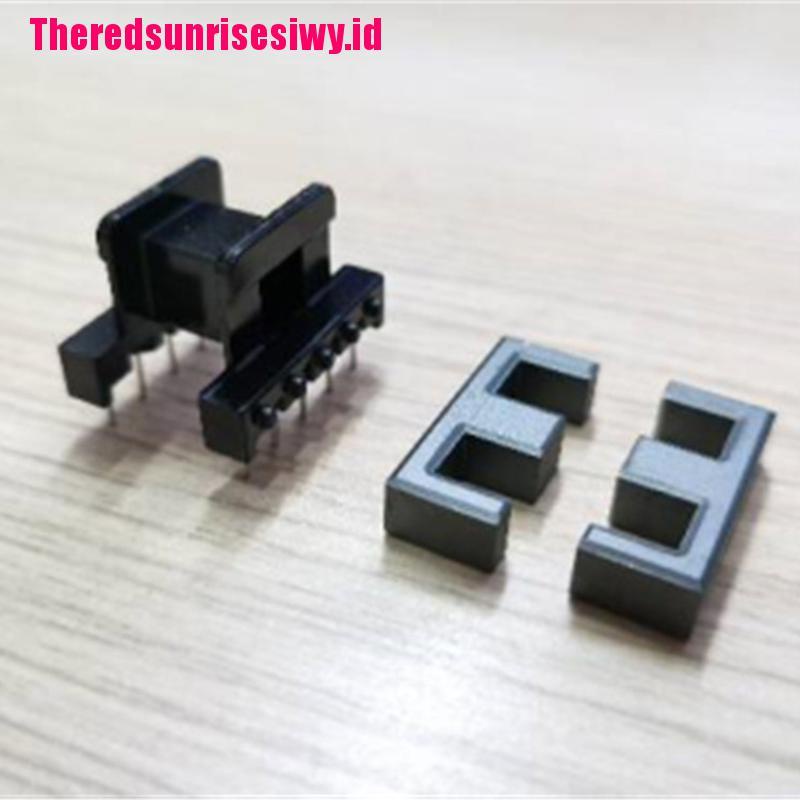

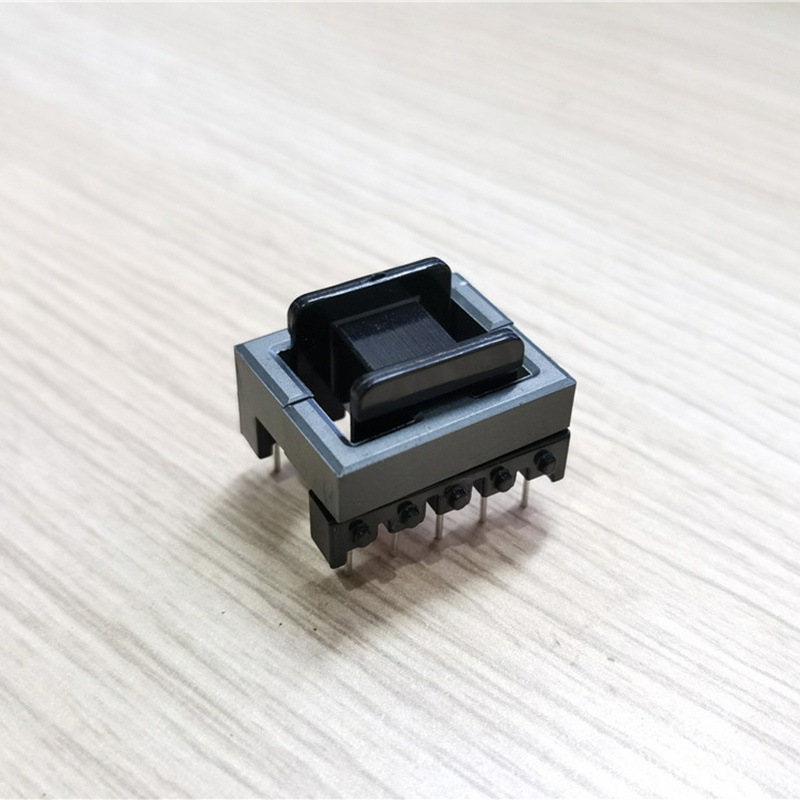

Detail 【Theredsunrisesiwy.id】New 5set PC40 EE25 5+5pins Ferrite Cores bobbin, transformer core, inductor coil
5set NEW EE25 5+5pins Ferrite Cores
AL=1950±25%

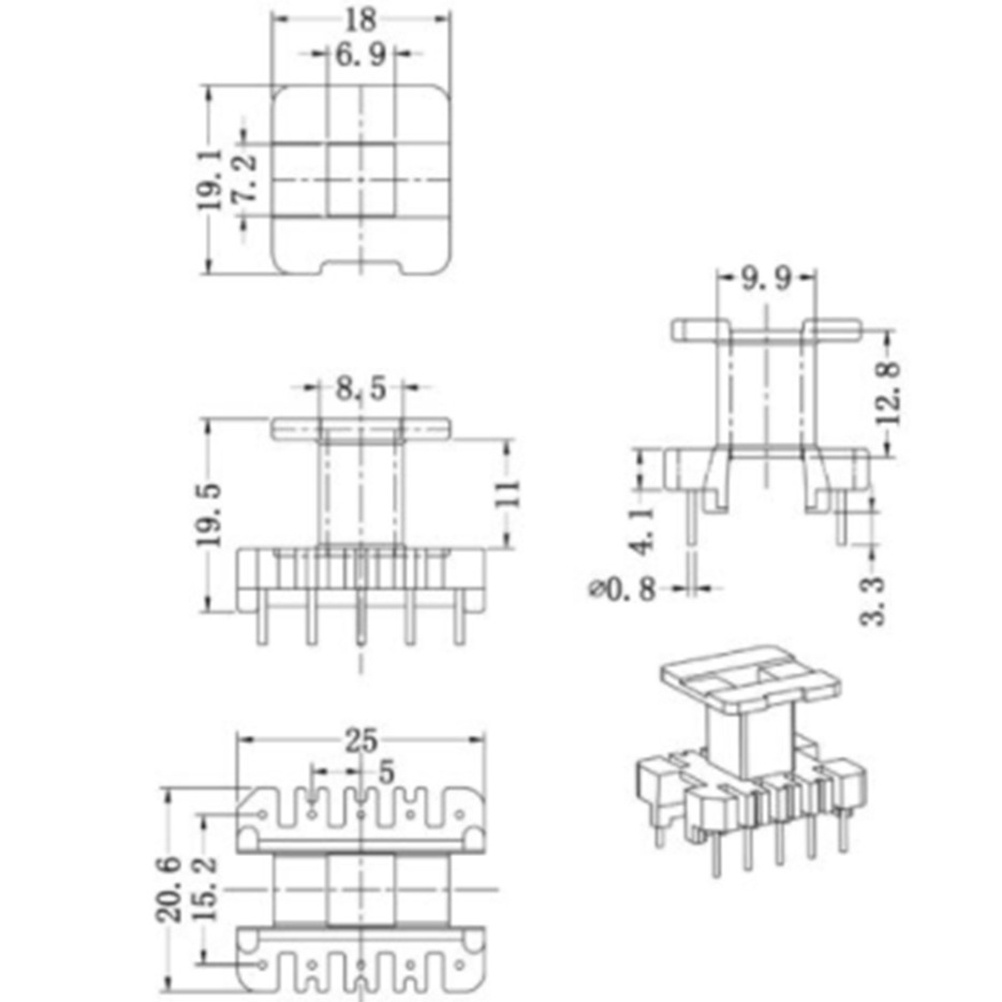

Bobbin size:please check the 4th picture

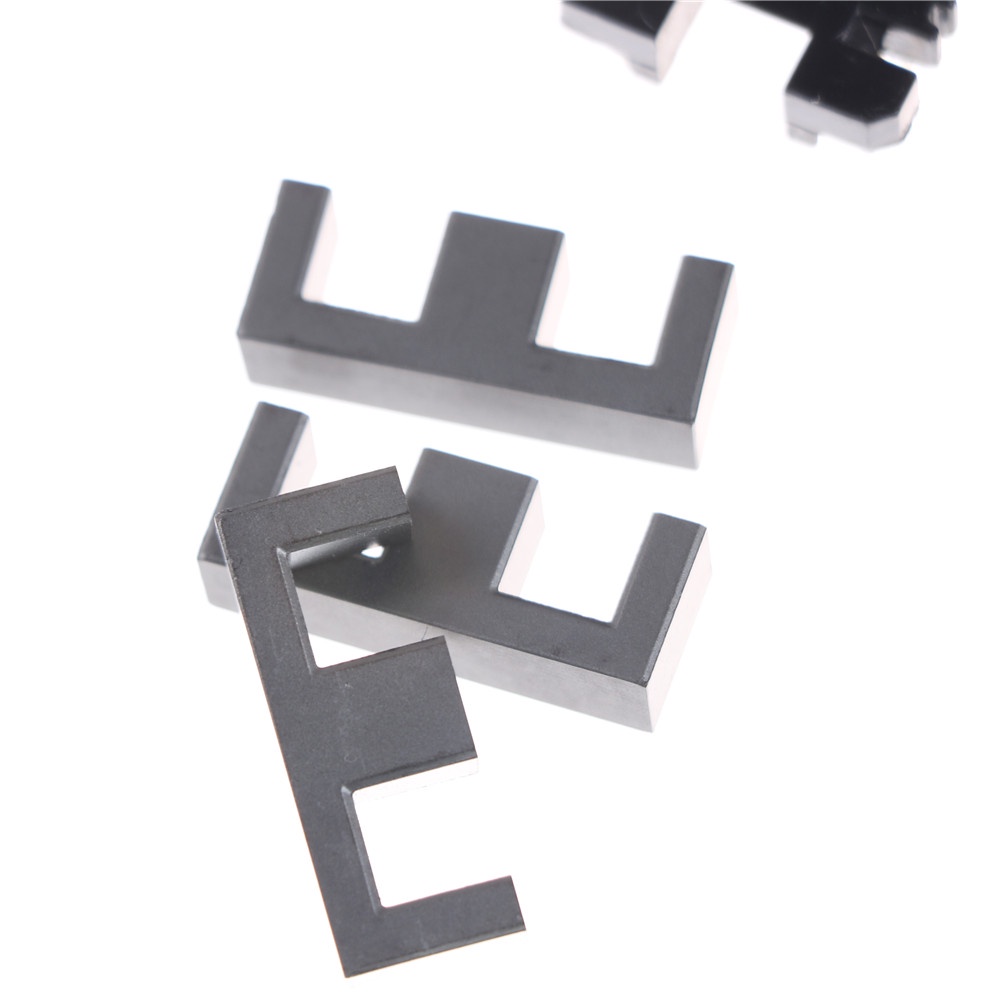

Core size(mm): (as picture)
A:25.0±0.4
B:10.0±0.2
C:6.5±0.3
D:6.3±0.3
E:18.5min
F:7.0±0.3
C1: 1.28mm^-1
Le: 49.5mm
Ae: 38.4mm^2
Ve: 2131mm^3

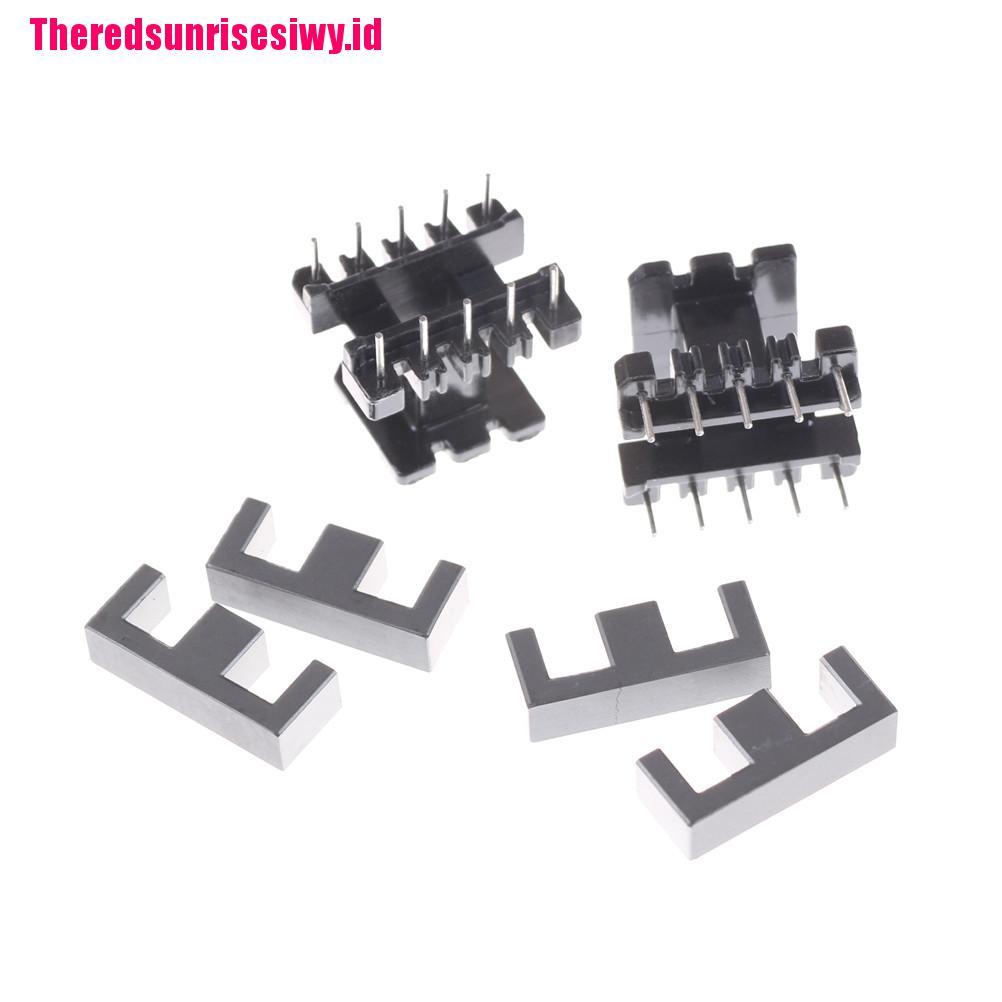

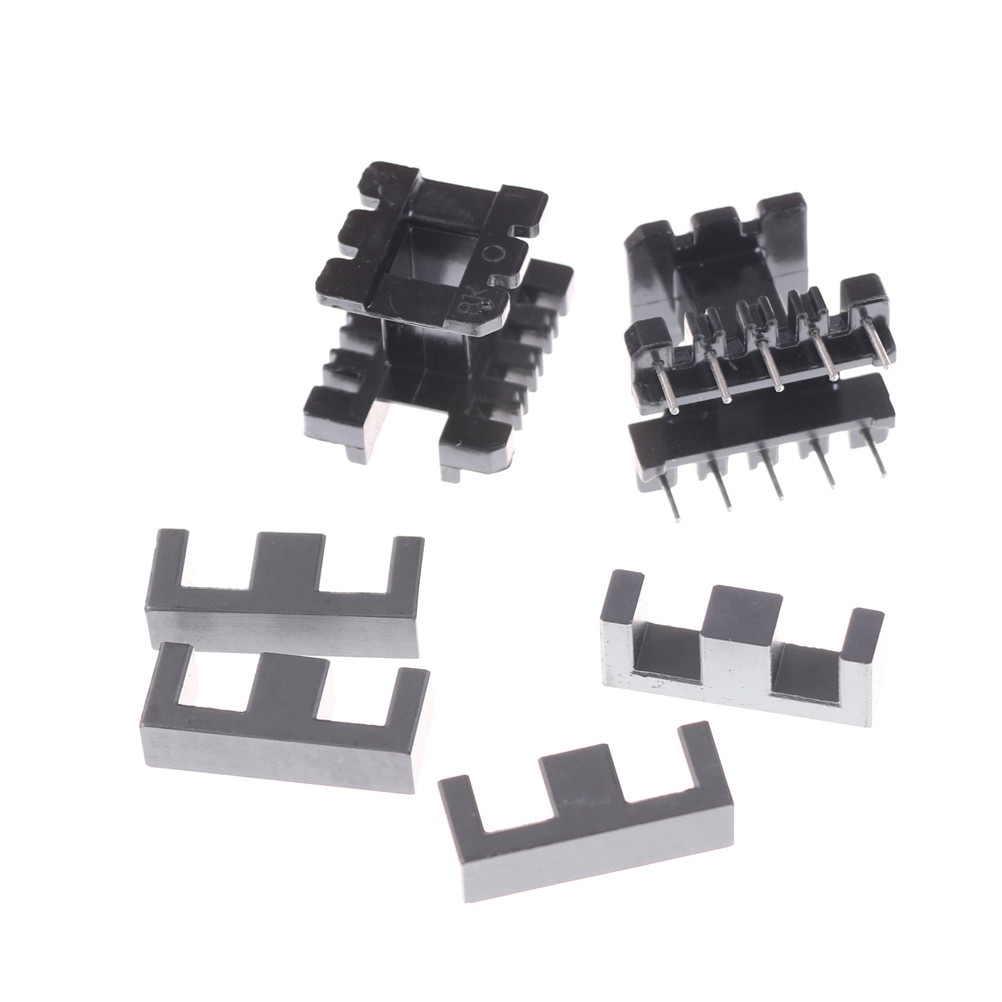

5SET =10 ferrite halves + 5 bobbin
Gambar produk
