TF-RMT01 TFRMT01 Remote Control untuk next program Kontroler TF

Detail TF-RMT01 TFRMT01 Remote Control untuk next program Kontroler TF

Berguna untuk mempermudah eksekusi next program atau program selanjutany kontroler TF.

Koneksi menggunakan kabel serial

Paket meliputi:
1) TF-RMT01
2) Kabel Serial
3) Remote IR

TF-RMT01 Remote Control for TF Serial Series LED Controller

1.Main functions

1)TF-RMT01 used together with our red control cards

2)When connected with RS232,the max distance is 100 meters,when connected with RS485,the max distance is 1000 meters.

3)Remote function.you can use the remote-control unit to select which program to play,change another program to play,brightness play,screen switch.

4)TF-RMT01 its own have buttons,that can select the last program and the next program to play,can select the first three programs to play thought the buttons.


2.Hardware connection diagram and the button function

1)the RS232 connection is 2,3,5,9pin(2 and 3 cross)
(Note:the power get throght the serial port,so that you cannot pull off and on when power on)

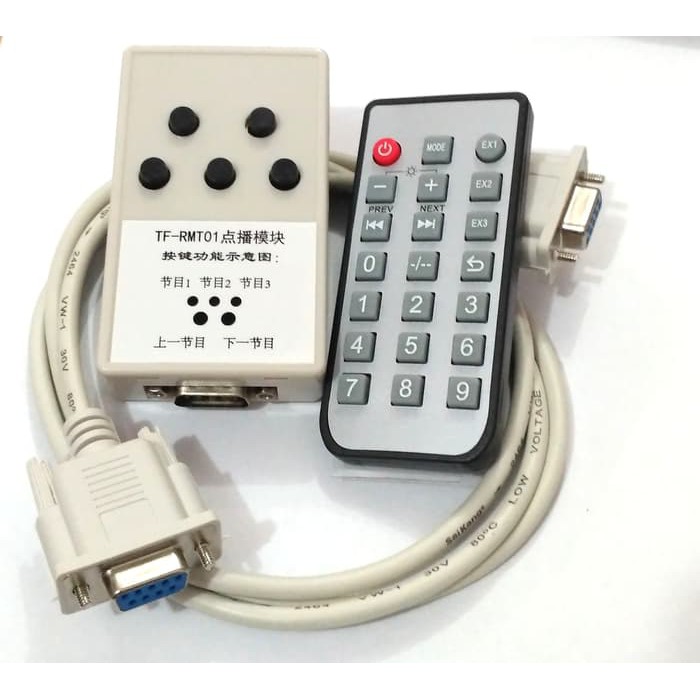

Gambar produk
