TESTER KABEL LAN COAXIAL TELP TRACKER DIGITAL NF308 NF-308 NOYAFA ORI

Detail TESTER KABEL LAN COAXIAL TELP TRACKER DIGITAL NF308 NF-308 NOYAFA ORI

Jual : MULTIPURPOSE CABLE TESTER DIGITAL NF 308

Introduction

Brand : Noyafa Original

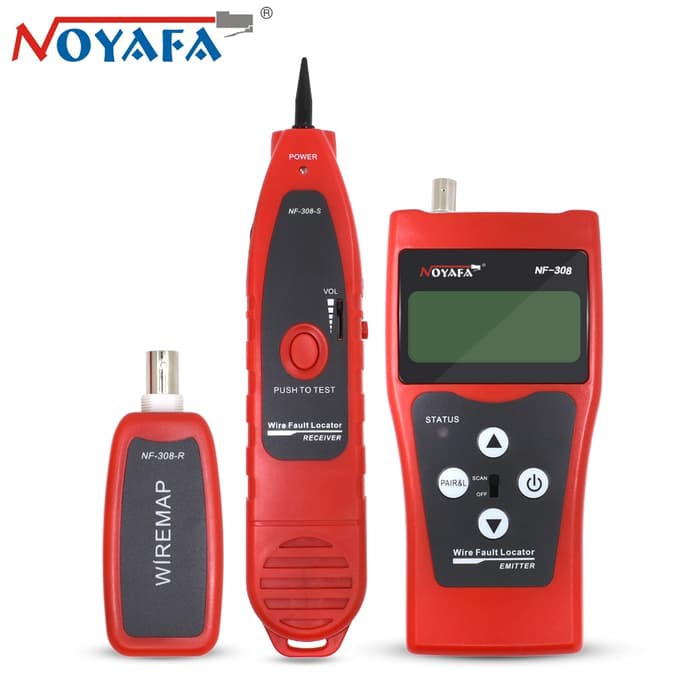

NF-308 multipurpose network cable test & inspection instrument is composed of tester (NF-308), receiver (NF-838-R) and remote identifier.
The new instrument is provided with fluent appearance, excellent hand feel and considerate human-centered design.
It owns three great functions of hunting, wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as, communication lines, comprehensive wiring circuit, etc.
It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.

Specification

Overall dimension:
Main tester: 185 X 105 X 50mm
receiver: 218 x 46 x 29mm
Remote identifier: 84 x 34 x 27mm.
Power:
Two laminated batteries of 9V.
Display:
Special 4 x 16 character big screen LCD lattice
(valid visual field 61.6 x 25.2 mm).
Type of cable tested:
STP/UTP twin twisted cable, coaxial cable, telephone line.
Type of cable detected:
5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires.
Ambient temperature in work: -10~+60

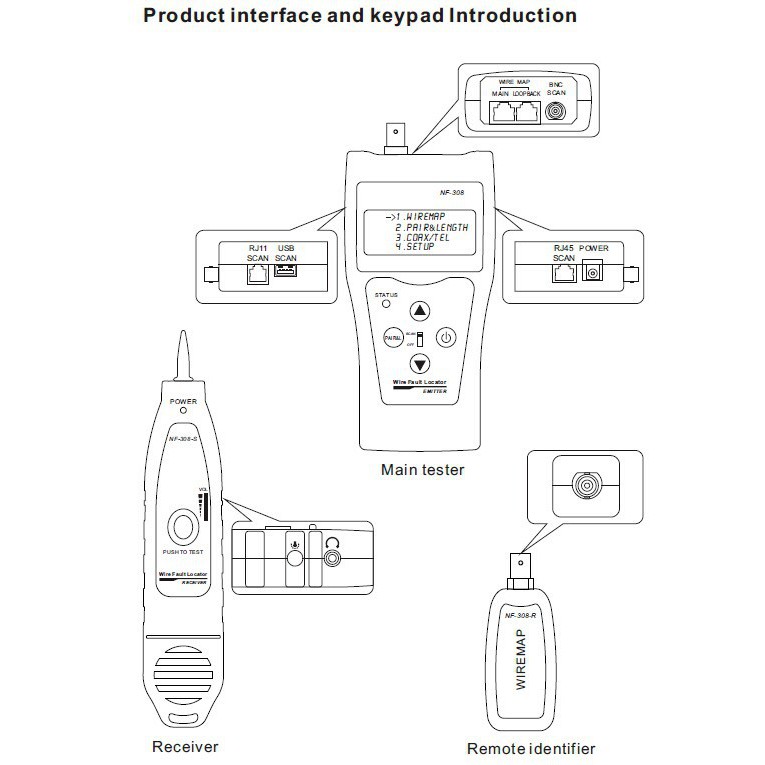

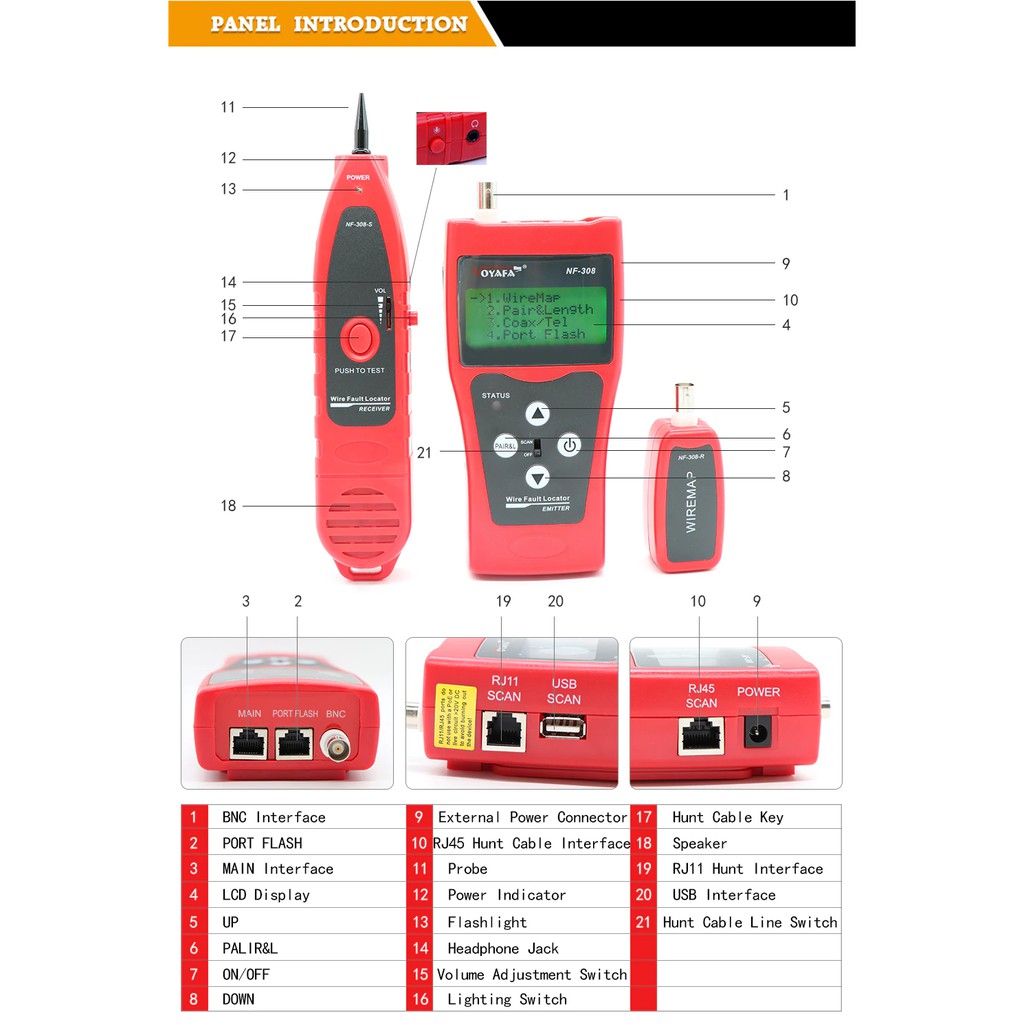

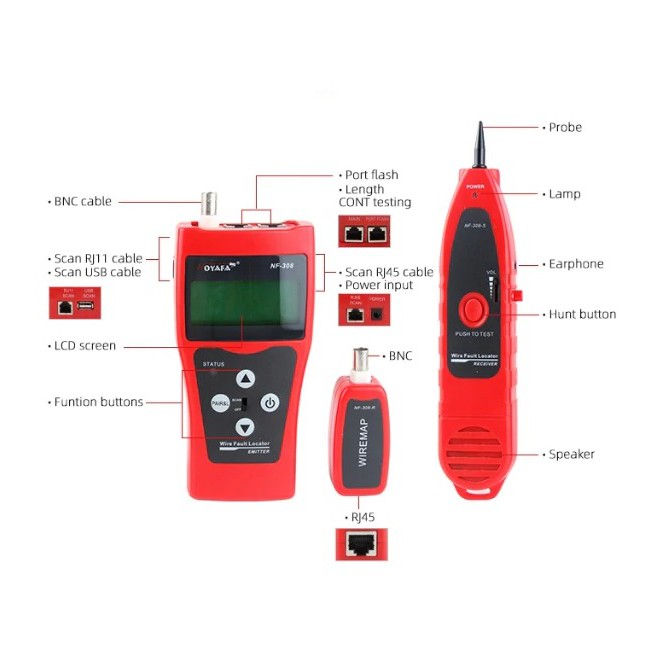

Tester Port:
Tester RJ45 master port (M),
tester LOOPBACK RJ45 port (L),
hunting RJ45 port(With RJ45);
Remote identifier RJ45 port (R)
The extra BNC and RJ11 converters are used to measure and
check the continuity of coaxial cable and telephone line.

Note :
Penting Untuk Diketahui :
Saat test kabel untuk kedua ujung kabel harus dialat tester
Jangan ada salah satu kepala kabel masih dikomputer atau
Alat switch hub modem / router atau alat apapun yang mempunyai
Arus listrik yang akan mengakibatkan kerusakan pada tester “Terima Kasih”
NB : Jangan digunakan pada alat yang mengandung arus listrik,
Bila konsleting tidak ada garansi.

Isi Paket :

1 x Main tester: 18510550mm
1 x receiver: 2184629mm
1 x Remote identifier: 843427mm
1 x earphone
1 x RJ-45 Adapter Line
1 x RJ-11 Adapter Line
1 x RJ-11 to polarity Line
1 x User Manual
1 x Messenger Bag
Paket Tanpa ada Baterai

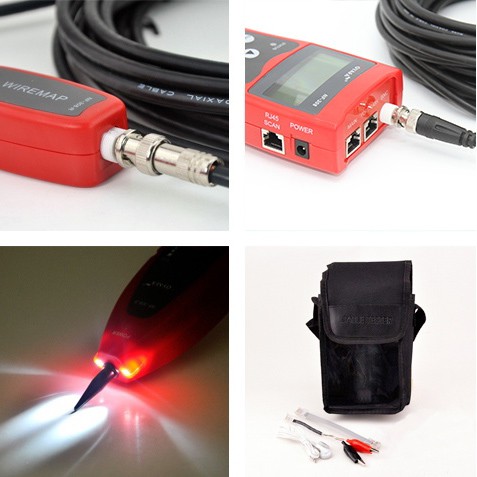

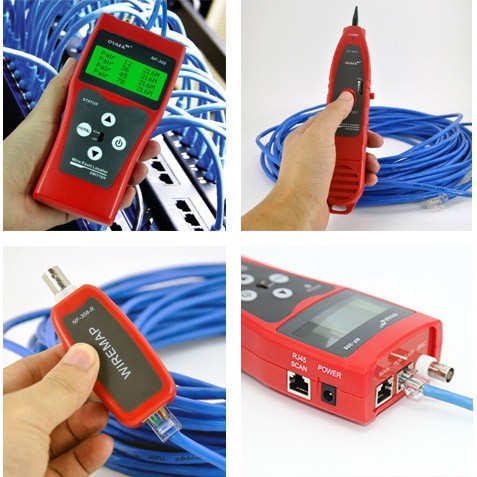

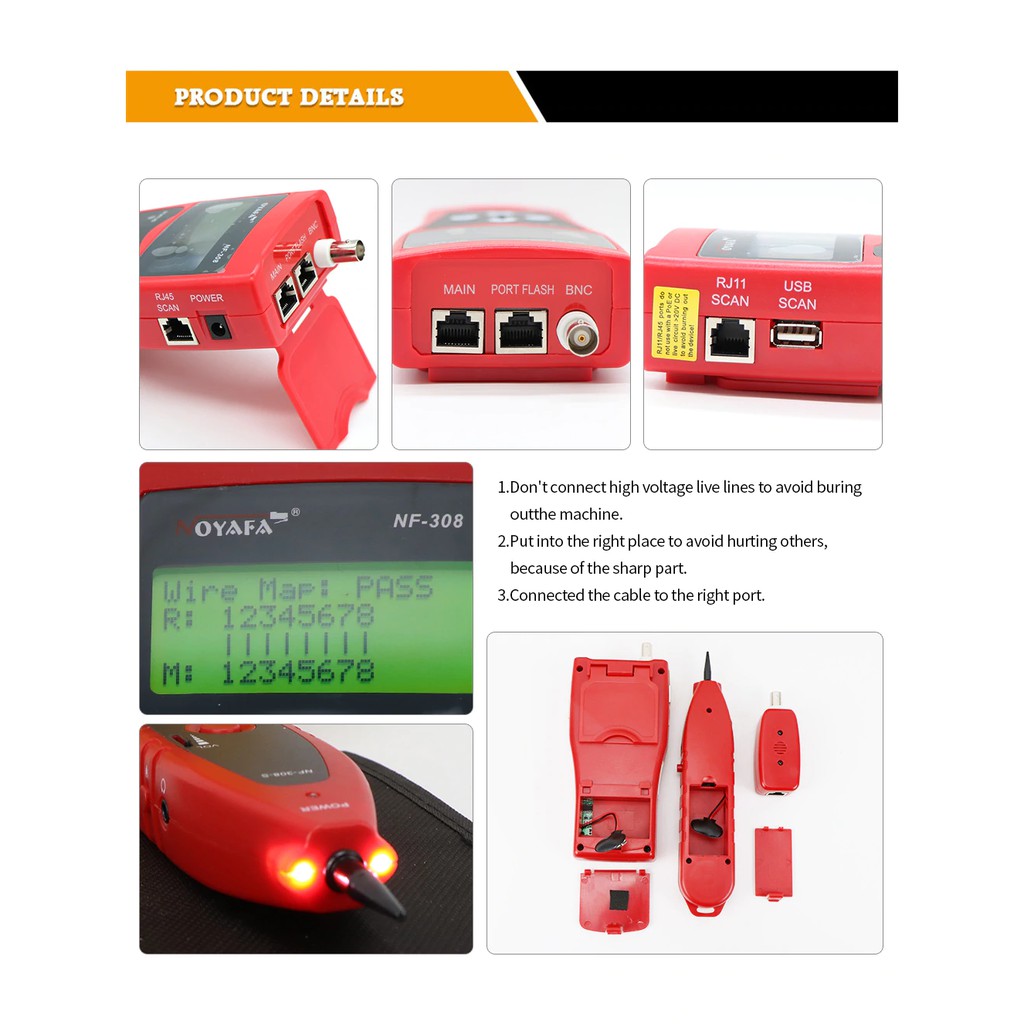

Gambar produk
