Termurah CNC USB MACH3 100Khx Breakout Board Mach3 Board 4 Axis Interface Driver Motion Controller

Detail Termurah CNC USB MACH3 100Khx Breakout Board Mach3 Board 4 Axis Interface Driver Motion Controller

Video perkenalan produk Termurah CNC USB MACH3 100Khx Breakout Board Mach3 Board 4 Axis Interface Driver Motion Controller. Sumber: Shopee.

🌈🌈🌈Mengapa memilih toko kami?
✅Pengiriman Lebih Cepat
✅ Pilih Produk Terbaru & Populer & Berguna dengan rumit
✅ Harga Lebih Rendah & Kualitas Premium
✅Pengembalian Uang Penuh Jika Anda Tidak Menerima Pesanan Anda

Description

Description:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
3. Support automatic probe tool
4. Support Emergency input
5. Support for limit switch
6. Support for connecting electronic handwheel
7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
10. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward
rotating and reverse rotating, pumps and other device
11. 1 status LED, indicate connection status on the board

Spesifikasi

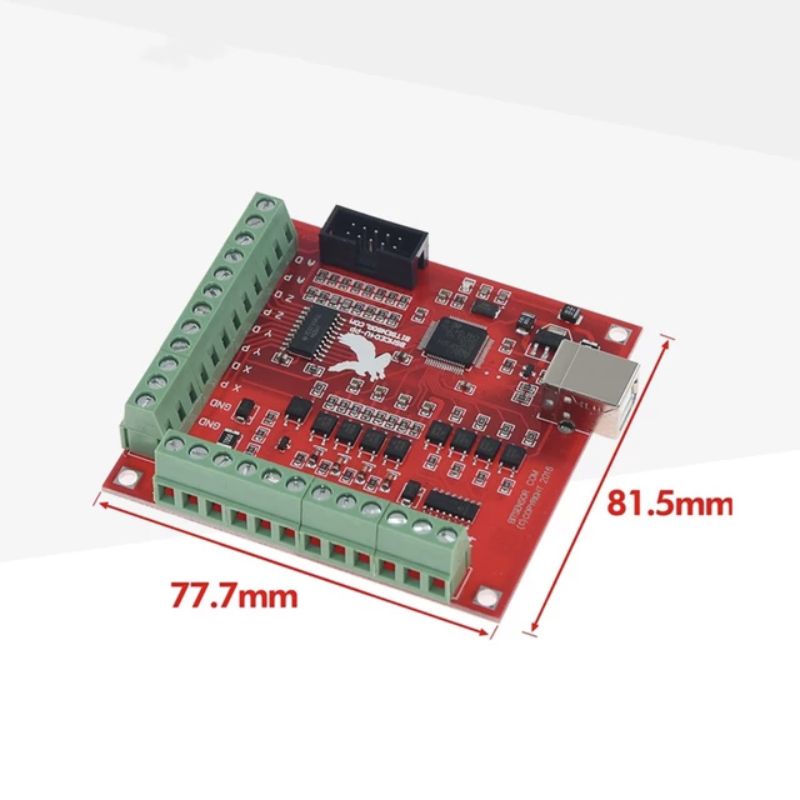

Product Name : Mach3 CNC Motion Control Card
Axis : 4 Axis
Interface USB+RS232 Communction Port
System : Mach3
Port : USB Port
Function : PLC+ATC

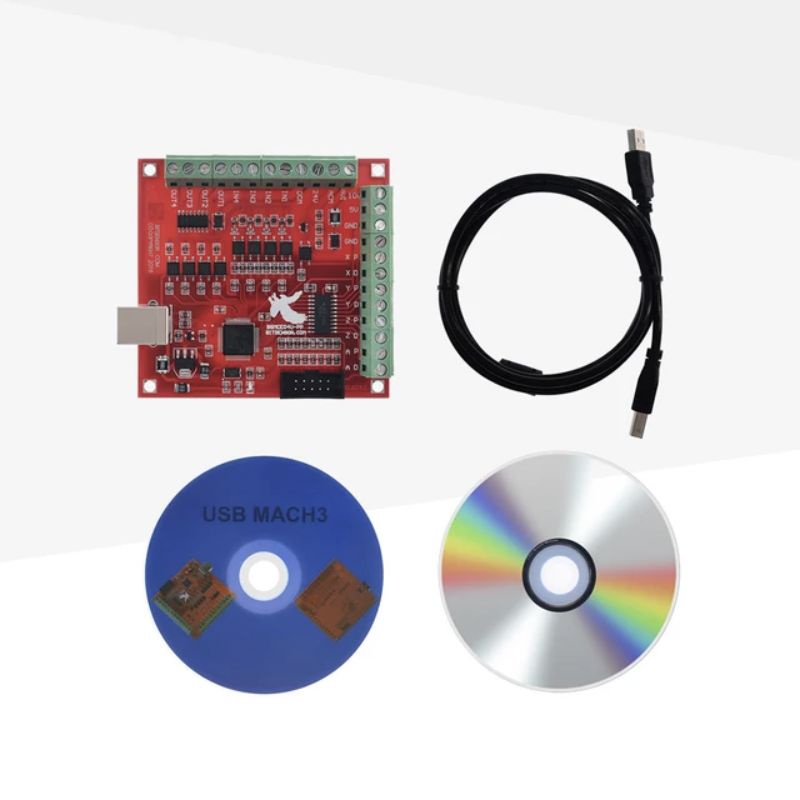

Gambar produk
