Termostat Digital Pengukur Suhu Dengan Sensor Switch Dan Probe 3 Warna W1209 12v
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Perkakas Lainnya > Termostat Digital Pengukur Suhu Dengan Sensor Switch Dan Probe 3 Warna W1209 12v
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

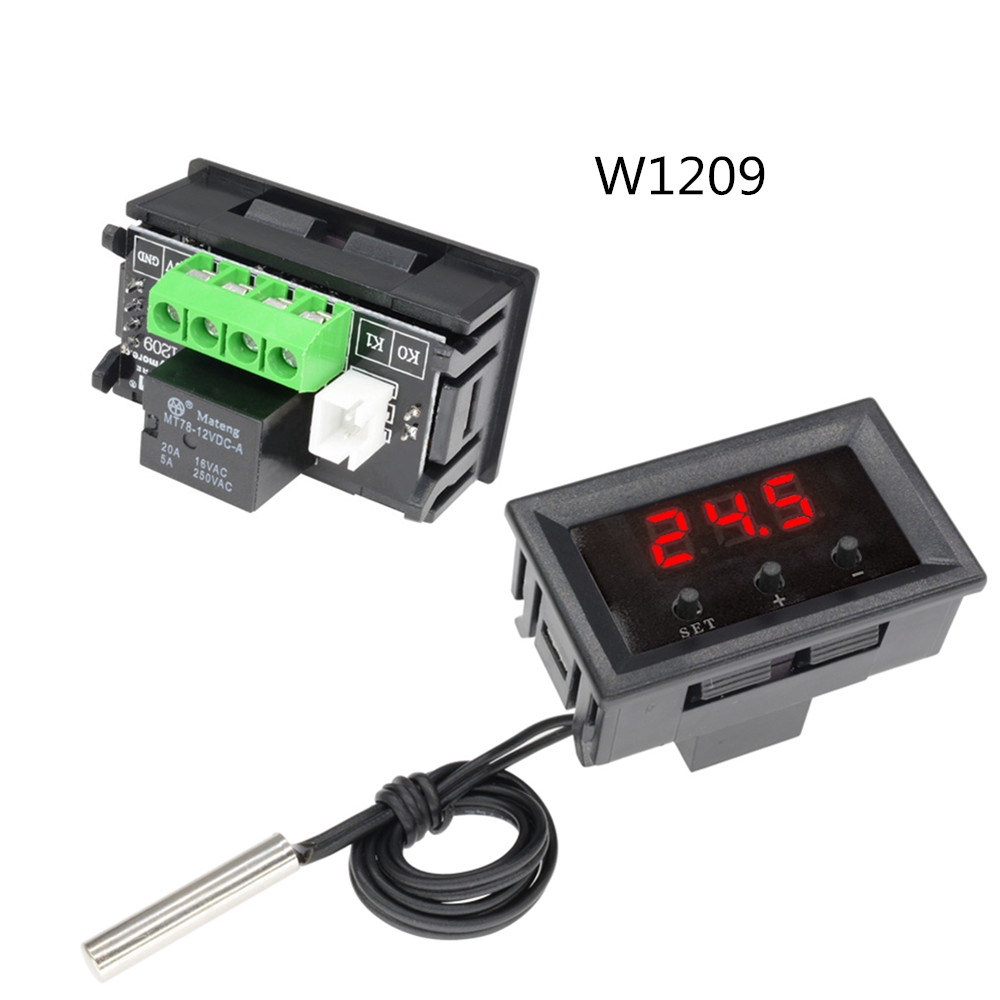

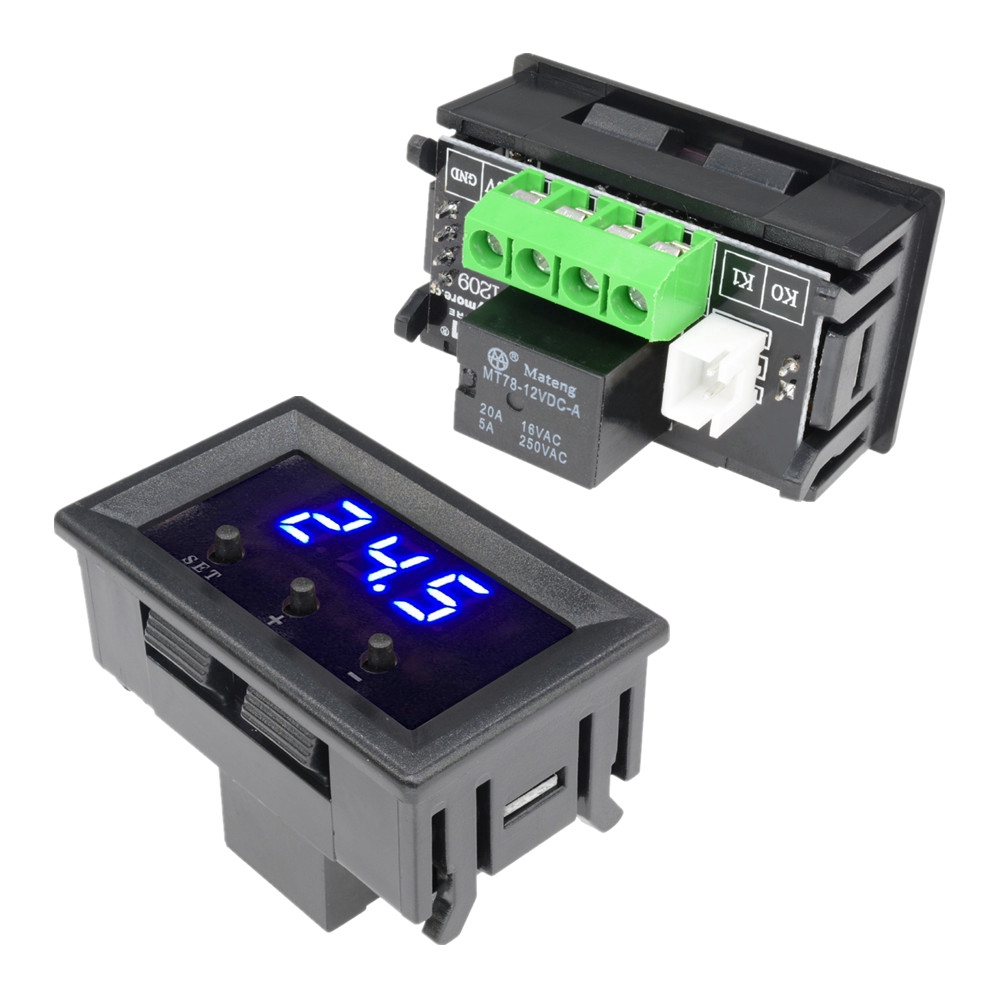

Detail Termostat Digital Pengukur Suhu Dengan Sensor Switch Dan Probe 3 Warna W1209 12v
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount
Description:

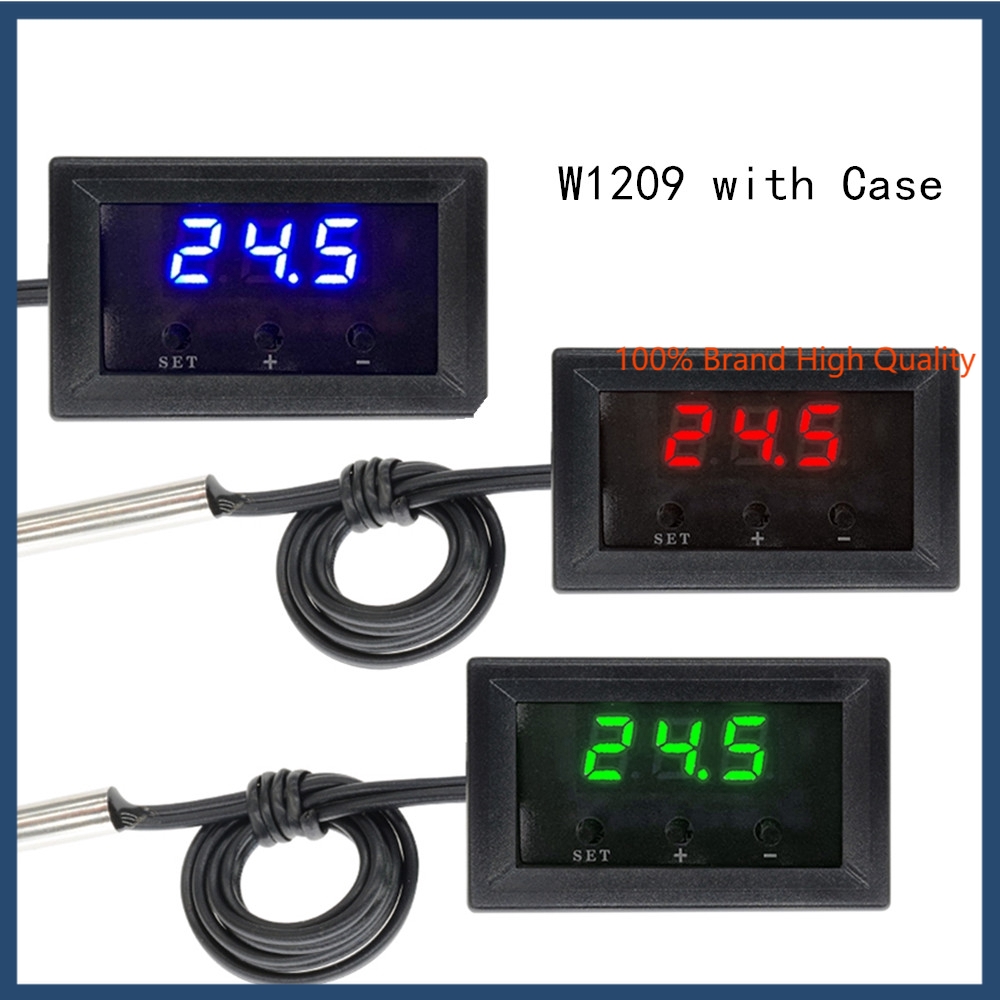

Color: Blue/Green/Red
Temperature control range: -50~110°C
Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1°C
Temperature measurement accuracy: 0.1°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5S
Display type: 0.28 inch three digital tube
Input power: DC 12V
Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 300mm
Output: 1 relay output, 5A 250VAC, 20A 16VAC
Environmental requirements: -10~60°C Humidity 20%-85%
Size: 47.5*18.5*31.5mm
Static current: ≤ 10MA, attract current ≤ 65MA
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Package Included:
1 x -50~110°C W1209 12V Digital Thermostat Temperature Controller Switch Sensor+Probe
#DIYMORE #DIY #Temprerature #Temp #Controller #Control #Thermostat #Sensor #Digital #Switch #W1209 #Probe #Measuring #Levelling #Home #Living #Tool
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
»Still have questions? ….Let's CHAT NOW!
Gambar produk
