Terminal screw 2 pin PCB Block KF301-2P BIRU
Deskripsi singkat
Elektronik > Kelistrikan > Anti Petir > Terminal screw 2 pin PCB Block KF301-2P BIRU
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Terminal screw 2 pin PCB Block KF301-2P BIRU
Spesifications:=================================
- Type : Terminal Blocks
- - Maximum Current Rating : 15A
- Contact Plating : Tin/Zinc
- - Body Orientation : Straight
- Contact Material : Brass/Steel
- - Housing Material : Thermoplastic
- Housing Color : Blue
- - Wire Size : 14-22AWG
- Number of Contacts : 2
- - Number of Rows : 1
- Maximum Voltage Rating : 300VAC
- - Minimum Operating Temperature : -30C
- Maximum Operating Temperature : 105C
- - Mounting : Through Hole
- Termination Method : Solderable
- - Pitch : 5.08mm
- Product Depth : 9mm
- - Product Height : 13mm
- Product Length : 10.86mm
- - Product Type : Connector Terminal Blocks
harga yang tertera untuk 1 pcs

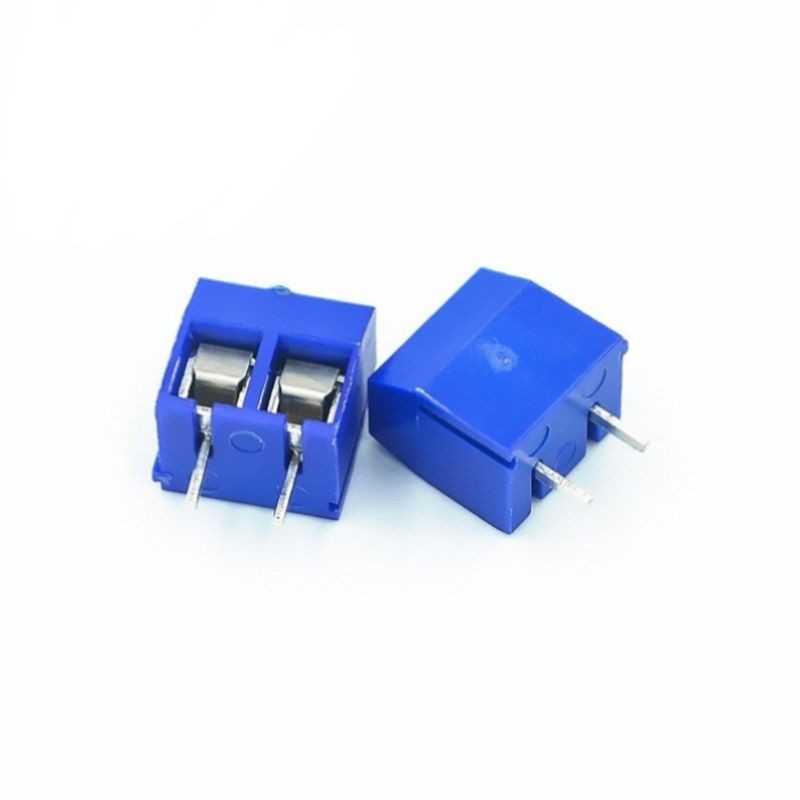

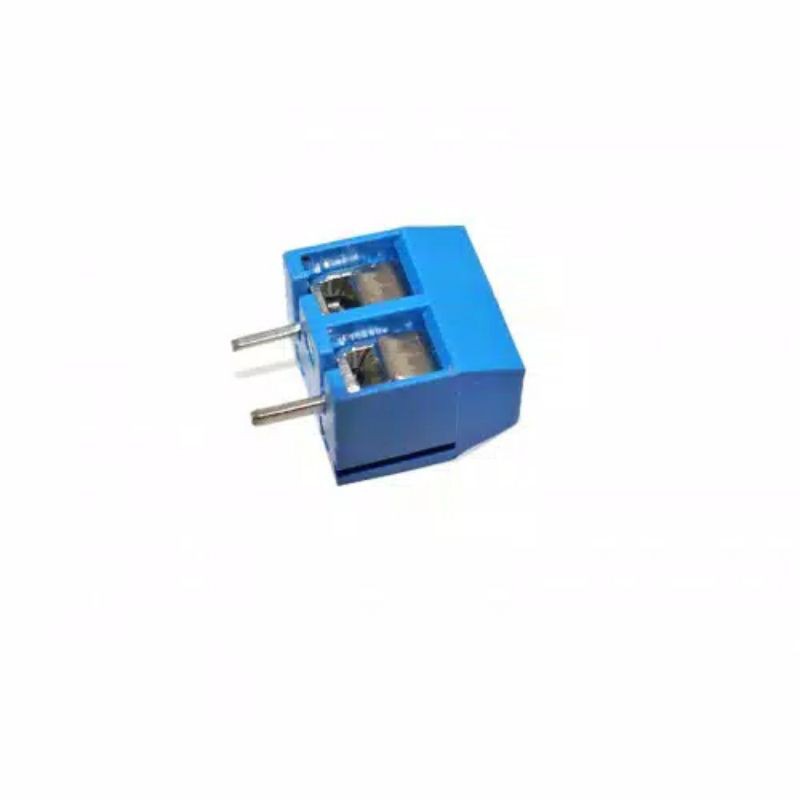

Gambar produk
