Detail Terminal Konektor kabel wago SPL-1/SPL-2/SPL-3/SPL-4/SPL-5 Connector Block 1-1/2-2/3-3/4-4/5-5

Harga yg tertera adalah harga satuan.

HANYA SPL-1 DAPAT DISAMBUNGKAN, SPL LAIN TIDAK BISA DISAMBUNGKAN.

Produk: Universal Compact Wire Wiring Connector Conductor Terminal Block With Lever 0.08-2.5mm2

Fungsi: UNTUK SAMBUNG KABEL YANG KUAT DAN AMAN.

Bahan Body: Modified Nylon (PA66)
Bahan terminal: tembaga fosfor (phosphor copper)
Jumlah koneksi: 2-2 sp 5-5 kabel
Ukuran kabel yg dapat digunakan:
- Kabel Serabut 0,5 - 2,5 mm2
- Kabel Kawat (batangan) 0,5 - 4,0 mm2

Rated voltage: 400 V
Rated surge voltage: 4 kV
Nominal current: 32 A
Connection technology: CAGE CLAMP
Cara kerja: jepit kabel
Warna: abu orange

keunggulan:
- SANGAT KUAT, penahan kabel sistem jepit (clamp) di terminal dalam sangat kuat. Dijamin tidak akan bisa tarik keluar kabel dengan tangan jika tidak angkat tuas orange. Kapasiitas bahkan sampai 400v dan 32A.
- AMAN, semua kabel terisolasi didalam konekter.
- CEPAT, hanya kupas kabel, angkat tuas orange, tusukkan kabel , lalu turunkan tuas.
- RAPI, penyambungan kabel tertata, ukuran konektor kecil. Dapat instalasikan di T Dus, duradus, duct cable, inbow dus dll.

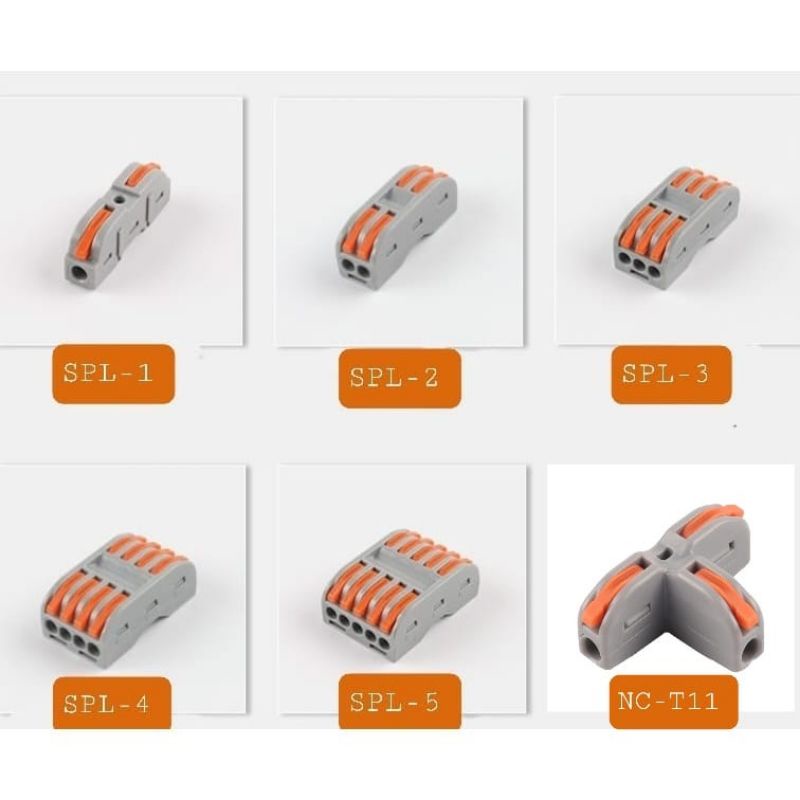

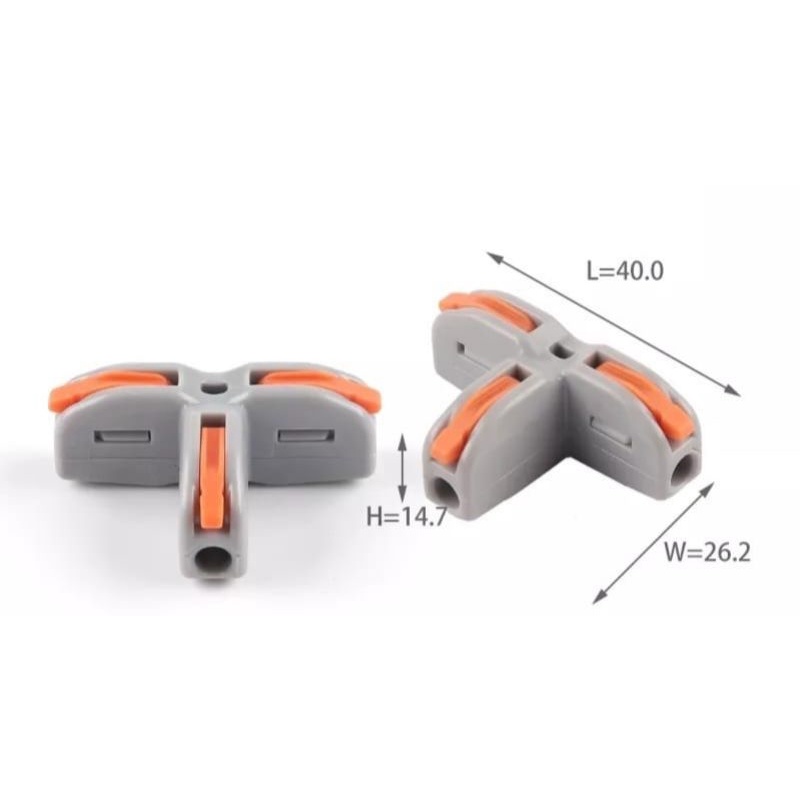

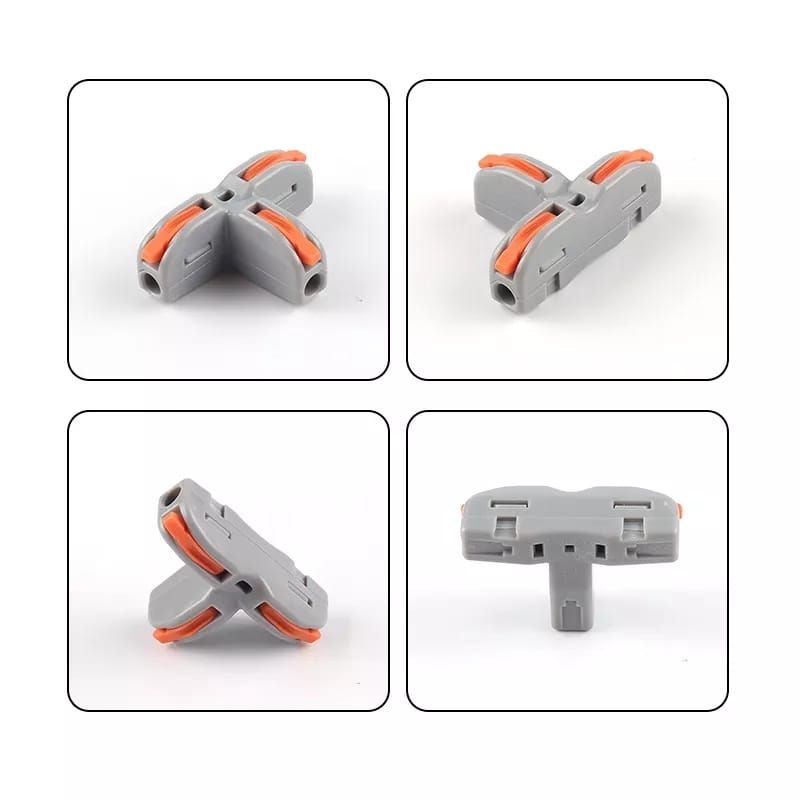

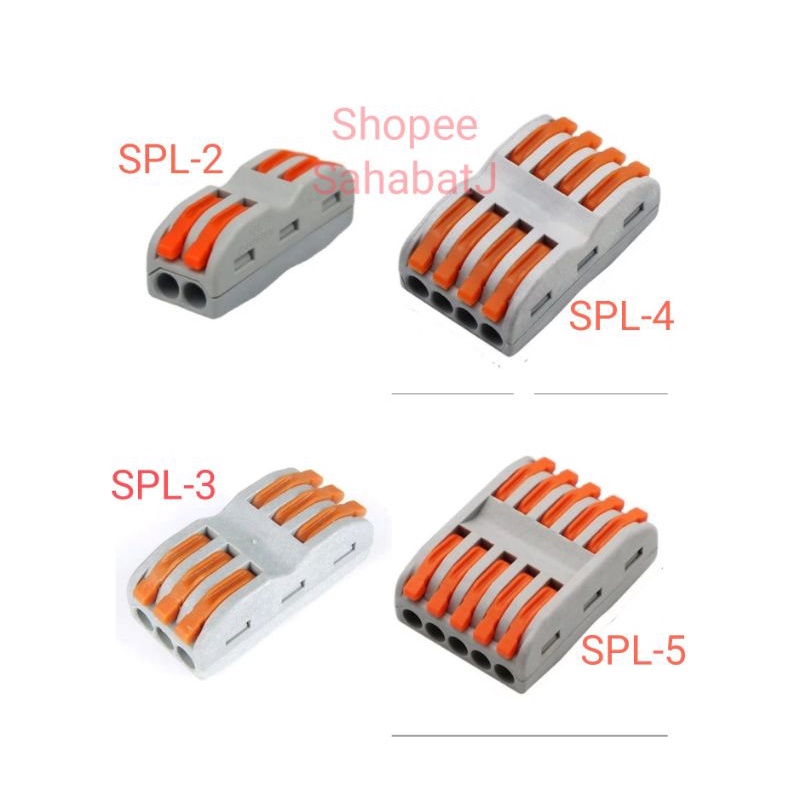

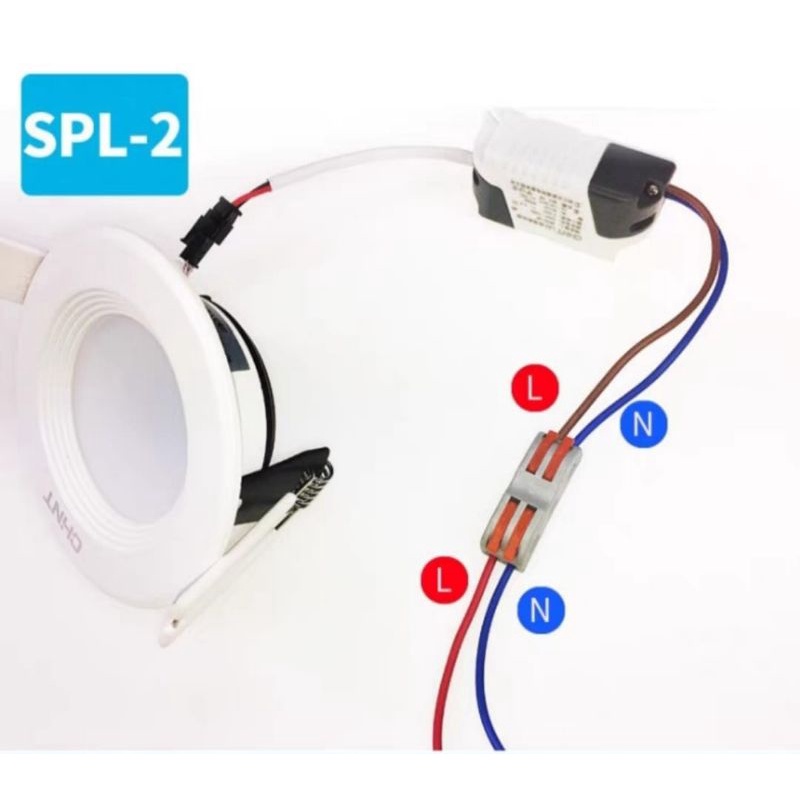

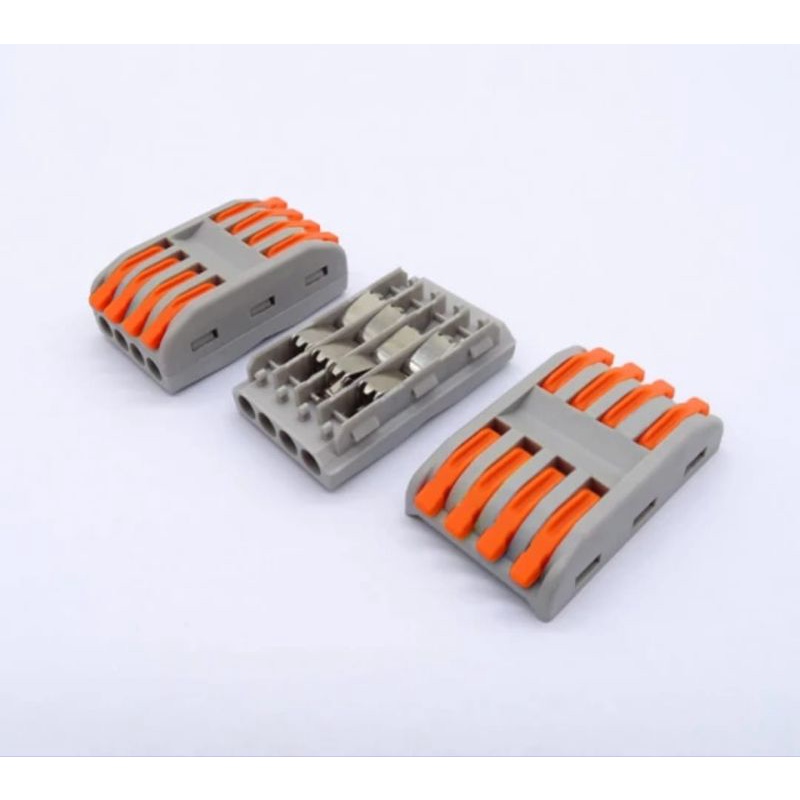

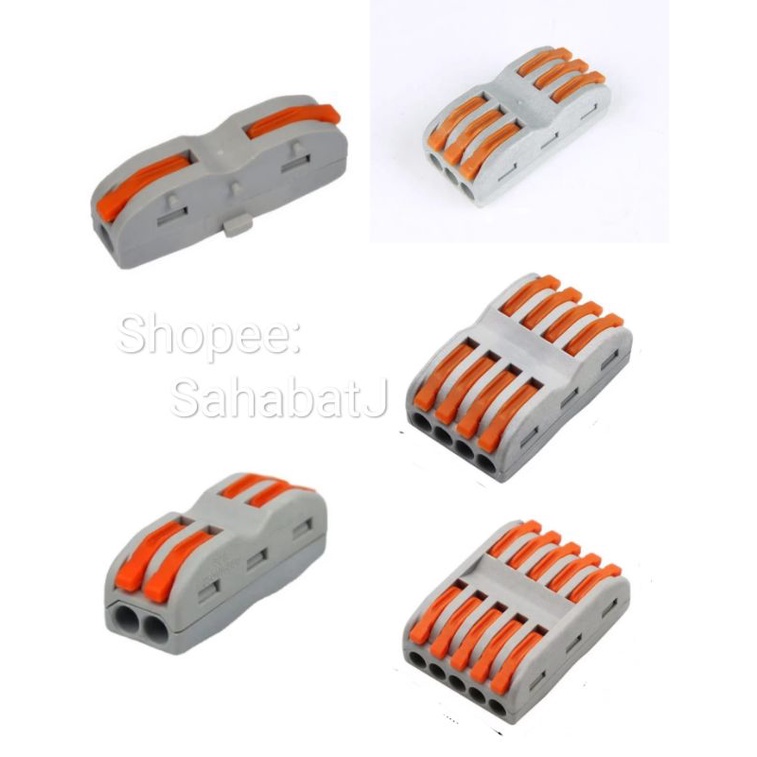

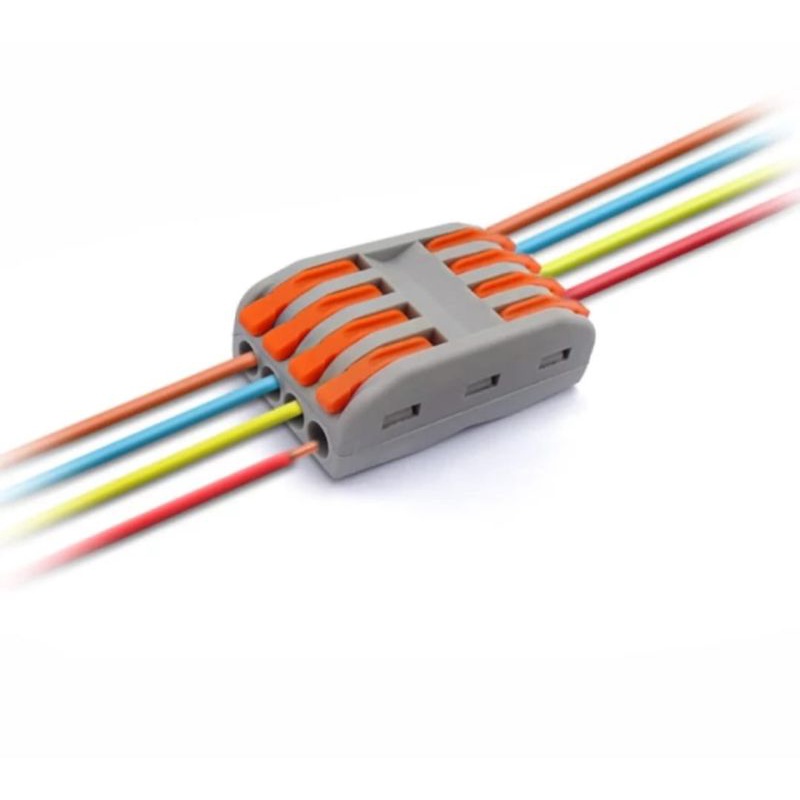

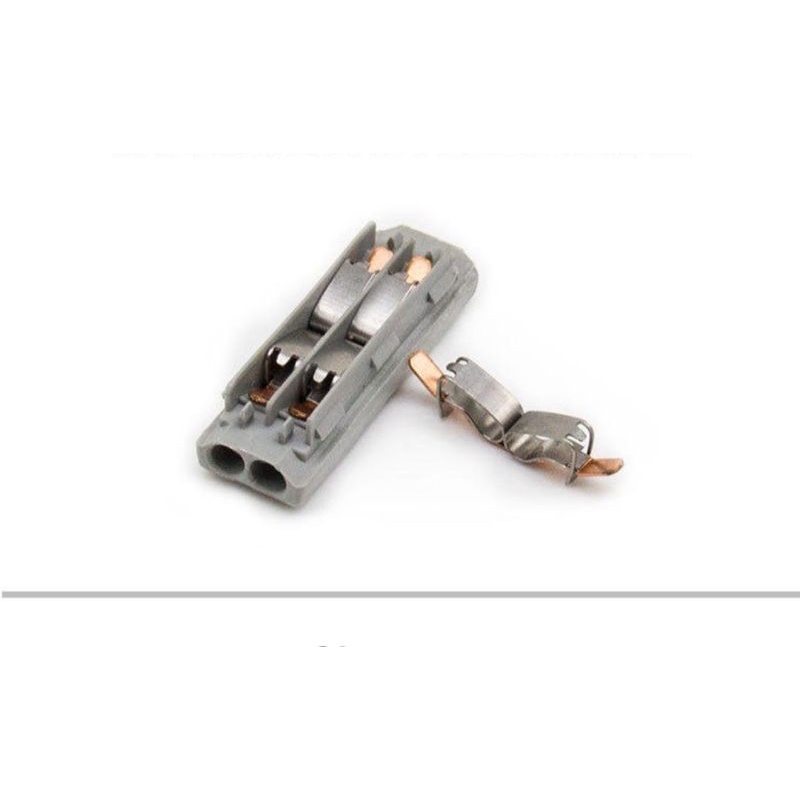

Gambar produk
