Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin

Elektronik > Kelistrikan > Kelistrikan Lainnya > Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin

Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin

Harga Tertera untuk 1 Pcs

Terminal ini bisa di sambung jadi sejajar
Misalnya butuh terminal 8 pin , bisa gunakan 2 pcs Terminal 4 pin ini.

Rated Voltage: 300V
rated Current: 20A
Pitch: 8.5mm
isulation Resistance: 500Mega/500V
Withstanding Voltage: AC1500V/1Min
Wire range: 22 - 12 AWG
Temp.Range: ~40c - + 105c

Catatan: Produk ini adalah produk import dan belum pernah dipakai, hanya dilepas (desolder) dari unit utama.

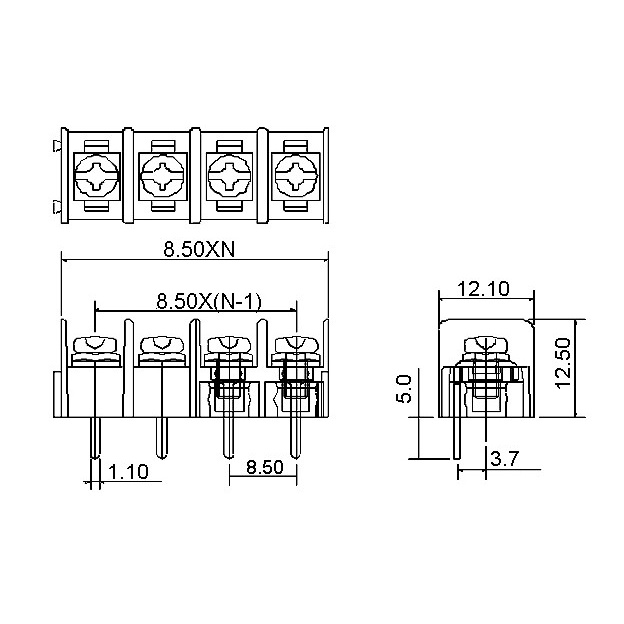

Gambar produk

Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
Terminal Block PCB KF-8500-4P 4Pin 8.5mm Pitch Connector Screw 4 Pin
