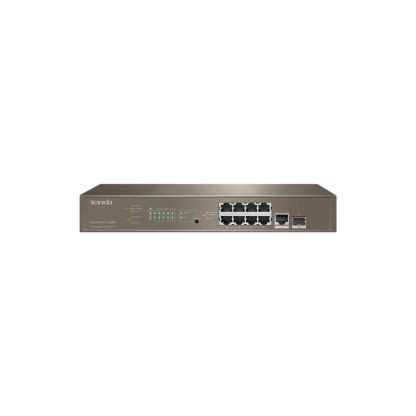

Tenda TEG5310P-8-150W L3 managed PoE switch

Detail Tenda TEG5310P-8-150W L3 managed PoE switch

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

Model
TEG5310P-8-150W
Standar Jaringan
IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED
One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device
One PoE mode converting LED indicator for each device
One PoE Max LED indicator for each device
One Power LED indicator for each device
One SYS LED indicator for each device
Antarmuka
8 x 10/100/1000 Base-T Ethernet ports (Data/Power)
1 x 10/100/1000 Base-T Ethernet ports (Data)
1 x 1000 Base-X SFP ports (Data)
Fan Quantity
NA
PoE budget
Lightning protection for ports: ≥6kV (common mode)
Lightning protection for power: ≥6kV (common mode), ≥4kV (differential mode)
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Mode Pengalihan
Store-and-forward
Kapasitas Sakelar
20Gbps
Tingkat Pengalihan Paket
14.9Mpps
Packet forwarding rate
12Mb
Tabel Alamat MAC
16K
Rangka Jumbo
10K
Buffer
Support
PoE power supply
Single port: AF: 15.4W, AT: 30W
Whole device: 130W
Tegangan masuk
100-240V AC 50/60Hz
Konsumsi Daya Listrik
Full load: ＜160W
Empty load: ＜12W
Ukuran
294 mm x 179.6 mm x 44 mm(L*W*H)
VSWR
Desktop mounting
Rack mounting (13" 1U)
Wall mounting
Energy Efficient
Support
Lingkungan
Operating temperature: 0°C - 40℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Gambar produk
